Hydro:Evolved User Manual

From the DOORS menu, scroll and select Disable On HA.

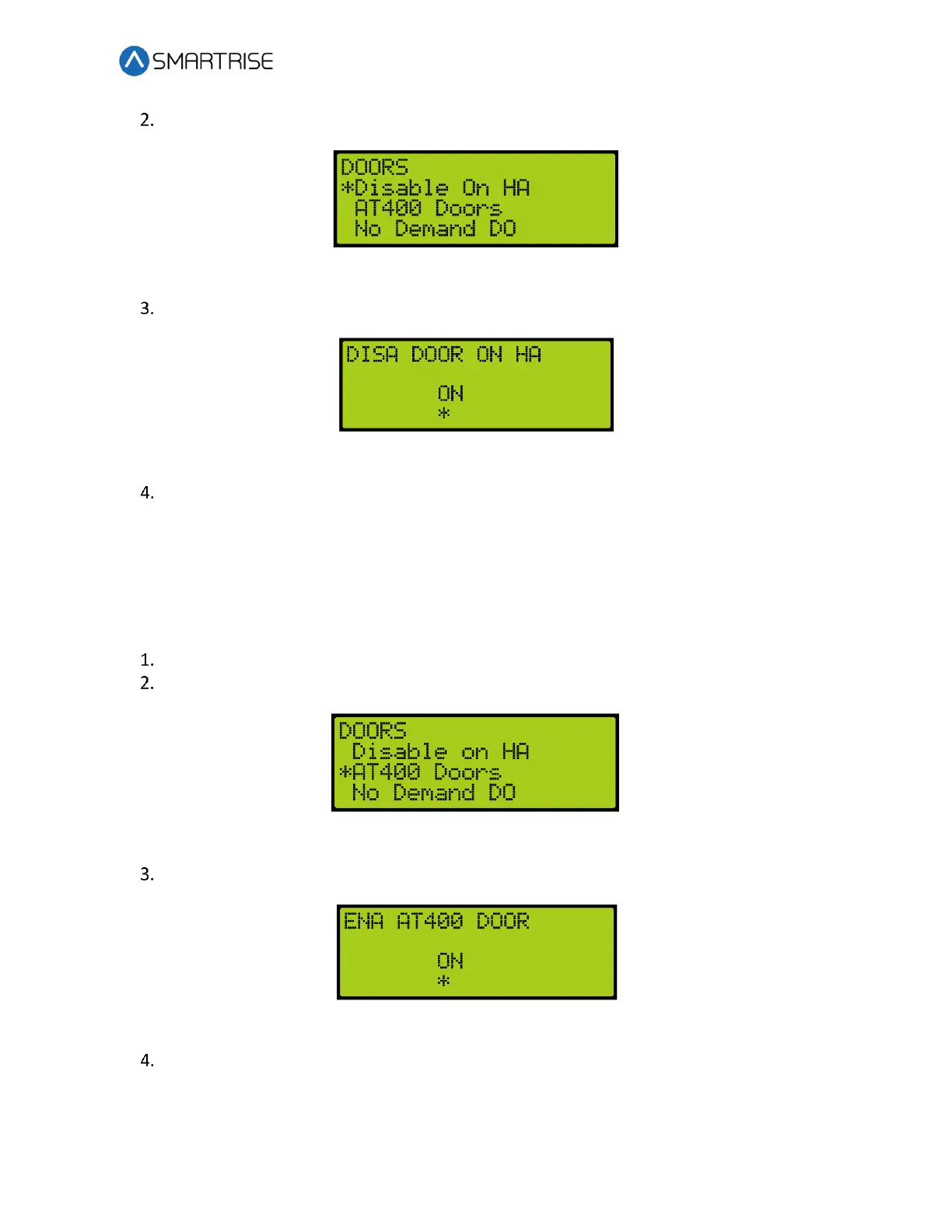

Figure 208: DOORS Menu – Disable On HA

From the DISABLE DOOR ON HA menu, scroll and select ON to disable all door outputs.

Figure 209: DISABLE DOOR ON HA Menu

Scroll right and press Save.

14.16 AT400 Doors

If job is configured with an AT400 door operator, this option needs to be enabled.

The following procedure describes how to enable AT400 interface.

Navigate to MAIN MENU | SETUP | DOOR SETUP. See Figure 55.

From the DOORS menu, scroll and select AT400 Doors.

Figure 210: DOORS Menu – AT400 Doors

From the ENABLE AT400 DOOR menu, scroll and select ON.

Figure 211: ENABLE AT400 DOOR Menu

Scroll right and press Save.
