From the MAIN SMOKE menu, scroll and select Flash Fire Hat.

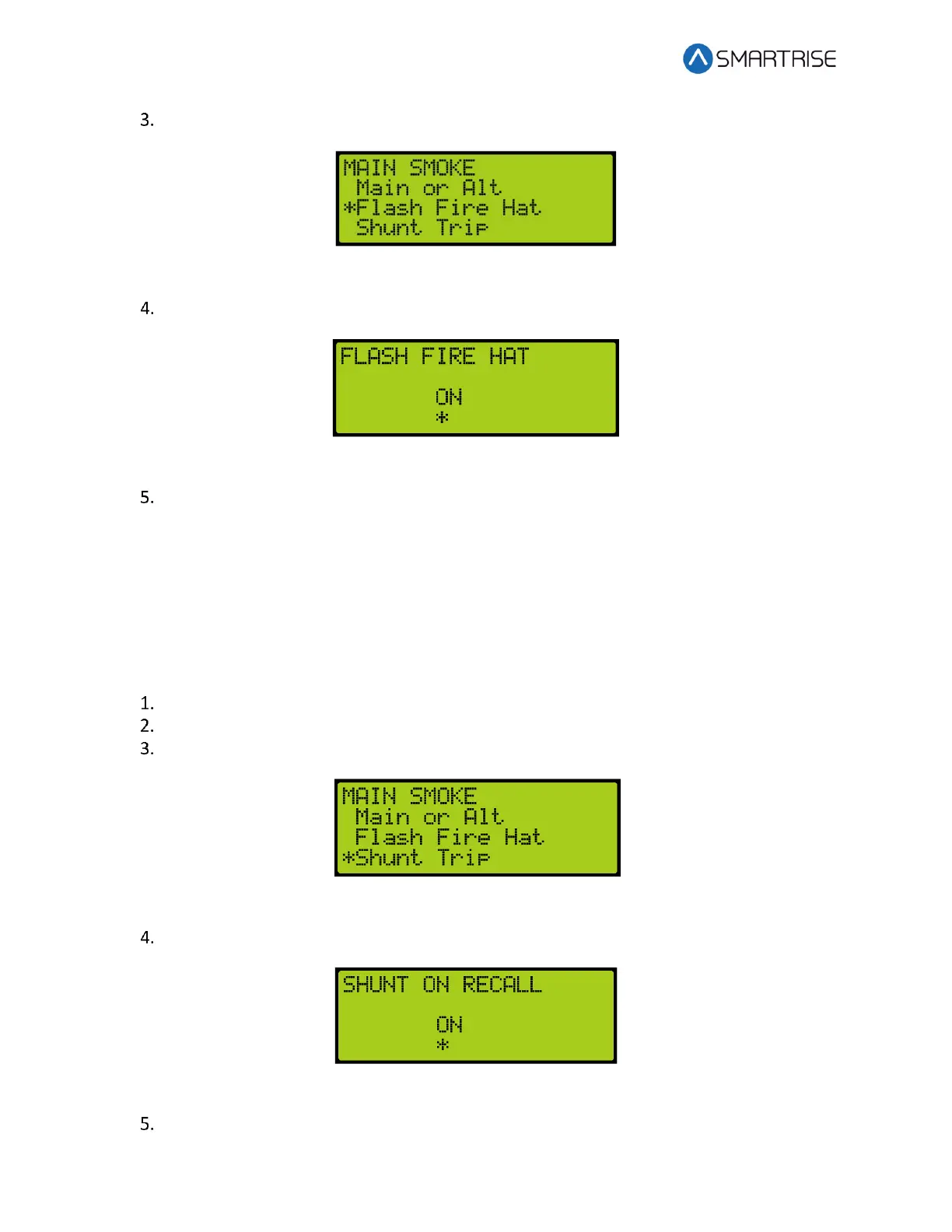

Figure 475: MAIN SMOKE Menu – Flash Fire Hat

From the FLASH FIRE HAT menu, scroll and select ON.

Figure 476: FLASH FIRE HAT Menu

Scroll right and press Save.

31.3.3.3 Shunt Trip

A shunt output is designed to trip a breaker shutting off the main power to the controller in

case of a fire in the main lobby.

The following procedure describes how to set up the parameters in case smoke is detected in

the main lobby.

Navigate to MAIN MENU | SETUP | FIRE. See Figure 56.

From the FIRE SERVICE menu, scroll and select Main Smoke. See Figure 472.

From the MAIN SMOKE menu, scroll and select Shunt Trip.

Figure 477: MAIN SMOKE Menu – Shunt Trip

From SHUNT ON RECALL menu, scroll and select ON.

Figure 478: SHUNT ON RECALL Menu

Scroll right and press Save.
