From the USE ALT FLOOR menu, scroll and select if the main or alternate floor is
configured for main smoke. See Figure 474.
Scroll right and press Save.
31.3.9.2.2 Flash Fire Hat
The following procedure describes how to flash the fire hat when the alternate hoistway smoke
is triggered.
Navigate to MAIN MENU | SETUP | FIRE. See Figure 56.
From the FIRE SERVICE menu, scroll and select Alt. Machine Room. See Figure 498.
From the ALT MACHINE ROOM menu, scroll and select HW 2 Smoke. See Figure 501.
From the HOISTWAY 2 SMOKE menu, scroll and select Flash Fire Hat.

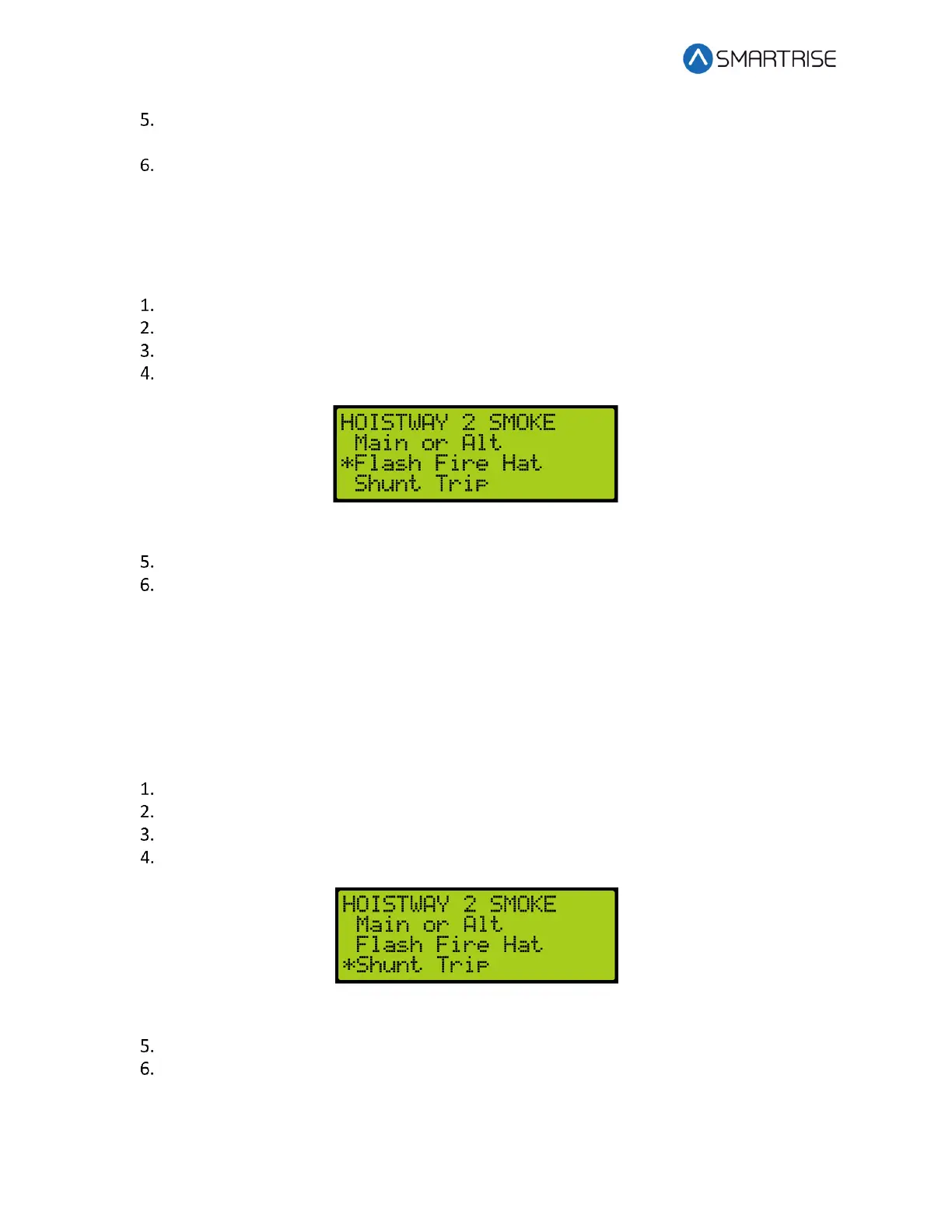

Figure 503: HOISTWAY 2 SMOKE Menu – Flash Fire Hat
From the FLASH FIRE HAT menu, scroll and select ON. See Figure 476.
Scroll right and press Save.
31.3.9.2.3 Shunt Trip
A shunt output is designed to trip a breaker shutting off the main power to the controller in
case of a fire in the machine room.
The following procedure describes how to set up shunt trip when the alternate hoistway smoke
is triggered.
Navigate to MAIN MENU | SETUP | FIRE. See Figure 56.
From the FIRE SERVICE menu, scroll and select Alt. Machine Room. See Figure 498.
From the ALT MACHINE ROOM menu, scroll and select HW 2 Smoke. See Figure 501.
From the HOISTWAY 2 SMOKE menu, scroll and select Shunt Trip.
Figure 504: HOISTWAY 2 SMOKE Menu – Shunt Trip
From the SHUNT ON RECALL menu, scroll and select ON. See Figure 478.
Scroll right and press Save.
