2.1.11 Hall Lock Connections
WARNING
ALL CONNECTIONS ON THIS TERMINAL BLOCK ARE HIGH VOLTAGE. DISCONNECT POWER TO
THE CONTROLLER BEFORE WIRING THESE TERMINALS.
LRT Terminal – Terminates the rear top lock. The primary side of the lock is connected to L120
and the secondary side is wired back to this terminal.
LRM Terminal – Terminates the rear middle locks. The primary side of the lock is connected to
L120 and the secondary side is wired back to this terminal.
LRB Terminal – Terminates the rear bottom lock. The primary side of the lock is connected to
L120 and the secondary side is wired back to this terminal.
LFT Terminal – Terminates the front top lock. The primary side of the lock is connected to L120
and the secondary side is wired back to this terminal.
LFM Terminal – Terminates the front middle locks. The primary side of the lock is connected to
L120 and the secondary side is wired back to this terminal.
LFB Terminal – Terminates the front bottom lock. The primary side of the lock is connected to
L120 and the secondary side is wired back to this terminal.
L120 Terminals – Internally fused source for all lock voltages.

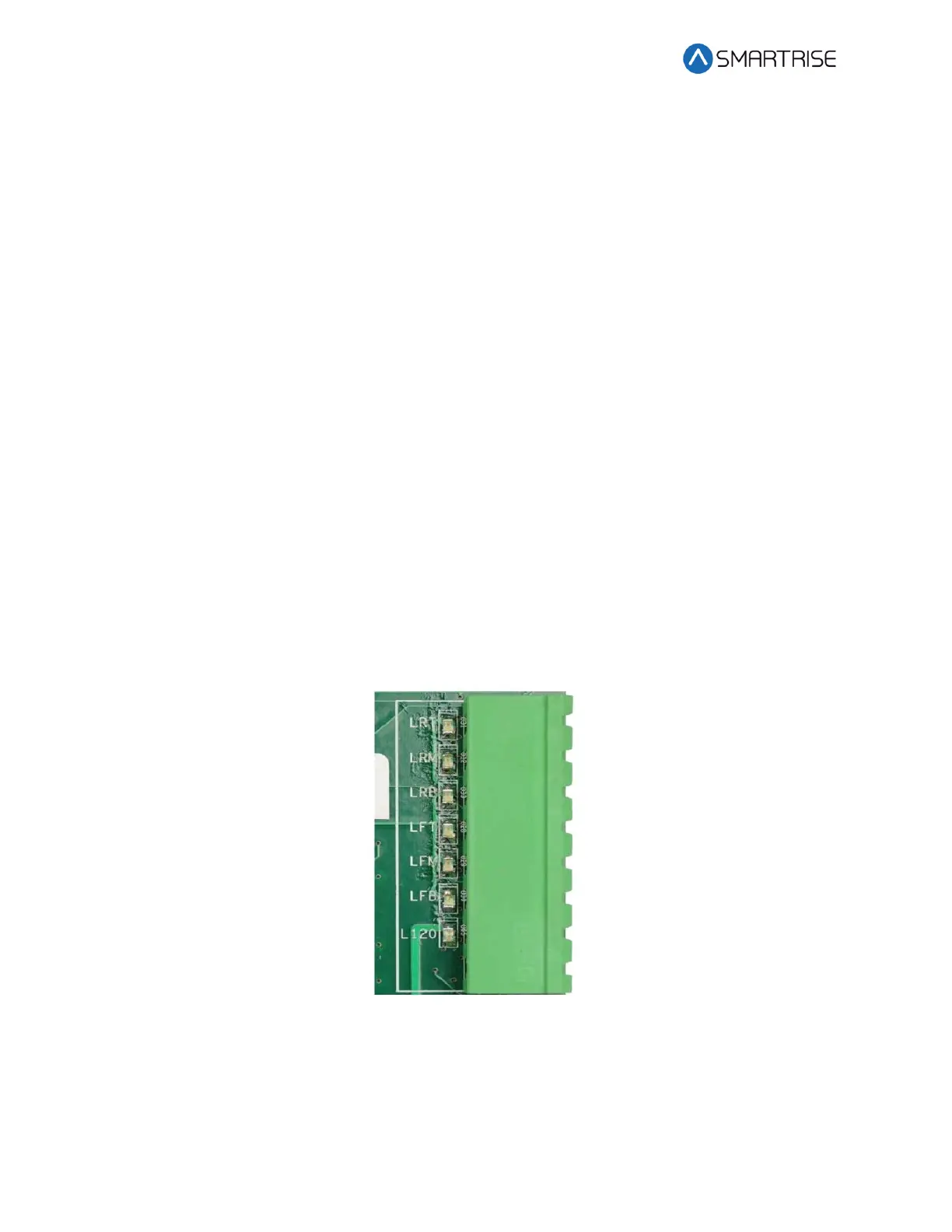

Figure 21: Hall Lock Connector
2.1.12 Inspection Controls
ENABLE Button – Enables power to the direction commands for inspection operation. This
button must be pressed prior to issuing a direction to move on inspection.
