Hydro:Evolved User Manual

Verify the inspection speed. The value of the inspection speed can be set from 0 to 150

fpm. If the value is set > 150 fpm, the controller will fault until the parameter is adjusted

to a value ≤ 150 fpm. If the inspection speed is less than the contract speed the car will

move at low speed depending on how the leveling valves are set. If the inspection speed

matches the contract speed the car will move with at high speed.

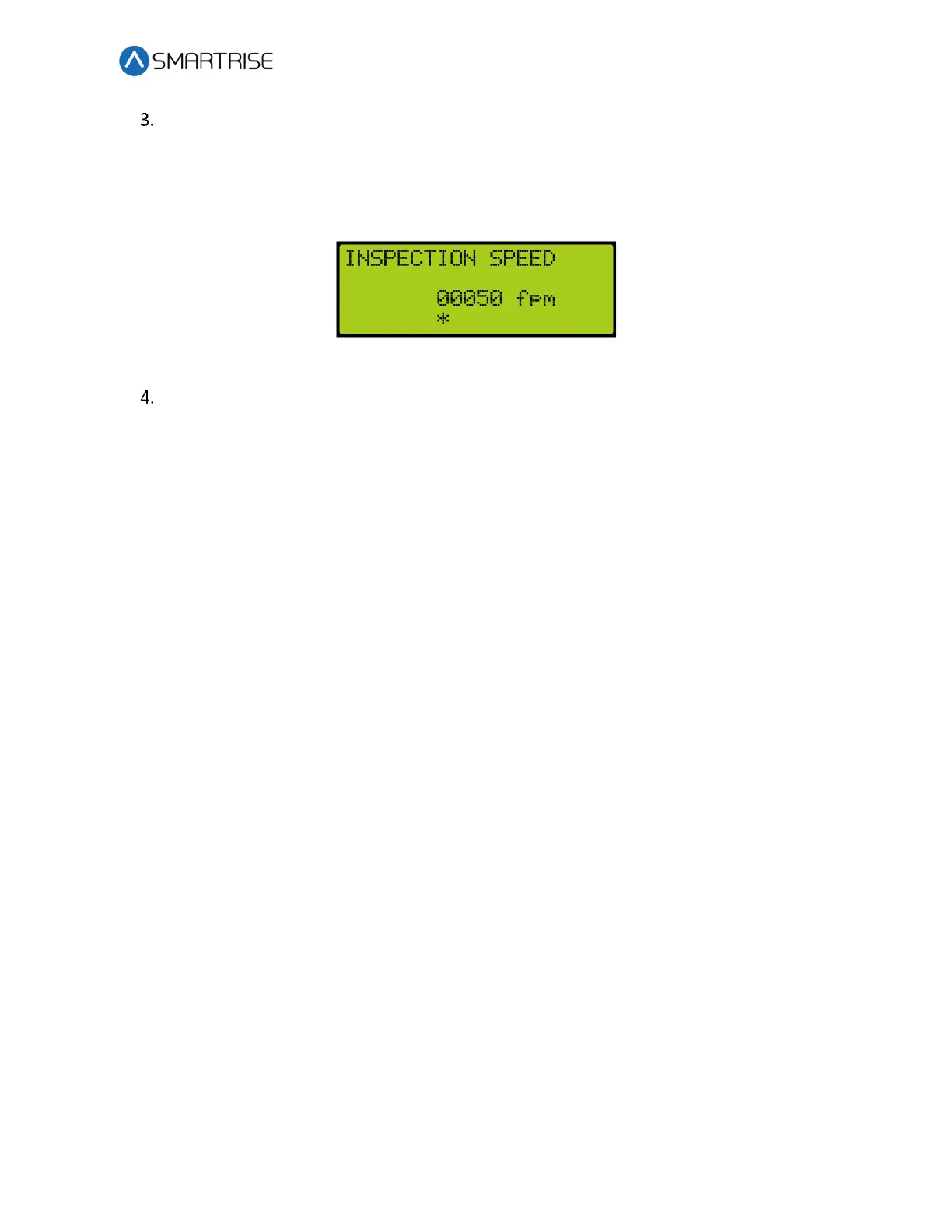

Figure 78: INSPECTION SPEED Menu

Scroll right and press Save.
