Engine General Information and Diagnosis: 1A-31
DTC “C12” (P0335): CKP Sensor Circuit Malfunction
B823H11104010
Detected Condition and Possible Cause

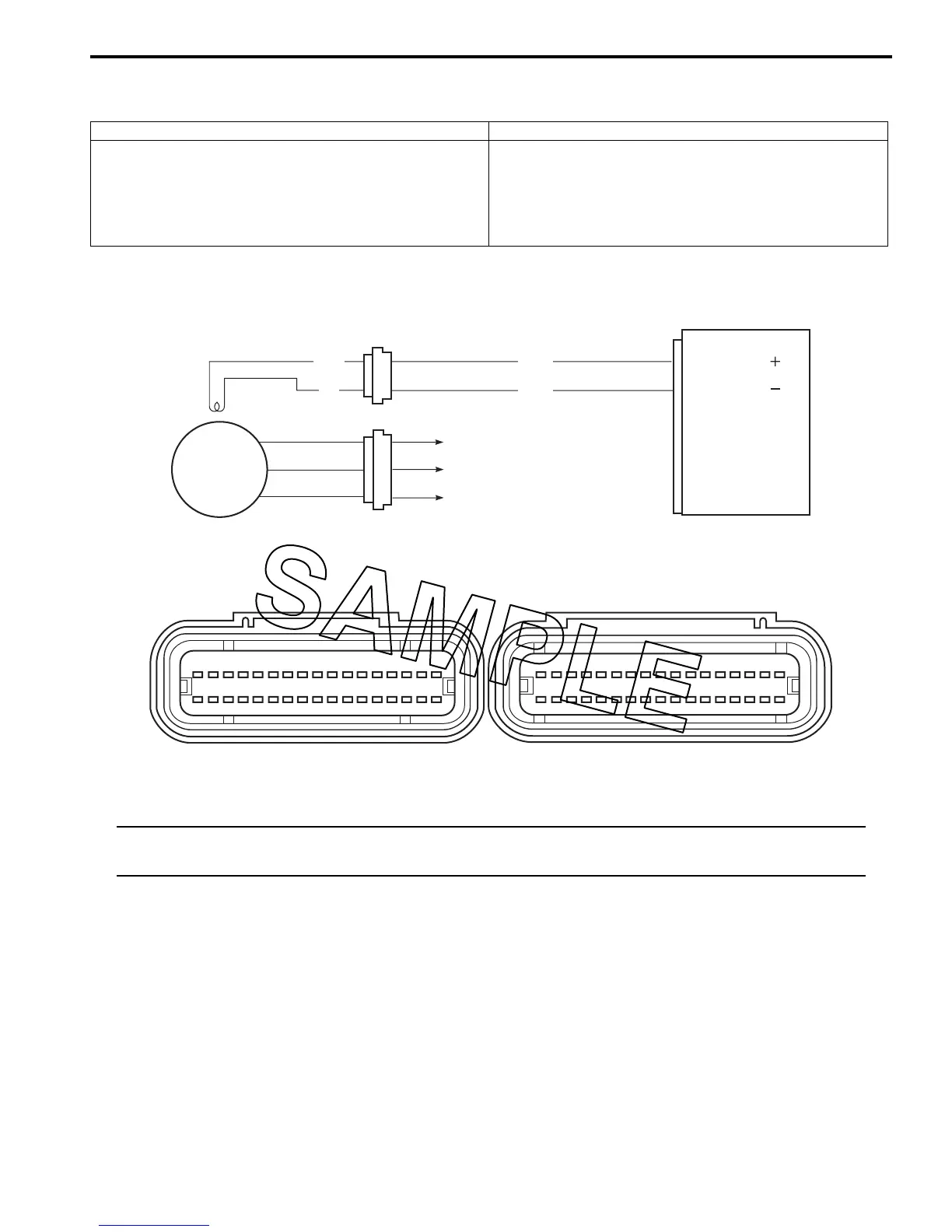

Wiring Diagram
ECM coupler (Harness side)
Troubleshooting
NOTE
After repairing the trouble, clear the DTC using SDS tool. Refer to “Use of SDS Diagnosis Reset
Procedures (Page 1A-14)”.
Detected Condition Possible Cause
The signal does not reach ECM for 4 sec. or more, after
receiving the starter signal.
• Metal particles or foreign material being stuck on the
CKP sensor and rotor tip.
• CKP sensor circuit open or short.
• CKP sensor malfunction.
• ECM malfunction.
Generator
ECM
CKP sensor
CKPS
To regulator/rectifier
CKPS
Bl
G/Bl
Bl
G
14
31
I823H1110008-05
1 2 3 4 5 6 7 8 9 10 11121314151617
18
18 19 20 21 22 23 26 2724 25 28 29 30 31 32 33 34
35
36
37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
53 54 55 56 57 58 59 60 61 62 63 6764 65 66 68
To Next Page
