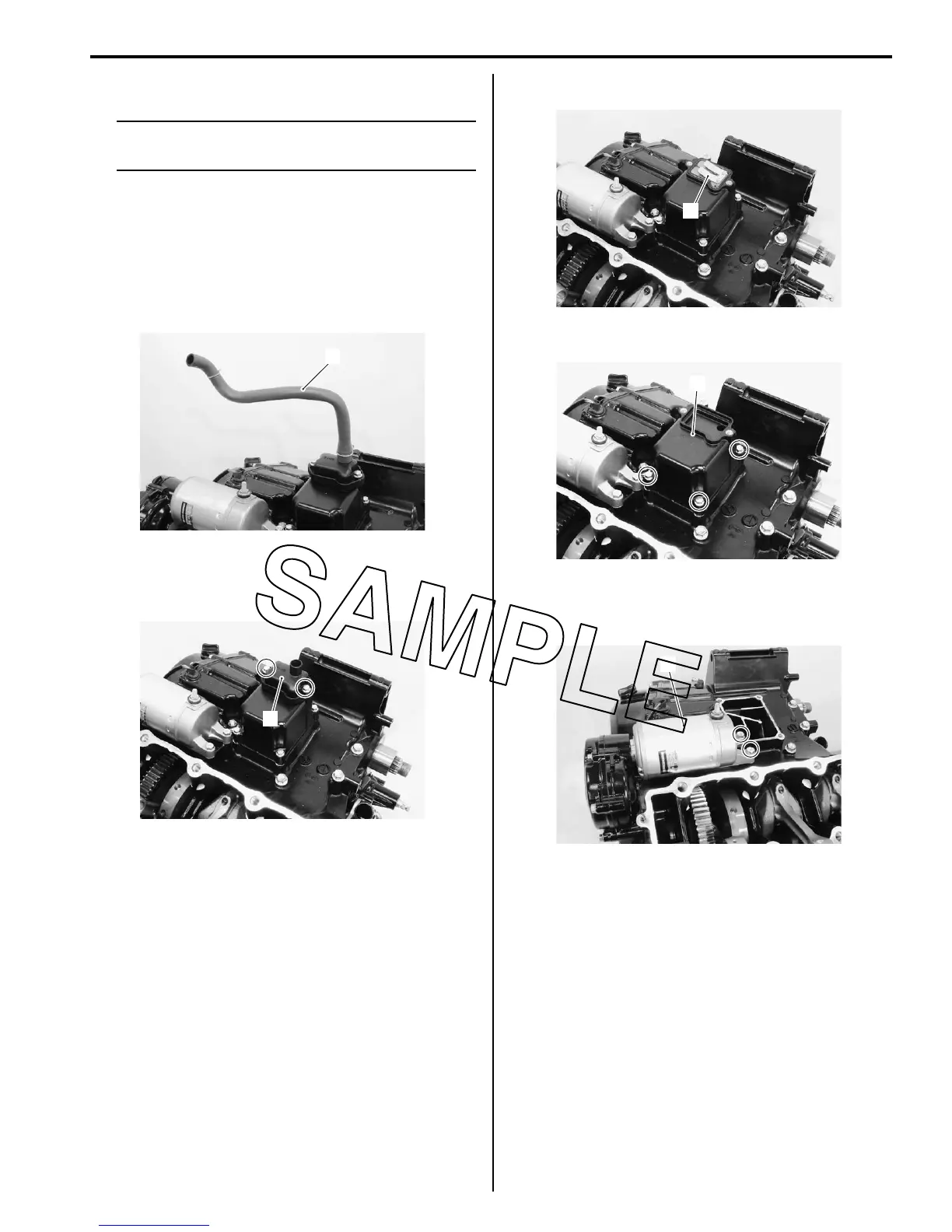

Engine Mechanical: 1D-64
Engine Bottom Side Disassembly
B823H11406034
NOTE
The crankcase must be separated to service
the crankshaft and conrod.
1) Remove the engine assembly from the frame. Refer
to “Engine Assembly Removal (Page 1D-19)”.
2) Remove the engine top side. Refer to “Engine Top
Side Disassembly (Page 1D-28)”.
Crankcase Breather (PCV) Hose
Disconnect the crankcase breather (PCV) hose (1).
Crankcase Breather (PCV) Hose Cover
1) Remove the reed valve cover (1).
2) Remove the reed valve (2).
3) Remove the crankcase breather (PCV) cover (3).
Starter Motor
Remove the starter motor (1).
1
I823H1140405-01
1
I823H1140406-01
2
I823H1140407-01
3
I823H1140408-01
1
I823H1140409-01
To Next Page
