Engine Mechanical: 1D-10

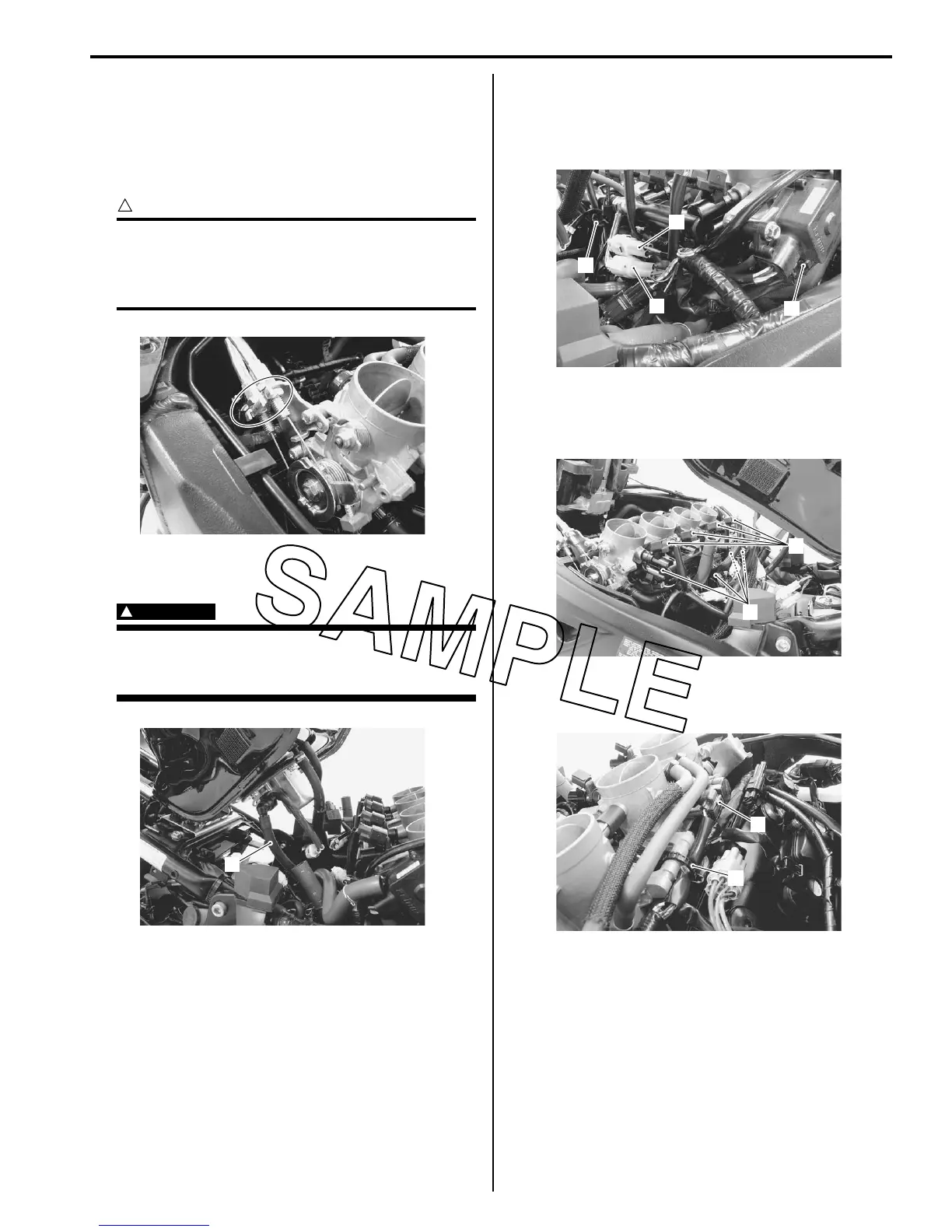

Throttle Body Removal and Installation
B823H11406010
Removal
1) Remove the air cleaner box. Refer to “Air Cleaner
Box Removal and Installation (Page 1D-6)”.
2) Disconnect the throttle cables from their drum.
CAUTION
!
After disconnecting the throttle cables, do
not snap the throttle valves from full open to
full close. It may cause damage to the throttle
valves and throttle body.
3) Place a rag under the fuel feed hose (1) and
disconnect the fuel feed hose from the fuel pump.
WARNING
!
For California models, drain fuel from the fuel
tank before disconnect the fuel feed hose to
prevent fuel leakage.
4) Disconnect the TP sensor lead wire coupler (2), STP
sensor lead wire coupler (3) and STVA lead wire
coupler (4).
5) Remove the clamp (5).
6) Disconnect secondary fuel injector lead wire
couplers (6) and primary fuel injector lead wire
couplers (7).
7) Disconnect the ISC valve lead wire coupler (8).
8) Remove the clamp (9).
I823H1140517-01
1
I823H1140518-01
3
5
4
2
I823H1140519-01
6
7
I823H1140520-01
8
9
I823H1140521-01
To Next Page
