Engine Cooling System: 1F-7

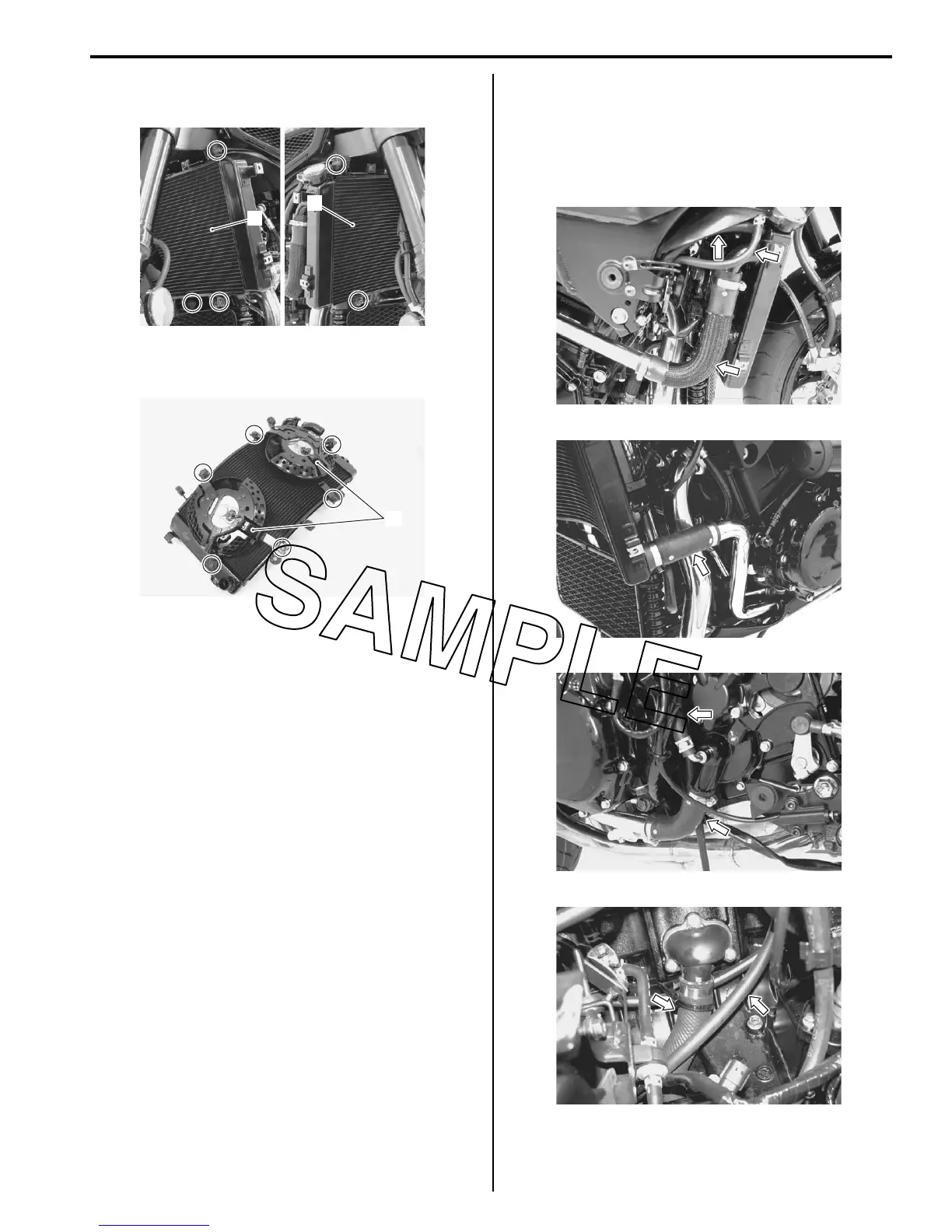

5) Remove the radiator assembly (9) by removing the
bolts.
6) Remove the cooling fan motors (10) from the
radiator.
Installation
Install the radiator in the reverse order of removal. Pay
attention to the following points:
• Connect the radiator hoses securely. Refer to “Water
Hose Routing Diagram (Page 1F-3)”.
• Pour engine coolant. Refer to “Cooling System
Inspection in Section 0B (Page 0B-13)”.
• Bleed air from the cooling circuit. Refer to “Cooling
System Inspection in Section 0B (Page 0B-13)”.
Water Hose Inspection
B823H11606005
Inspect the water hoses in the following procedures:
1) Remove the frame body covers and under cowl.
Refer to “Exterior Parts Removal and Installation in
Section 9D (Page 9D-14)”.
2) Lift and support the fuel tank. Refer to “Fuel Tank
Removal and Installation in Section 1G (Page 1G-
10)”.
3) Check the water hoses for crack, damage or engine
coolant leakage. If any defect is found, replace the
radiator hose with a new one.
4) Any leakage from the connecting section should be
corrected by proper tightening. Refer to “Water Hose
Routing Diagram (Page 1F-3)”.
5) After finishing the water hose inspection, reinstall the
removed parts.
