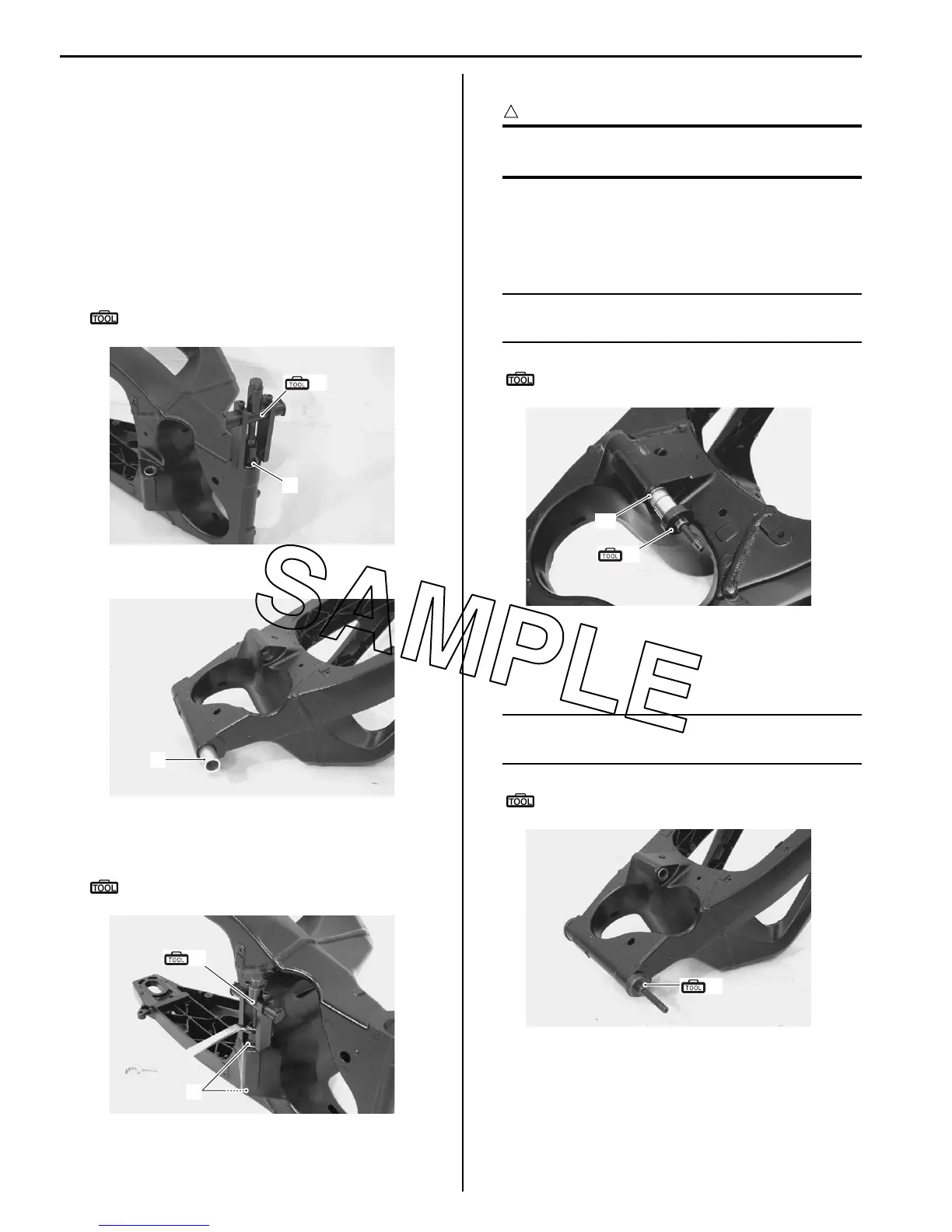

2C-12 Rear Suspension:
Swingarm Bearing Removal and Installation
B823H12306013
Removal
1) Remove the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation in Section
2D (Page 2D-11)”.
2) Remove the swingarm. Refer to “Swingarm /
Cushion Rod Removal and Installation (Page 2C-8)”.
3) Remove the swingarm pivot bearings (1) using the
special tool.
Special tool
(A): 09921–20240 (Bearing remover set)
4) Remove the center spacer (2).
5) Remove the swingarm cushion rod bearings (3)
using the special tools.
Special tool
(A): 09921–20240 (Bearing remover set)
Installation
CAUTION
!
The removed bearings must be replaced with
new ones.
1) Press the bearings into the swingarm cushion rod at
1 mm (0.04 in) depth “A” from the swingarm cushion
rod surface with the special tool and suitable size
socket wrench.
NOTE
When installing the bearing, stamped mark
on the bearing must face outside.
Special tool
(A): 09924–84521 (Bearing installer set)
2) Install the center spacer.
3) Press the bearings into the swingarm pivot with the
special tool.
NOTE
When installing the bearing, stamped mark
on the bearing must face outside.
Special tool
(B): 09941–34513 (Steering race installer)
1
(A)
I823H1230038-01
2
I823H1230039-01
(A)
3
I823H1230040-01
(A)
“A”
I823H1230046-02
(B)
I823H1230041-01
