Lighting Systems: 9B-10
Rear Combination Light Removal and
Installation
B823H19206007

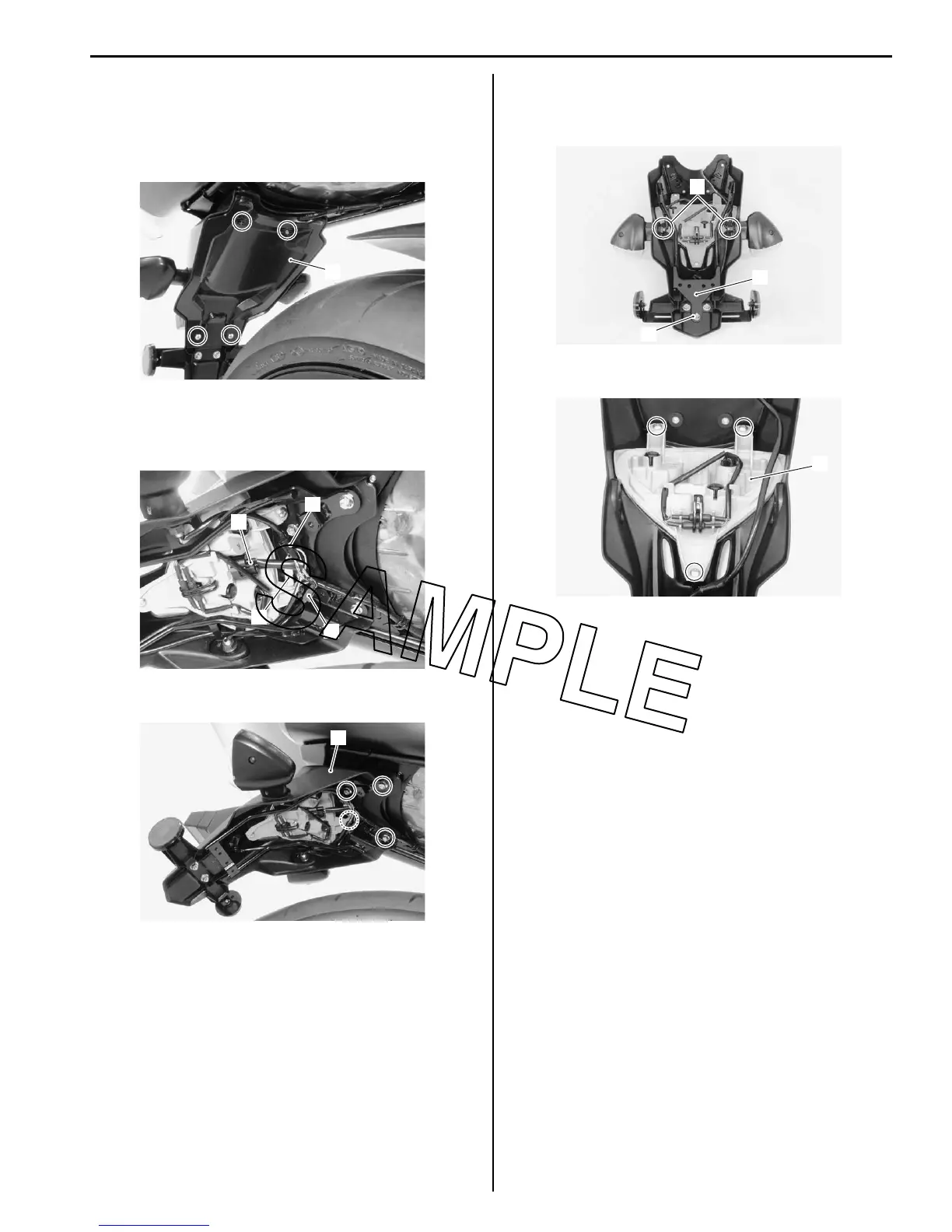

Removal
1) Remove the rear fender cover (1).
2) Disconnect the combination light coupler (2), license
plate light coupler (3) and turn signal light couplers
(4).
3) Remove the rear fender assembly (5).
4) Remove the turn signal mounting nuts (5) and
remove the rear fender bracket (6) by removing the
screw (7).
5) Remove the rear combination light (7).
1
I823H1920020-01
2
3
4
4
I823H1920021-02
5
I823H1920022-01
6
5
7
I823H1920023-03
7
I823H1920024-01
To Next Page
