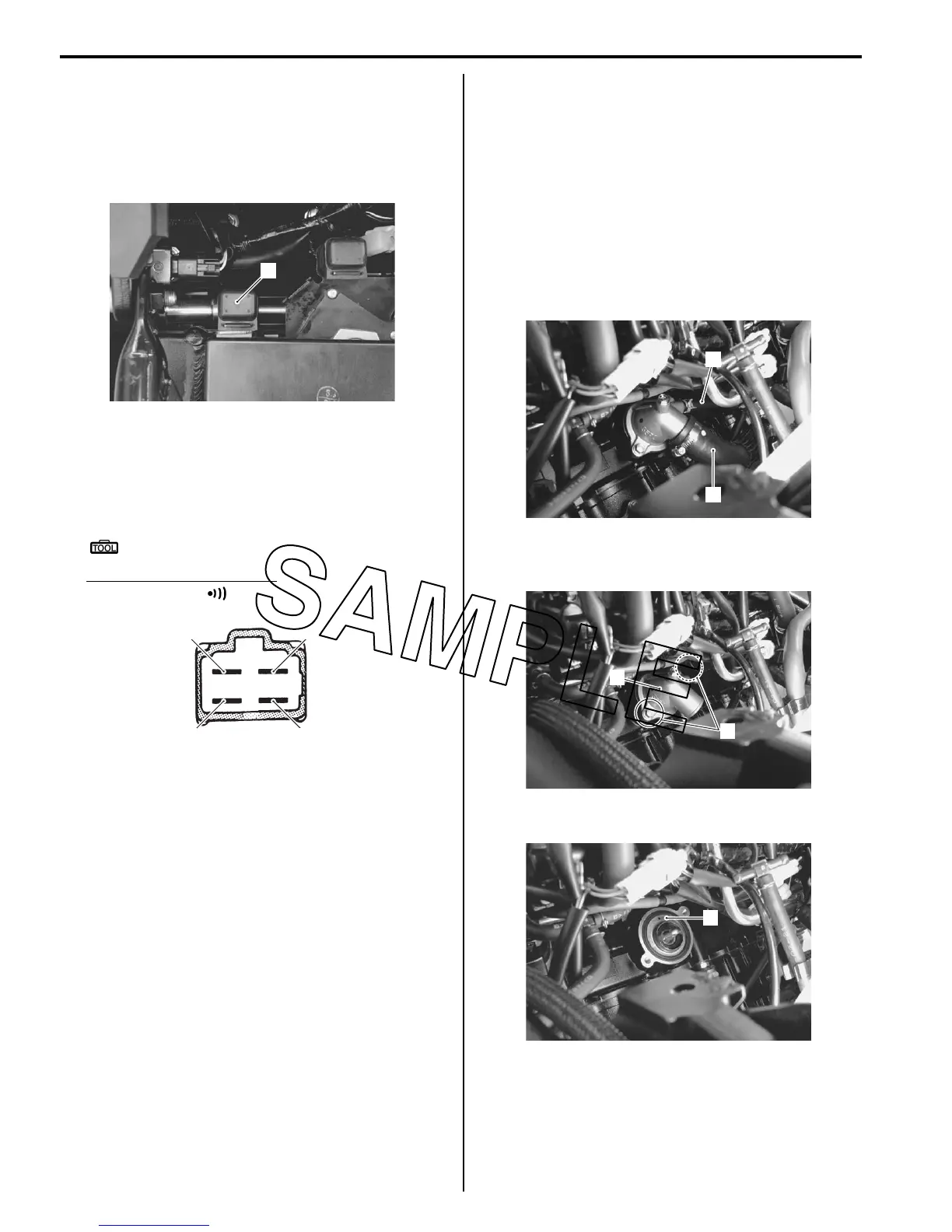

1F-10 Engine Cooling System:
Cooling Fan Relay Inspection
B823H11606010
Inspect the fan relay in the following procedures:
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation in Section 9D (Page 9D-14)”.
2) Remove the cooling fan relay (1).
3) First check the insulation between “A” and “B”
terminals with tester. Then apply 12 volts to “C” and
“D” terminals, (+) to “C” and (–) to “D”, and check the
continuity between “A” and “B”.
If there is no continuity, replace it with a new one.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication set
Continuity test ( )
4) Reinstall the removed parts.
ECT Sensor Removal and Installation
B823H11606011
Refer to “ECT Sensor Removal and Installation in
Section 1C (Page 1C-5)”.
ECT Sensor Inspection
B823H11606012
Refer to “ECT Sensor Inspection in Section 1C
(Page 1C-5)”.
Thermostat Cover / Thermostat Removal and
Installation
B823H11606013
Removal
1) Drain a small amount of engine coolant. Refer to
“Cooling System Inspection in Section 0B (Page 0B-
13)”.
2) Lift and support the fuel tank. Refer to “Fuel Tank
Removal and Installation in Section 1G (Page 1G-
10)”.
3) Disconnect the water air bleed hose (1) and cylinder
head outlet hose (2).
4) After removing of the thermostat cover bolts (3),
remove the thermostat cover (4).
5) Remove the thermostat (5).
1
I823H1160021-01
“A”
“B”
“C”
“D”
I718H1160006-03
1
2
I823H1160022-01
3
4
I823H1160023-01
5
I823H1160024-01
