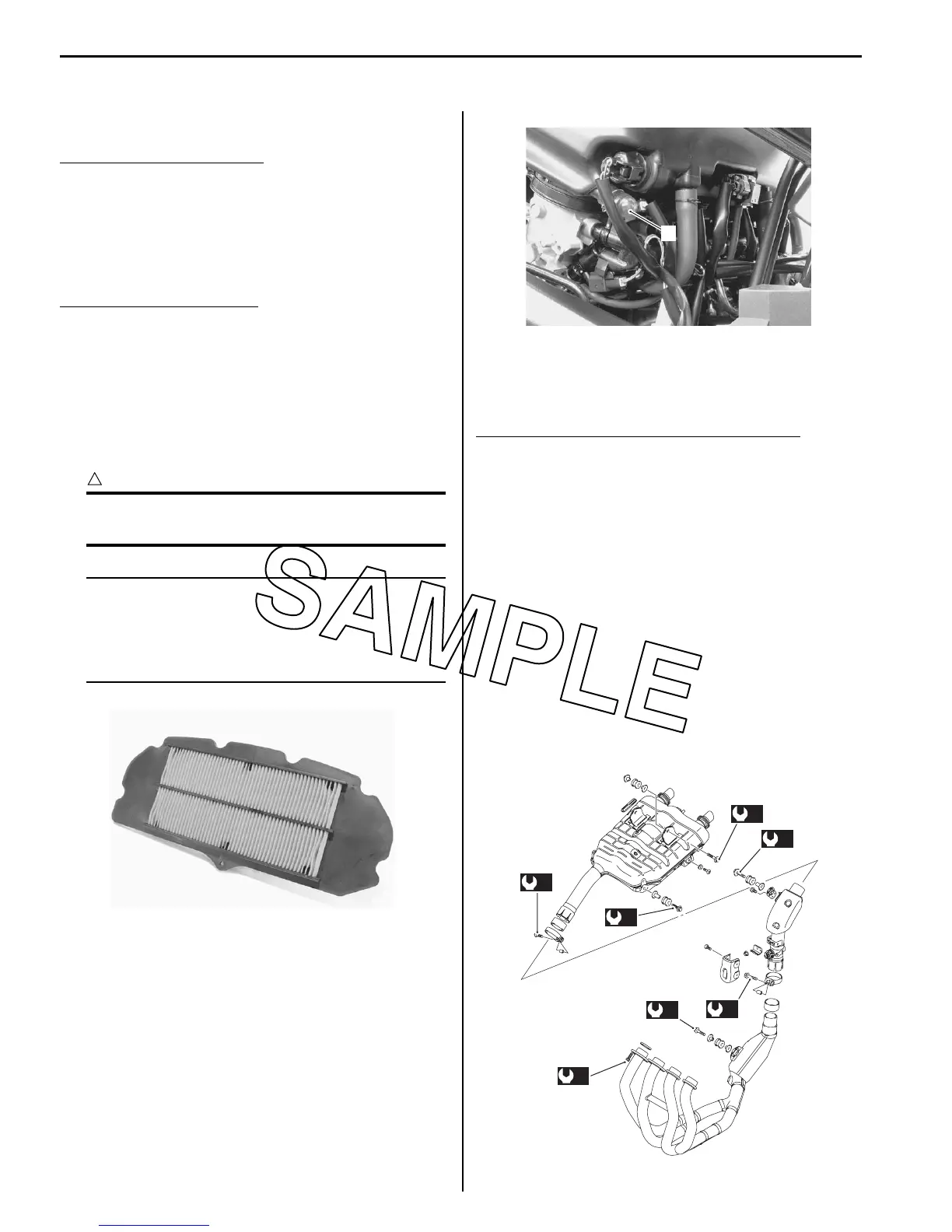

0B-3 Maintenance and Lubrication:
Repair Instructions
Air Cleaner Element Replacement
B823H10206001
Replace air cleaner element
Every 18 000 km (11 000 miles, 36 months)
Refer to “Air Cleaner Element Removal and Installation
in Section 1D (Page 1D-6)”.
Air Cleaner Element Inspection
B823H10206002
Inspect air cleaner element
Every 6 000 km (4 000 miles, 12 months)
Inspection
1) Remove the air cleaner element. Refer to “Air
Cleaner Element Removal and Installation in Section
1D (Page 1D-6)”.
2) Inspect the air cleaner element for clogging. If it is
clogged with dirt, replace it with a new one.
CAUTION
!
Do not blow the air cleaner element with
compressed air.
NOTE
If driving under dusty conditions, replace the
air cleaner element more frequently. Make
sure that the air cleaner is in good condition
at all times. The life of the engine depends
largely on this component.
3) After finishing the air cleaner element inspection,
reinstall the removed parts.
4) Drain water from the air cleaner box by removing the
drain plug (1).
5) Reinstall the drain plug.
Exhaust Pipe Bolt and Muffler Bolt Inspection
B823H10206003
Tighten exhaust pipe bolts and muffler bolts
Initially at 1 000 km (600 miles, 2 months) and every
12 000 km (7 500 miles, 24 months) thereafter
Check the exhaust pipe bolts and muffler bolts to the
specified torque.
Tightening torque
Exhaust pipe bolt (a): 23 N·m (2.3 kgf-m, 16.5 lb-ft)
Exhaust pipe mounting bolt (b): 25 N·m (2.5 kgf-m,
18.0 lb-ft)
Muffler connecting bolt (c): 23 N·m (2.3 kgf-m, 16.5
lb-ft)
Muffler joint mounting bolt (d): 23 N·m (2.3 kgf-m,
16.5 lb-ft)
Muffler mounting bolt (Front) (e): 23 N·m (2.3 kgf-
m, 16.5 lb-ft)
Muffler mounting bolt (Rear) (f): 25 N·m (2.5 kgf-m,
18.0 lb-ft)
I823H1020002-01
1
I823H1020003-01
(a)
(b)
(c)
(f)
(d)
(c)
(e)
I823H1020068-01
To Next Page
