Charging System: 1J-9

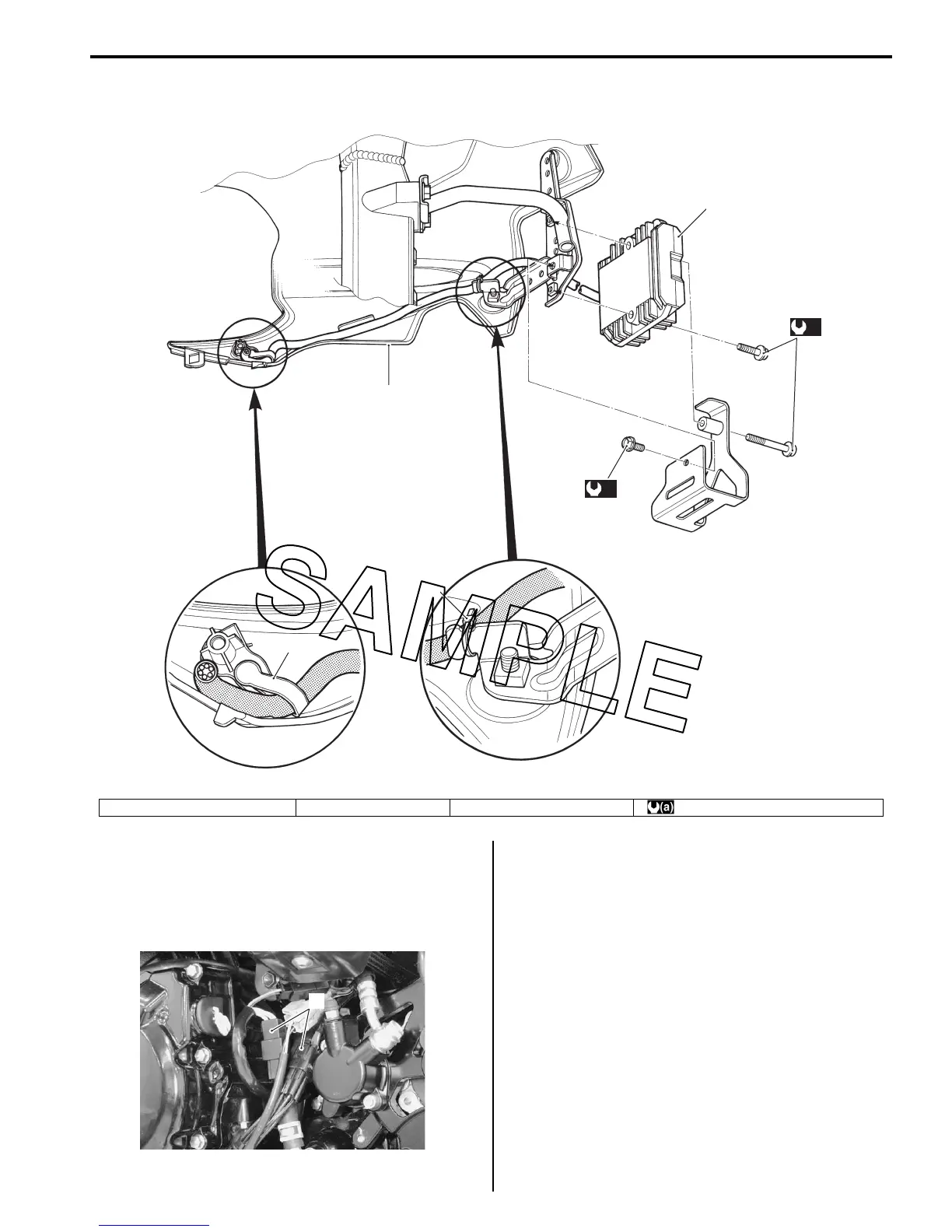

Regulator / Rectifier Construction
B823H11A06005
Regulator / Rectifier Removal and Installation
B823H11A06011
Removal
1) Turn the ignition switch OFF.
2) Disconnect the regulator/rectifier couplers (1).
3) Remove the under cowling. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
14)”.
4) Remove the regulator/rectifier as shown in the
regulator/rectifier construction. Refer to “Regulator /
Rectifier Construction (Page 1J-9)”.
Installation
Install the regulator/rectifier as shown in the regulator/
rectifier construction. Refer to “Regulator / Rectifier
Construction (Page 1J-9)”.
3
2
2
(a)
(a)
1
I823H11A0018-01
1. Regulator/rectifier 2. Clamp 3. Under cowling : 10 Nm (1.0 kgf-m, 7.0 lb-ft)
1
I823H11A0019-01
To Next Page
