6B-5 Steering / Handlebar:

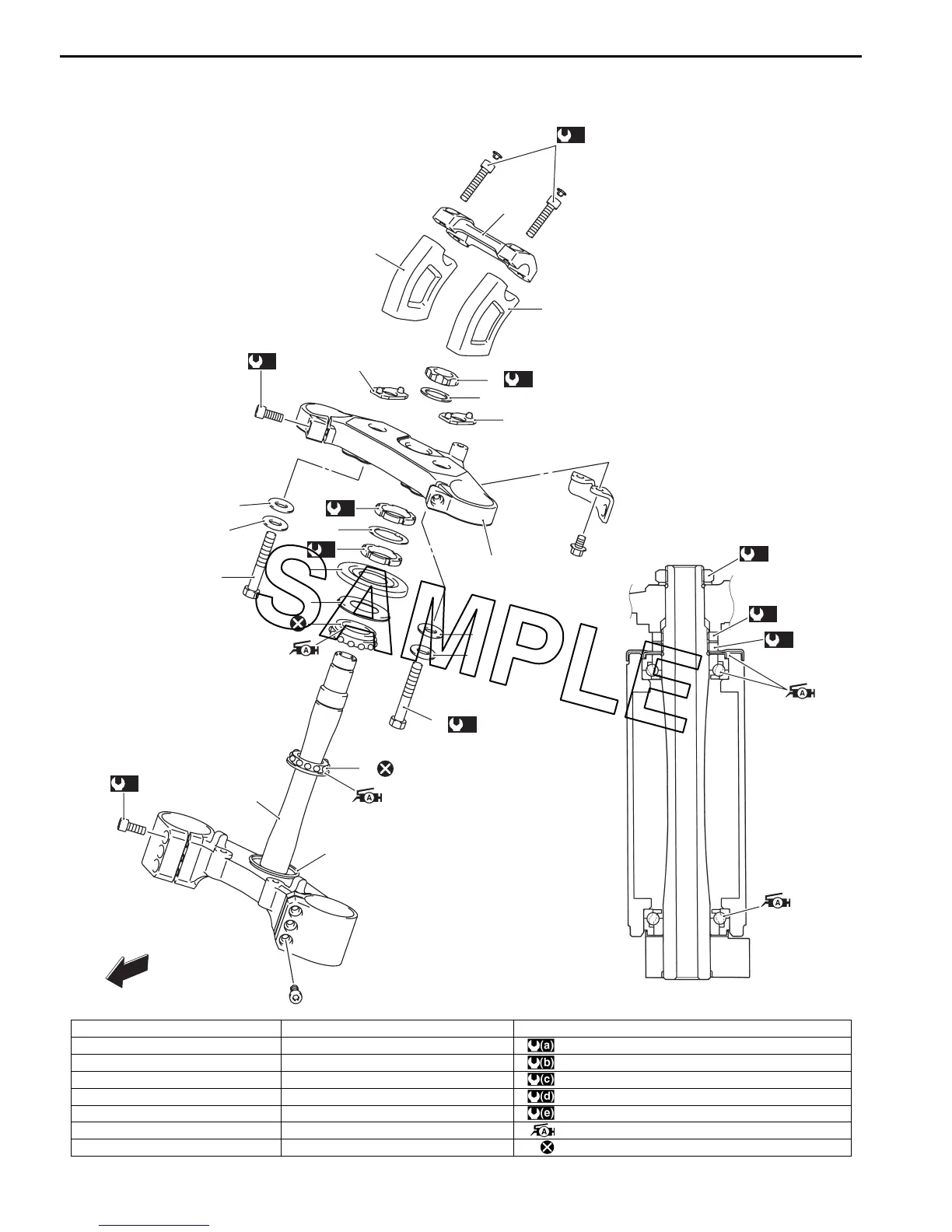

Steering Components
B823H16206005
(b)
(c)
(d)
(a)
1
2
3
3
(b)
4
15
5
5
(a)
6
(c)
10
11
(d)
12
13
14
15
7
8
9
7
8
(e)
9
17
16
14
(a)
FWD
FWD
I823H1620033-05
1. Handlebar holder bolt 9. Handlebar holder mounting bolt 17. Steering stem lower bracket
2. Handlebar holder (Upper) 10. Steering stem lock-nut : 23 Nm (2.3 kgf-m, 16.5 lb-ft)
3. Handlebar holder (Lower) 11. Washer : 90 Nm (9.0 kgf-m, 65.0 lb-ft)
4. Steering stem head nut 12. Steering stem nut : 80 Nm (8.0 kgf-m, 58.0 lb-ft)
5. Handlebar holder rubber 13. Dust seal cover : 45 Nm (4.5 kgf-m, 32.5 lb-ft) and turn back 1/4 – 1/2
6. Steering stem upper bracket 14. Dust seal : 45 Nm (4.5 kgf-m, 32.5 lb-ft)
7. Rubber 15. Steering stem upper bearing : Apply grease.
8. Washer 16. Steering stem lower bearing : Do not reuse.
