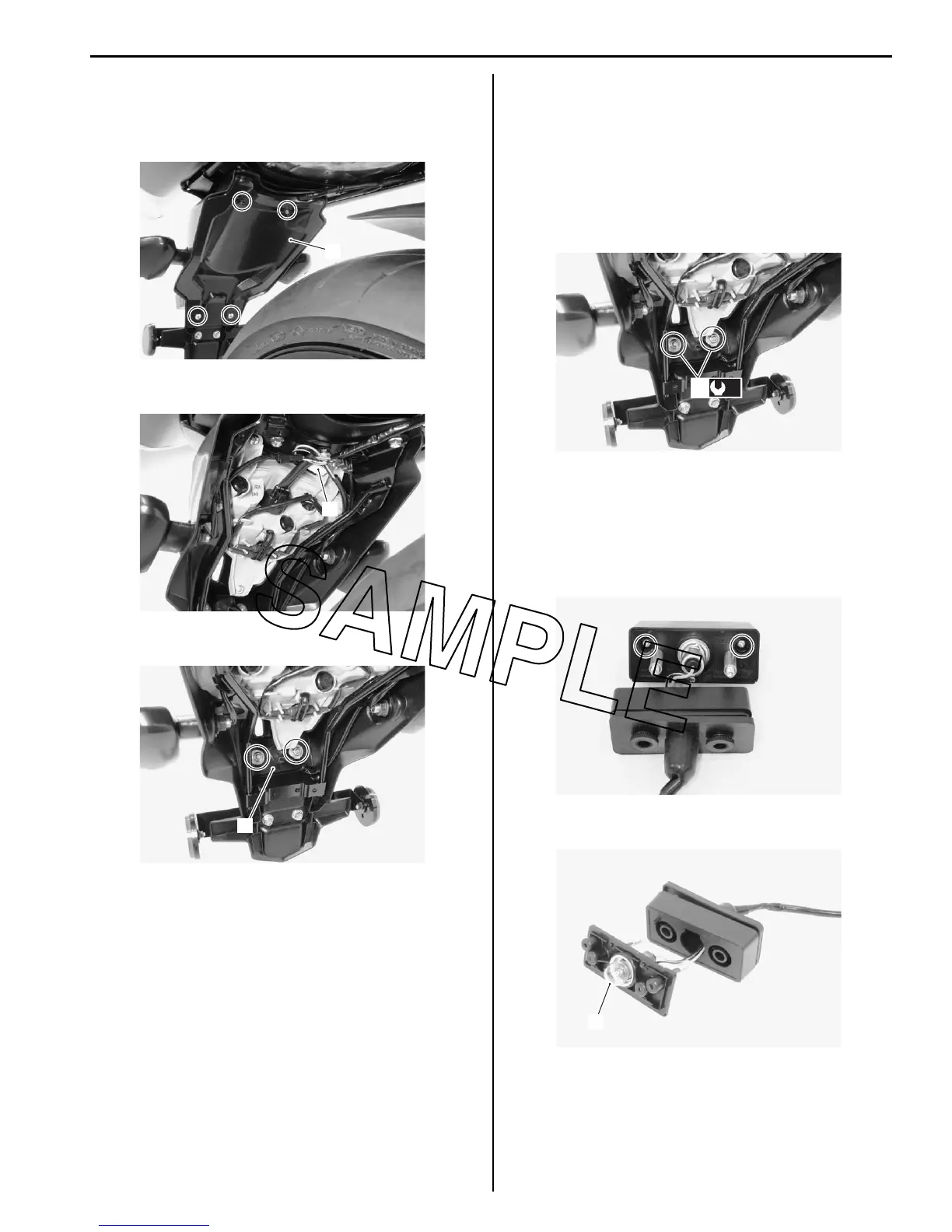

Lighting Systems: 9B-12
License Plate Light Removal and Installation
B823H19206010
Removal
1) Remove the rear fender cover (1).
2) Disconnect the license plate light coupler (2).
3) Remove the license plate light (3).
Installation
Install the rear license plate light in the reverse order of
removal. Pay attention to the following point:
• Tighten the rear license plate light mounting nuts (1)
to the specified torque.
Tightening torque
Rear license plate light mounting nut (a): 5 N·m (
0.5 kgf-m, 3.5 lb-ft)
License Plate Light Bulb Replacement
B823H19206011
1) Remove the license plate light. Refer to “License
Plate Light Removal and Installation (Page 9B-12)”.
2) Remove the lens by removing the screws.
3) Replace the bulb (1).
4) Reinstall the removed parts.
1
I823H1920027-01
2
I823H1920028-01
3
I823H1920029-01
(a)
1
I823H1920030-02
I823H1920031-01
1
I823H1920032-01
