Drive Chain / Drive Train / Drive Shaft: 3A-7
5) Install the rear sprocket mounting drum assembly to
rear wheel hub. Refer to “Rear Sprocket / Rear
Sprocket Mounting Drum Removal and Installation
(Page 3A-4)”.
6) Install the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation in Section
2D (Page 2D-11)”.
Drive Chain Replacement
B823H13106006
Use the special tool in the following procedures, to cut
and rejoin the drive chain.
NOTE
When using the special tool, apply a small
quantity of grease to the threaded parts of
the special tool.
Special tool
: 09922–22711 (Drive chain cutting and joining
tool)
Drive Chain Cutting

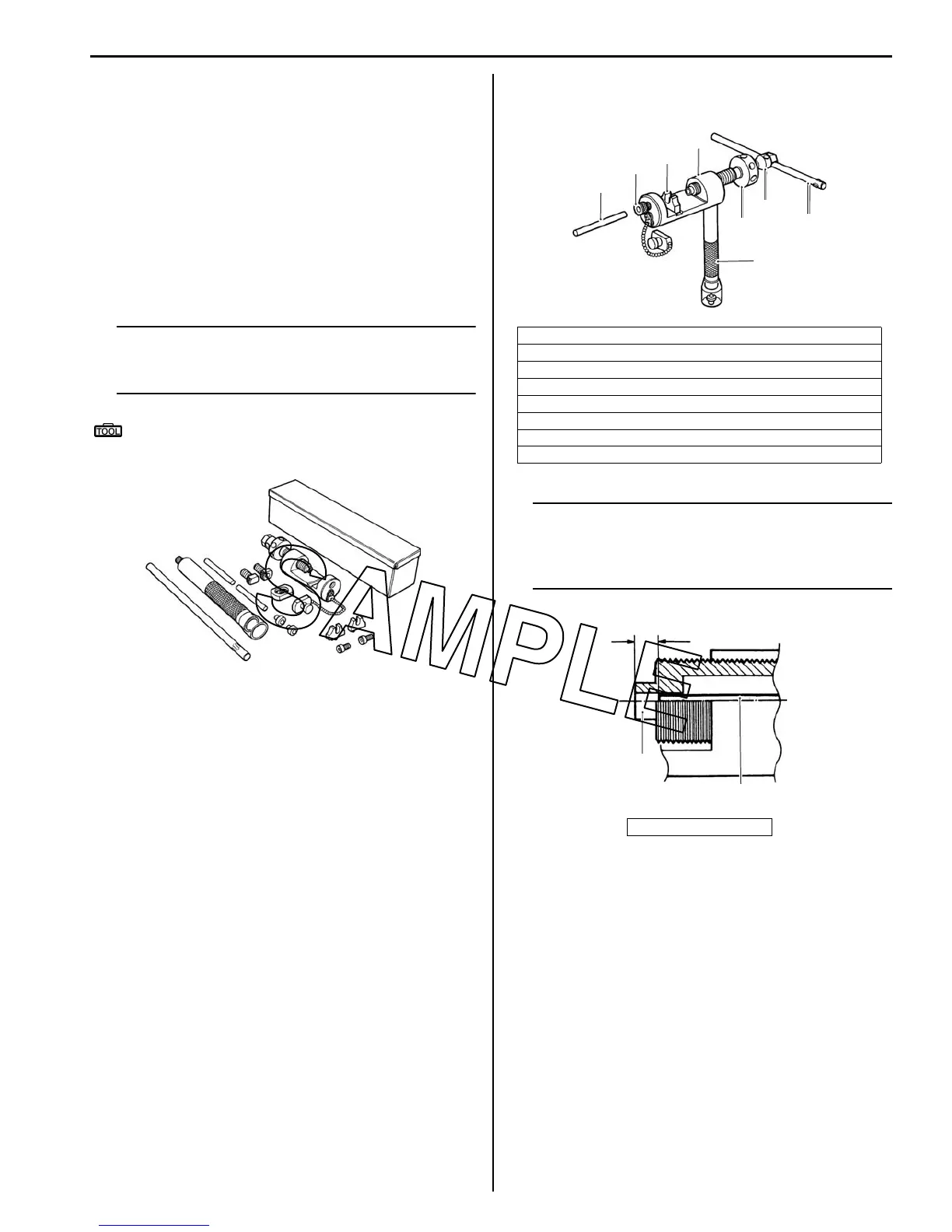

1) Set up the special tool as shown in the figure.
NOTE
The tip of pin remover (1) should be
positioned inside “a” approximately 5 mm
(0.2 in) from the end face of pressure bolt [A]
(2) as shown in the figure.
I649G1310023-02
1. Tool body
2. Grip handle
3. Pressure bolt [A]
4. Pressure bolt [B]
5. Bar
6. Adjuster bolt (With through hole)
7. Pin remover
8. Chain holder (Engraved mark 500) with reamer bolt M5 x 10
“a”: 5 mm (0.2 in)
1
2
3
4
5
6
7
8
I649G1310024-02
1
2
“a”
I649G1310025-02
