5C-2 Clutch:
Schematic and Routing Diagram

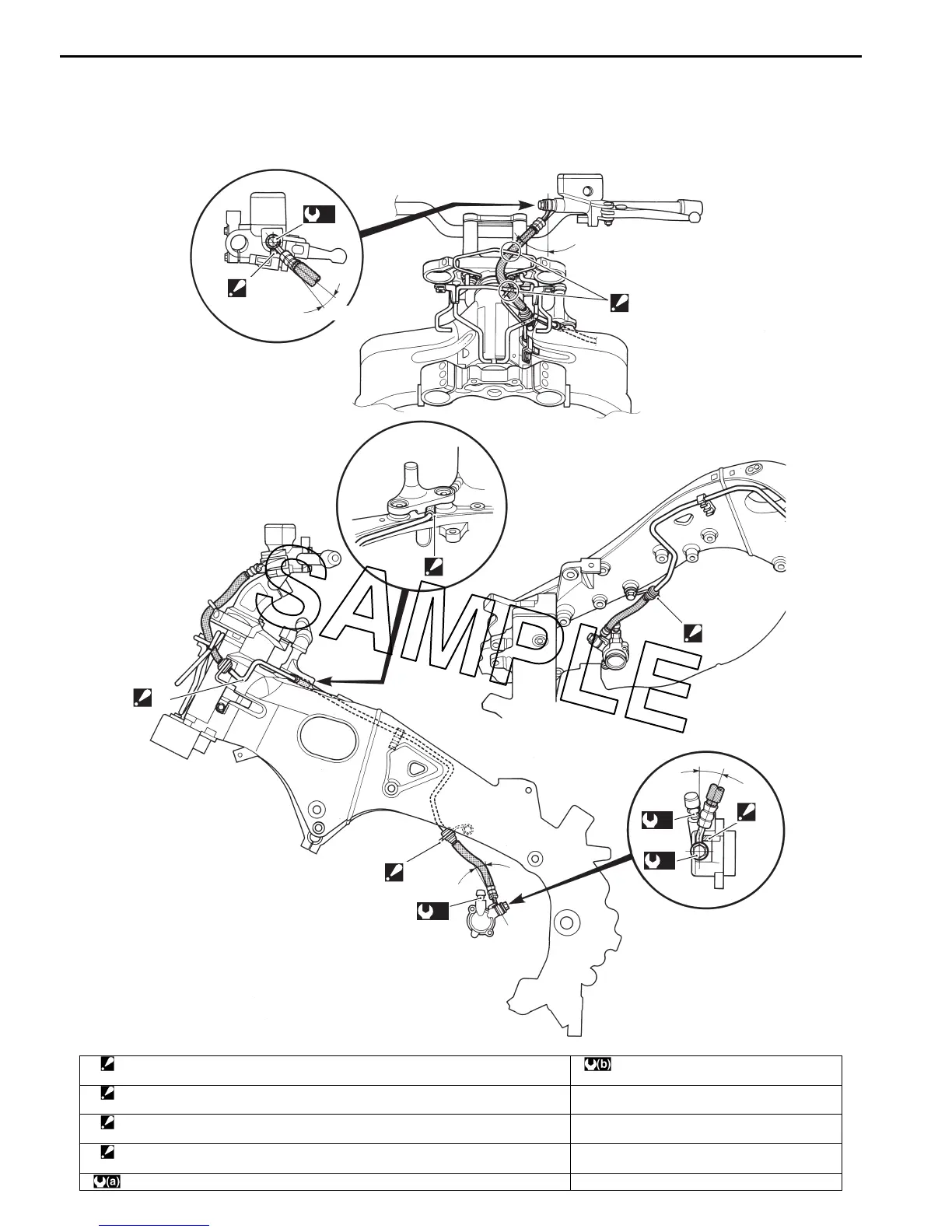

Clutch Hose Routing Diagram (Except for E-33)
B823H15302001
“a”
(a)
1
“b”
4
3
3
3
“a”
(b)
(b)
(a)
1
“c”
2
I823H1530001-04
1. Stopper
: After the clutch hose union has contacted the stopper, tighten the union bolt.
:6 Nm (0.6 kgf-m, 4.5 lb-ft)
2. Hose guide
: Pass the clutch hose behind the guide.
“a”: 14q
3. Hose guide
: Install the grommet on the clutch hose to the hose guide (2) properly.
“b”: 42q
4. Protective rubber
: Pass the clutch hose under the steering damper bracket.
“c”: 21q
: 23 Nm (2.3 kgf-m, 16.5 lb-ft)
To Next Page
