9C-10 Combination Meter / Fuel Meter / Horn:

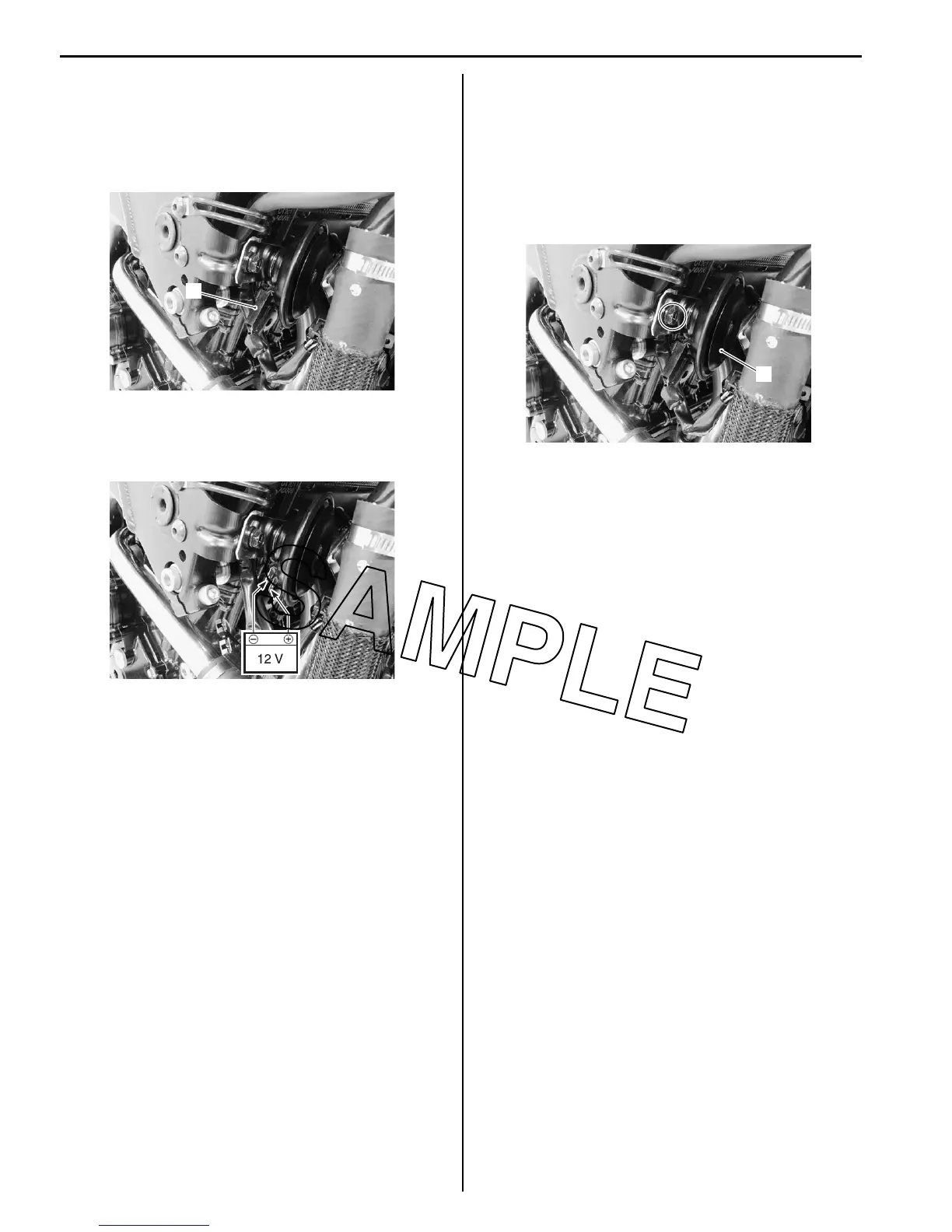

Horn Inspection
1) Remove the right frame body cover. Refer to
“Exterior Parts Removal and Installation in Section
9D (Page 9D-14)”.
2) Disconnect the horn coupler (1).
3) Connect a 12 V battery to the horn terminals. If the
sound is not heard from the horn, replace the horn
with a new one.
4) Connect the horn coupler.
5) Install the removed parts.
Horn Removal and Installation
B823H19306018
Removal
1) Remove the right frame body cover. Refer to
“Exterior Parts Removal and Installation in Section
9D (Page 9D-14)”.
2) Disconnect the horn couplers (1).
3) Remove the horn (2) by removing the mounting bolt.
Installation
Install the horn in the reverse order of removal.
1
I823H1930022-01
I823H1930023-01
2
I823H1930024-01
To Next Page
