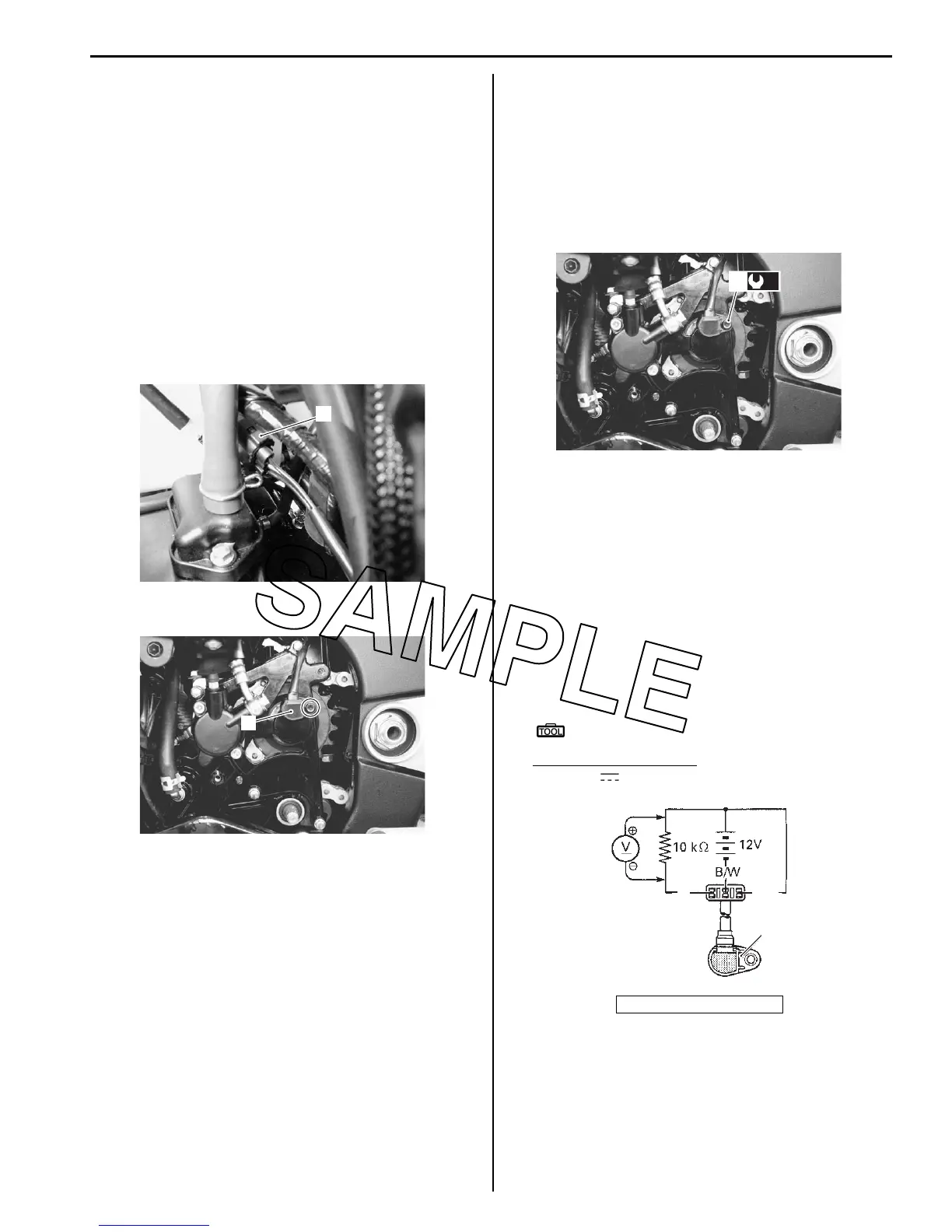

Combination Meter / Fuel Meter / Horn: 9C-7
Speedometer Inspection
B823H19306010
If the speedometer, odometer or tripmeter does not
function properly, inspect the speed sensor and the
coupler connections. If the speed sensor and coupler
connections are OK, replace the combination meter unit
with a new one. Refer to “Combination Meter Removal
and Installation (Page 9C-2)”.
Speed Sensor Removal and Installation
B823H19306011
Removal
1) Lift and support the fuel tank. Refer to “Fuel Tank
Removal and Installation in Section 1G (Page 1G-
10)”.
2) Disconnect the speed sensor lead wire coupler (1).
3) Remove the speed sensor (2).
Installation
Install the speed sensor in the reverse order of removal.
Pay attention to the following points:
• Tighten the speed sensor mounting bolt (1) to the
specified torque.
Tightening torque
Speed sensor mounting bolt (a): 6.5 N·m (0.65
kgf-m, 4.7 lb-ft)
• Route the speed sensor lead wire. Refer to “Wiring
Harness Routing Diagram in Section 9A (Page 9A-5)”.
Speed Sensor Inspection
B823H19306012
Inspect the speed sensor in the following procedures:
1) Remove the speed sensor. Refer to “Speed Sensor
Removal and Installation (Page 9C-7)”.
2) Connect a 12 V battery (between B and B/W), 10 k:
resistor (between B/R and B) and multi-circuit tester
(tester (+) probe to B and tester (–) probe to B/R) as
shown in the figure.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Voltage ( )
1
I823H1930013-01
2
I823H1930014-01
1. Speed sensor
(a)
1
I823H1930015-01
B
1
B/R
I649G1930016-02
To Next Page
