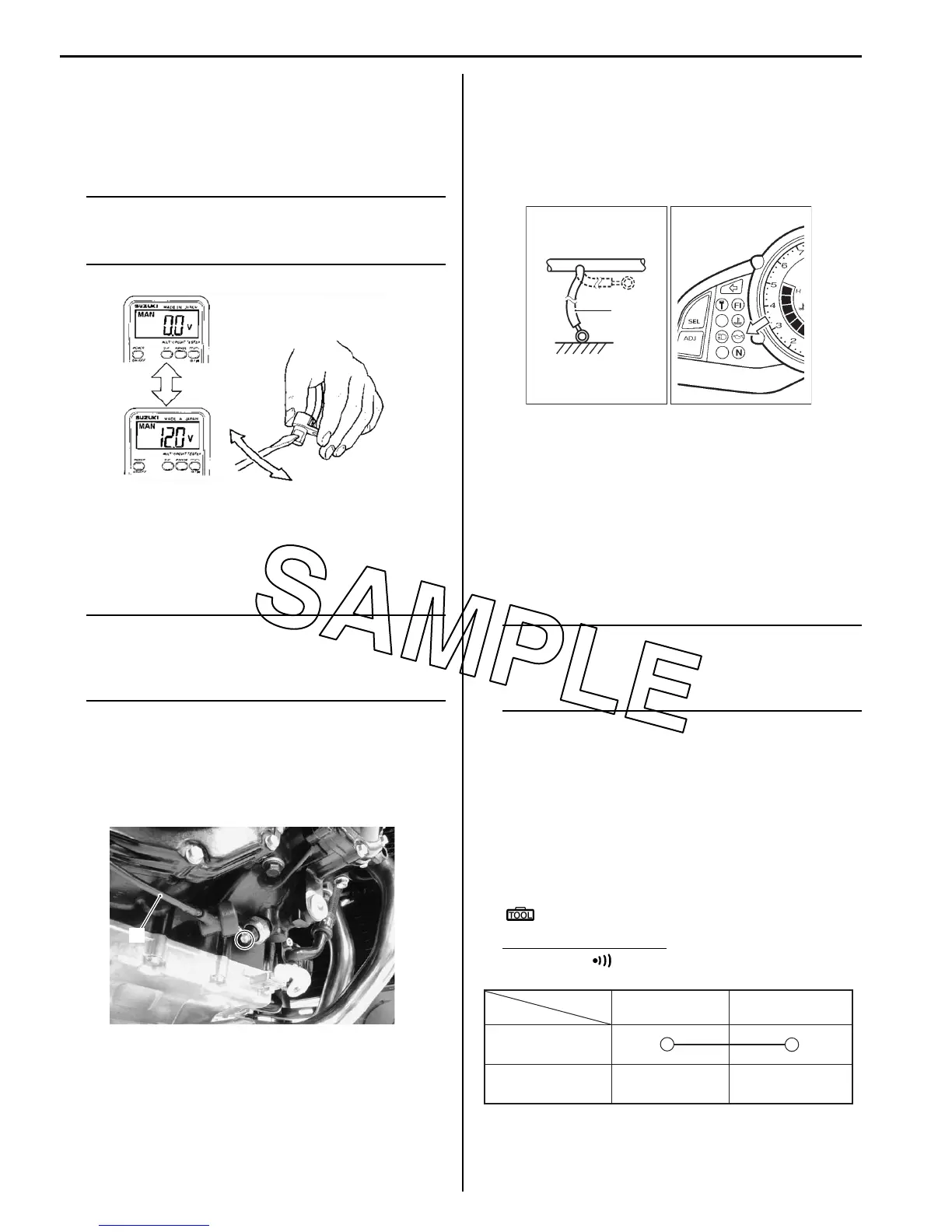

9C-8 Combination Meter / Fuel Meter / Horn:
3) Move a screwdriver back and forth across the pick-
up surface of the speed sensor. The voltage
readings should cycle as follows (0 V o 12 V or 12 V
o 0 V). If the voltage reading does not change,
replace the speed sensor with a new one.
NOTE
While testing, the highest voltage reading
should be the same as the battery voltage (12
V).
Oil Pressure Indicator Inspection
B823H19306013
Inspect the oil pressure indicator in the following
procedures:
NOTE
Before inspecting the oil pressure switch,
check if the engine oil level is correct. Refer
to “Engine Oil and Filter Replacement in
Section 0B (Page 0B-10)”.
1) Remove the under cowling. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
14)”.
2) Disconnect the oil pressure switch lead wire (1) from
the oil pressure switch.
3) Turn the ignition switch ON.
4) Check if the oil pressure indicator (LED) will light up
when grounding the lead wire (1).
If the oil pressure indicator does not light up, replace
the combination meter assembly with a new one
after checking the connection of couplers.
Oil Pressure Switch Removal and Installation
B823H19306014
Refer to “Oil Pressure Switch Removal and Installation in
Section 1E (Page 1E-10)”.
Oil Pressure Switch Inspection
B823H19306019
Inspect the oil pressure switch in the following
procedures:
NOTE
Before inspecting the oil pressure switch,
check if the engine oil level is correct. Refer
to “Engine Oil and Filter Replacement in
Section 0B (Page 0B-10)”.
1) Remove the under cowling. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
14)”.
2) Disconnect the oil pressure switch lead wire from the
oil pressure switch.
3) Inspect the oil pressure switch for continuity with the
tester. If any abnormality is found, replace the oil
pressure switch with a new one.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Continuity ( )
4) After finishing the oil pressure switch inspection,
reinstall the removed parts.
I649G1930017-02
1
I823H1930016-01
1
I823H1930017-02
ON
(Engine is at stop.)
OFF
(Engine is running.)
G/Y Ground
Color
Position
I823H1930033-01
