Engine Cooling System: 1F-13

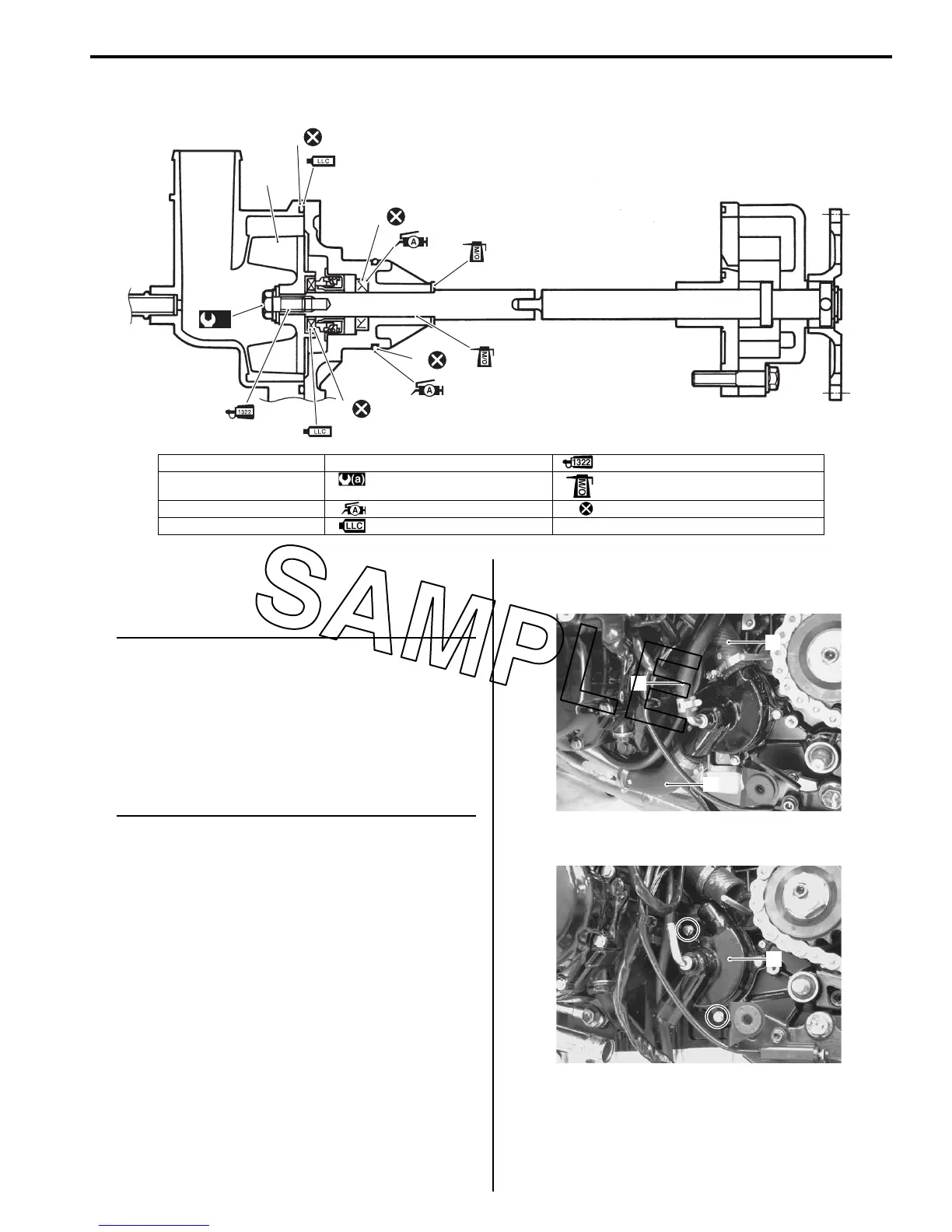

Water Pump Construction
B823H11606016
Water Pump Removal and Installation
B823H11606017
Removal
NOTE
Before draining engine oil and engine
coolant, inspect engine oil and coolant
leakage between the water pump and
crankcase. If engine oil is leaking, visually
inspect the oil seal and O-ring. If engine
coolant is leaking, visually inspect the
mechanical seal and seal washer. Refer to
“Water Pump Related Parts Inspection
(Page 1F-17)”.
1) Drain engine oil and coolant. Refer to “Engine Oil
and Filter Replacement in Section 0B (Page 0B-10)”
and “Cooling System Inspection in Section 0B
(Page 0B-13)”.
2) Remove the engine sprocket covers, outer and
inner. Refer to “Engine Sprocket Removal and
Installation in Section 3A (Page 3A-2)”.
3) Disconnect the water bypass hose (1), water pump
inlet hose (2) and cylinder inlet hose (3).
4) Remove the water pump (4).
1
(a)
2
4
3
5
I823H1160028-03
1. Impeller 5. O-ring : Apply thread lock.
2. Mechanical seal : 8 Nm (0.8 kgf-m, 6.0 lb-ft) : Apply molybudenum oil solution.
3. Oil seal : Apply grease. : Do not reuse.
4. O-ring : Apply engine coolant.
1
2
3
I823H1160029-01
4
I823H1160030-01
To Next Page
