Suzuki GSX1300BK B-King User Manual

Wheels and Tires: 2D-9

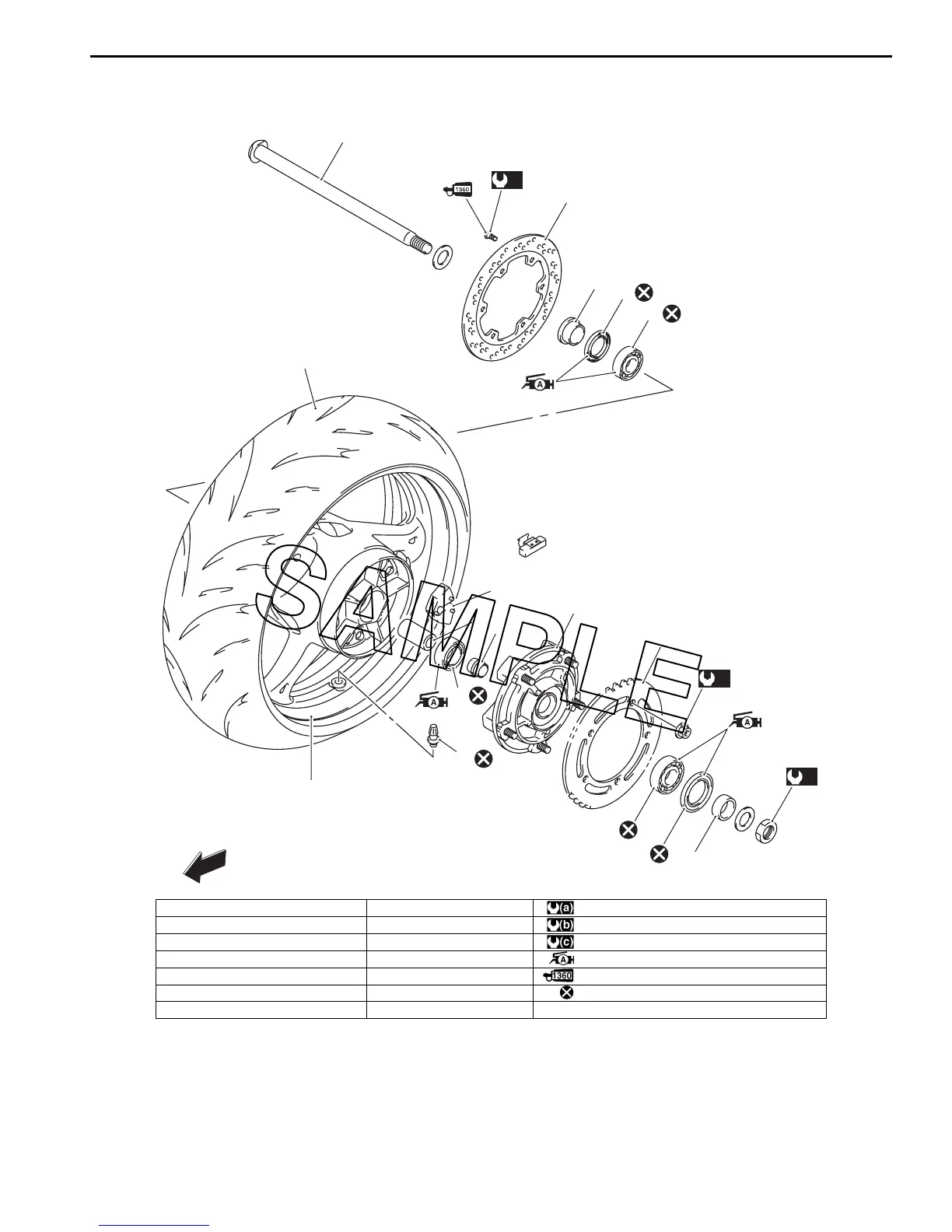

Rear Wheel Components
B823H12406006
14
(c)
13
12
3
4
10
9
6
5
2
7
(b)
1
(a)
4
3
4
8
11
FWD
FWD
I823H1240062-01
1. Spacer 8. Spacer : 100 Nm (10.0 kgf-m, 72.5 lb-ft)
2. Rear sprocket 9. Rear wheel : 60 Nm (6.0 kgf-m, 43.5 lb-ft)
3. Dust seal 10. Tire : 35 Nm (3.5 kgf-m, 25.5 lb-ft)
4. Bearing 11. Air valve : Apply grease.
5. Sprocket mounting drum 12. Collar : Apply thread lock to the thread part.
6. Retainer 13. Rear brake disc : Do not reuse.
7. Wheel damper 14. Rear axle
