2D-4 Wheels and Tires:

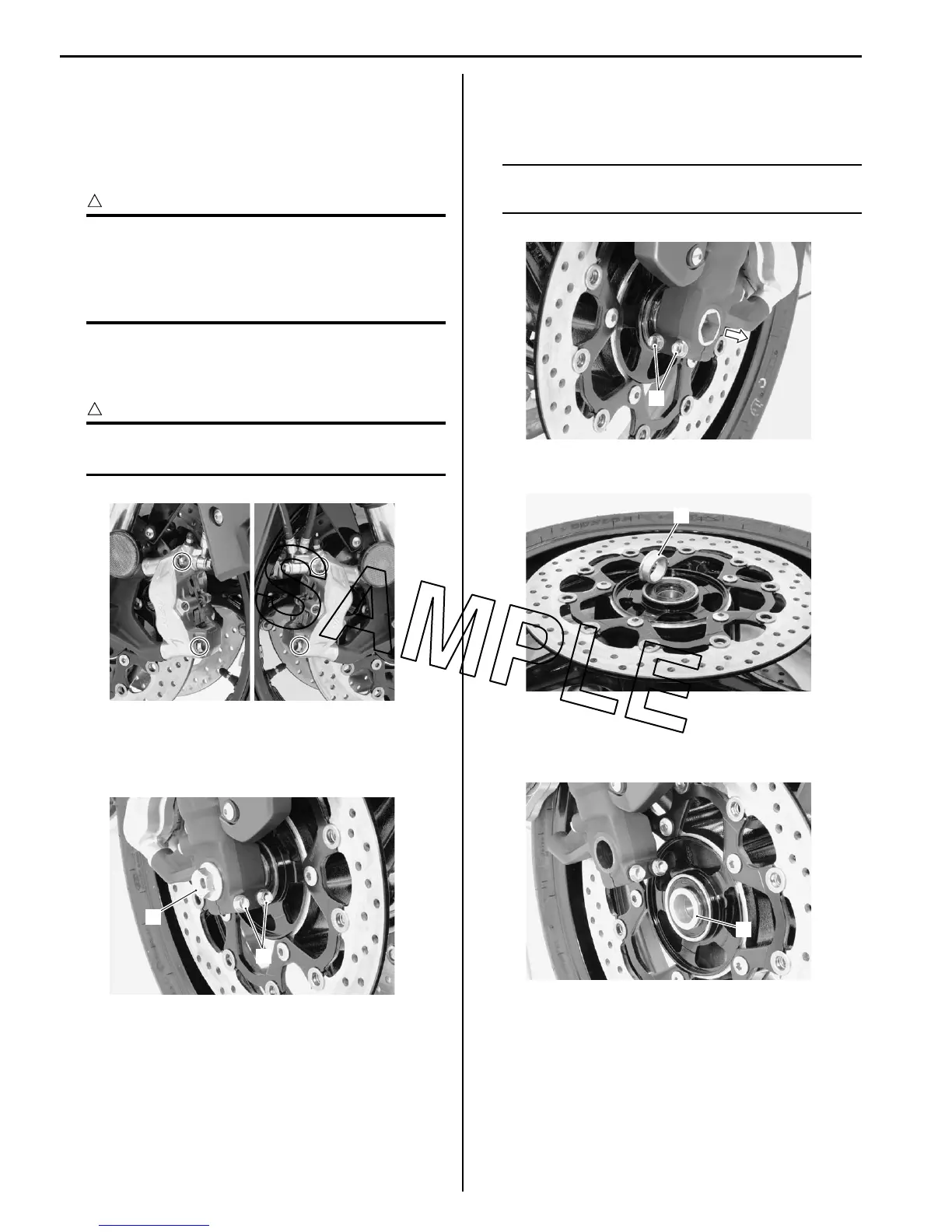

Front Wheel Assembly Removal and Installation
B823H12406003
Removal
1) Raise the front wheel off the ground and support the
motorcycle with a jack or a wooden block.
CAUTION
!
Do not carry out the work with the
motorcycle resting on the side-stand. Do not
support the motorcycle with the exhaust
pipes. Make sure that the motorcycle is
supported securely.
2) Remove the brake calipers. Refer to “Front Brake
Caliper Removal and Installation in Section 4B
(Page 4B-3)”.
CAUTION
!
Do not operate the brake lever with the
caliper removed.
3) Loosen two axle pinch bolts (1) on the right front fork
leg.
4) Remove the front axle bolt (2).
5) Loosen two axle pinch bolts (3) on the left front fork
leg.
6) Draw out the front axle and remove the front wheel.
NOTE
After removing the front wheel, fit the
calipers temporarily to the original positions.
7) Remove the collar (4). (RH only)
Installation
1) Install the collar (1) to right side of the wheel.
I823H1240029-01
2
1
I823H1240030-01
3
I823H1240031-01
4
I823H1240032-02
1
I823H1240033-03
To Next Page
