2C-2 Rear Suspension:

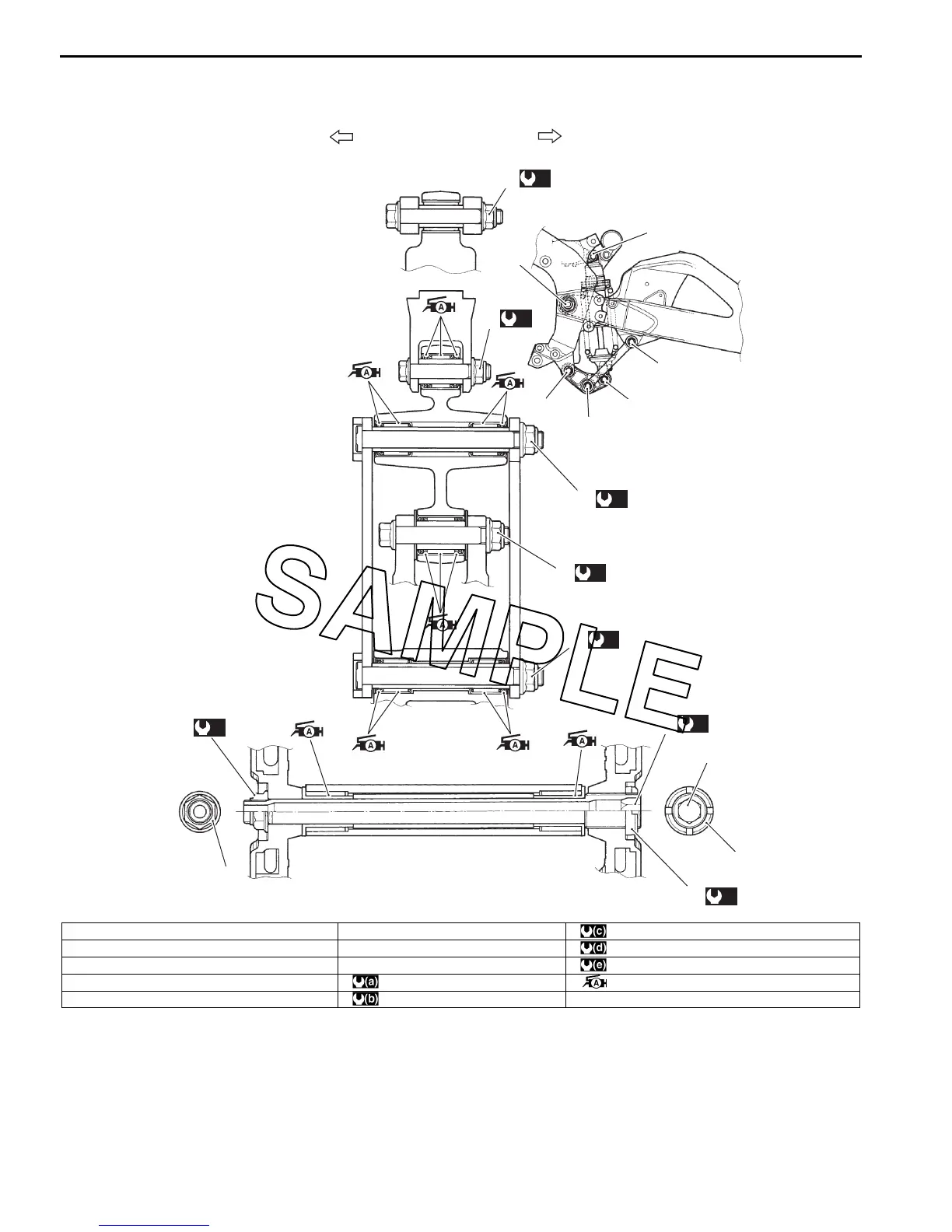

Rear Suspension Assembly Construction
B823H12306002
(a)
1
LH
RH
1
6
3
5
2
4
(b)
5
(b)
4
(e)
8
(d)
7
7
6
8
(c)
6
(b)
3
(a)
2
I823H1230050-01
1. Rear shock absorber mounting nut (Upper) 6. Swingarm pivot shaft : 15 Nm (1.5 kgf-m, 11.0 lb-ft)
2. Rear shock absorber mounting nut (Lower) 7. Swingarm pivot nut : 100 Nm (10.0 kgf-m, 72.5 lb-ft)
3. Cushion rod mounting nut (Upper) 8. Swingarm pivot lock-nut : 90 Nm (9.0 kgf-m, 65.0 lb-ft)
4. Cushion rod mounting nut (Lower) : 50 Nm (5.0 kgf-m, 36.0 lb-ft) : Apply grease to the bearing and dust seal lip.
5. Cushion lever mounting nut : 78 Nm (7.8 kgf-m, 56.5 lb-ft)
