1A-130 Engine General Information and Diagnosis:
DTC “C62” (P0443): EVAP System Purge Control Solenoid Valve Circuit Malfunction (E-33 only)
B823H11104030
Detected Condition and Possible Cause

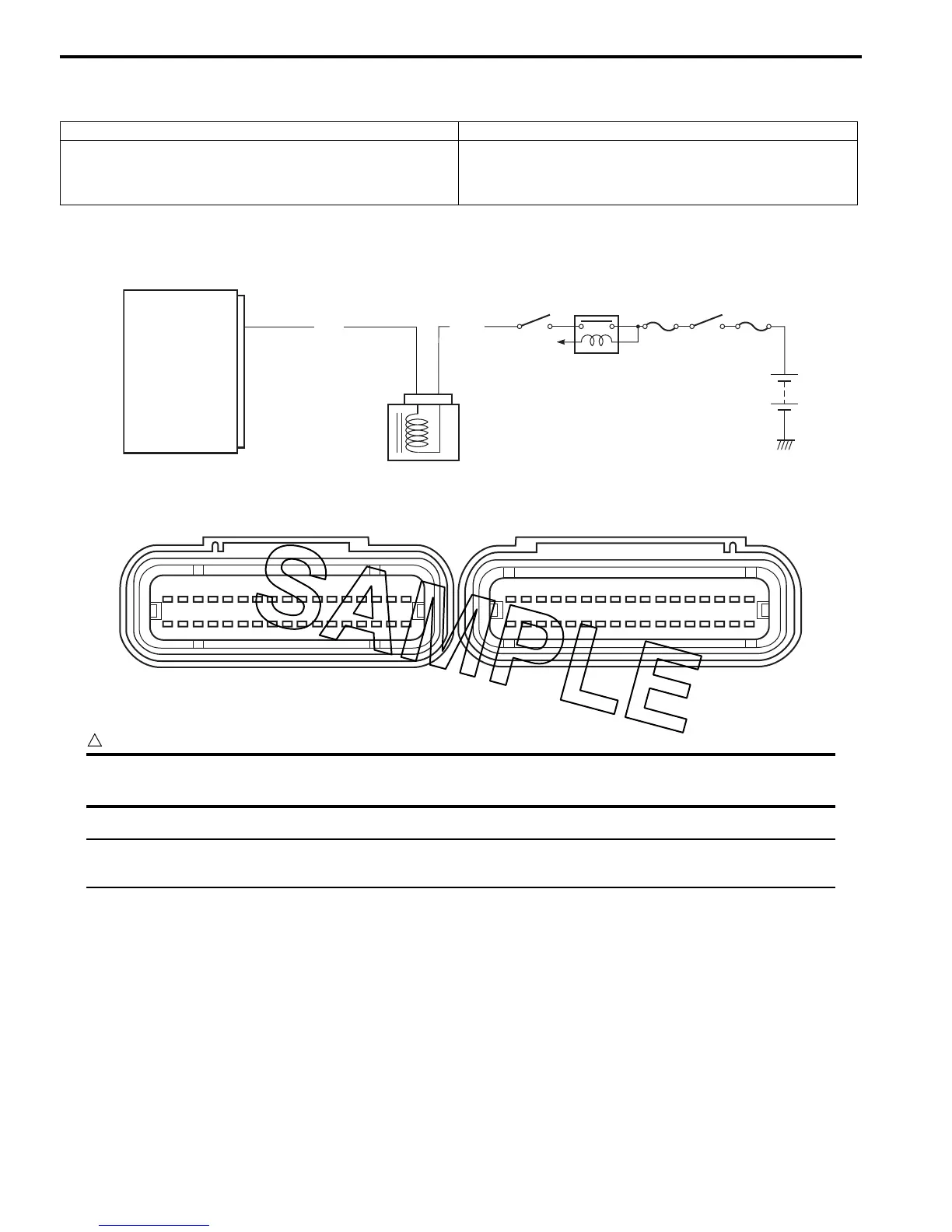

Wiring Diagram
ECM coupler (Harness side)
Troubleshooting
CAUTION
!
When using the multi-circuit tester, do not strongly touch the terminal of the ECM coupler with a
needle pointed tester probe to prevent the terminal damage or terminal bend.
NOTE
After repairing the trouble, clear the DTC using SDS tool. Refer to “Use of SDS Diagnosis Reset
Procedures (Page 1A-14)”.
Detected Condition Possible Cause
EVAP system purge control valve voltage is not input to
ECM.
• EVAP system purge control valve circuit open or short.
• EVAP system purge control valve malfunction.
• ECM malfunction.
ECM
PAIR
W/Y
O/W
Engine
stop
switch
Ignition
switch
To side-stand
switch
Side-stand relay
EVAP purge control valve
15
I823H1110178-01
1 2 3 4 5 6 7 8 9 10 1112131415 1617
18
18 19 20 21 22 23 26 2724 25 28 29 30 31 32 33 34
35
36
37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
53 54 55 56 57 58 59 60 61 62 63 6764 65 66 68
To Next Page
