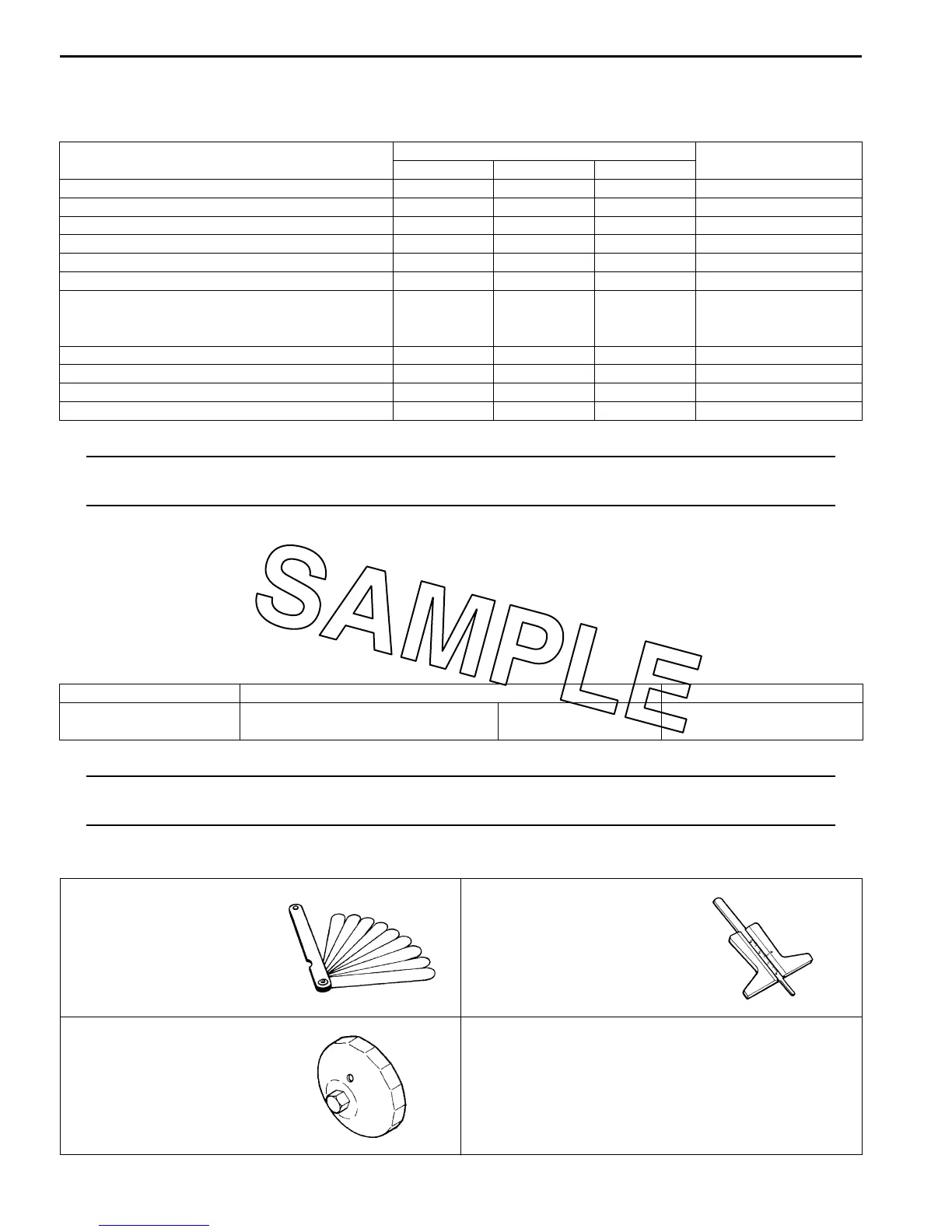

0B-23 Maintenance and Lubrication:
Specifications
Tightening Torque Specifications
B823H10207001
NOTE
The specified tightening torque is also described in the following.
“Chassis Bolt and Nut Inspection (Page 0B-21)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-9)”.
Special Tools and Equipment
Recommended Service Material
B823H10208001
NOTE
Required service material is also described in the following.
“Lubrication Points (Page 0B-2)”
Special Tool
B823H10208002
Fastening part
Tightening torque
Note
Nmkgf-mlb-ft
Exhaust pipe bolt 23 2.3 16.5 )(Page 0B-3)
Exhaust pipe mounting bolt 25 2.5 18.0 )(Page 0B-3)
Muffler connecting bolt 23 2.3 16.5 )(Page 0B-3)
Muffler joint mounting bolt 23 2.3 16.5 )(Page 0B-3)
Muffler mounting bolt (Front) 23 2.3 16.5 )(Page 0B-3)
Muffler mounting bolt (Rear) 25 2.5 18.0 )(Page 0B-3)
Spark plug
11 1.1 8.0
)(Page 0B-9) /
)(Page 0B-9) /
)(Page 0B-9)
Oil drain plug 23 2.3 16.5 )(Page 0B-11)
Oil filter 20 2.0 14.5 )(Page 0B-12)
Rear axle nut 100 10.0 72.5 )(Page 0B-16)
Rear master cylinder rod lock-nut 18 1.8 13.0 )(Page 0B-18)
Material SUZUKI recommended product or Specification Note
Brake fluid DOT 4 — )(Page 0B-14) /
)(Page 0B-17)
09900–20803 09900–20805
Thickness gauge Tire depth gauge
)(Page 0B-5) )(Page 0B-19)
09915–40610
Oil filter wrench
)(Page 0B-11) /
)(Page 0B-12)
