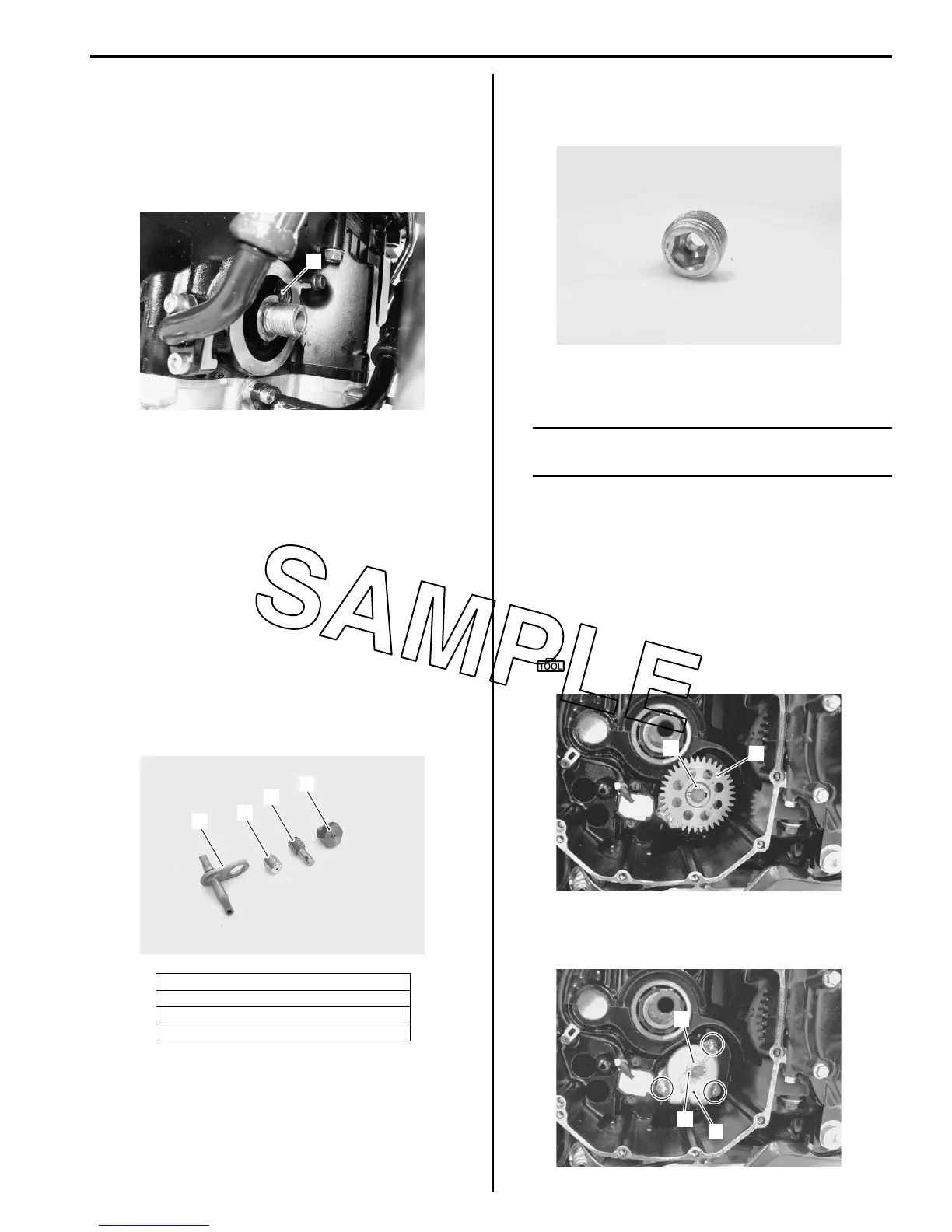

Engine Lubrication System: 1E-13
Oil Gallery Jet
Removal
1) Remove the oil filter. Refer to “Engine Oil and Filter
Replacement in Section 0B (Page 0B-10)”.
2) Remove the oil gallery jet (1) from the lower
crankcase.
Installation
Installation is in the reverse order of removal. Pay
attention to the following point:
• Replace the oil filter with a new one. Refer to “Engine
Oil and Filter Replacement in Section 0B (Page 0B-
10)”.
Oil Jet / Oil Gallery Jet Inspection
B823H11506010
Refer to “Oil Jet / Oil Gallery Jet Removal and
Installation (Page 1E-11)”.
Oil Jet
Make sure that the oil jets are not clogged. If they are
clogged, clean their oil passage using a wire of the
proper size and compressed air.
Oil Gallery Jet
Inspect the oil gallery jet for clogging. Clean the oil
gallery if necessary.
Oil Pump Removal and Installation
B823H11506011
NOTE
Be careful not to drop any parts into the
crankcase.
Removal
1) Drain engine oil. Refer to “Engine Oil and Filter
Replacement in Section 0B (Page 0B-10)”.
2) Remove the clutch assembly. Refer to “Clutch
Removal in Section 5C (Page 5C-15)”.
3) Remove the snap ring (1) and oil pump driven gear
(2).
Special tool
: 09900–06107 (Snap ring pliers)
4) Remove the pin (3) and washer (4).
5) Remove the oil pump (5).
1. Piston cooling jet
2. Oil jet (For transmission oil spray)
3. Oil jet (For transmission)
4. Oil jet (For generator)
1
I823H1150045-01
1
2
3
4
I823H1150040-01
I823H1150041-01
1
2
I823H1150017-01
3
5
4
I823H1150018-01
To Next Page
