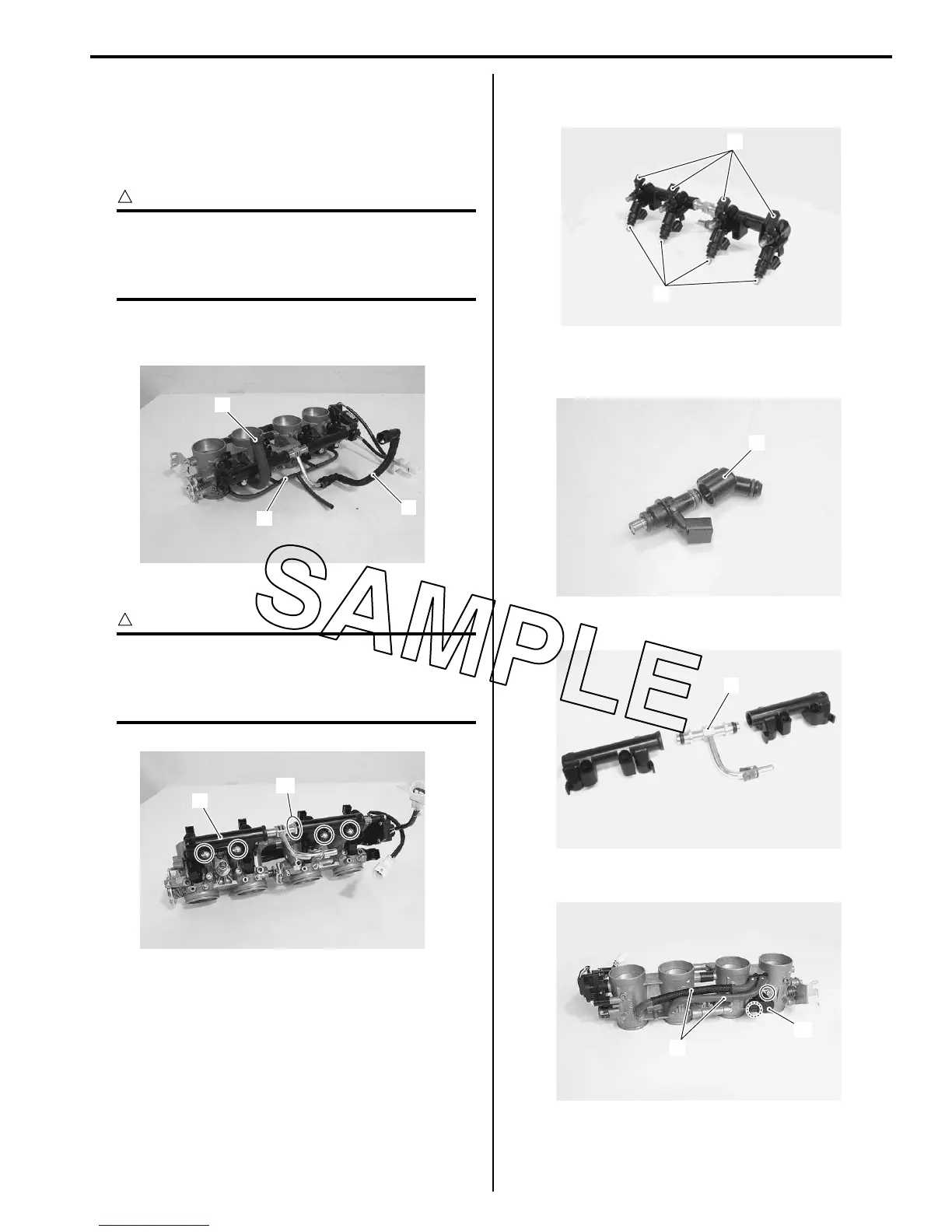

Engine Mechanical: 1D-12
Throttle Body Disassembly and Assembly
B823H11406011
Refer to “Throttle Body Removal and Installation
(Page 1D-10)”.
Disassembly
CAUTION
!
Identify the position of each removed part.
Organize the parts in their respective groups
so that they can be reinstalled in their
original positions.
1) Disconnect the fuel feed hose (1), vacuum hoses (2)
and ISC valve hose (3).
2) Remove the fuel delivery pipe assembly (4).
CAUTION
!
Be careful not to twist the fuel delivery pipe
T-joint when removing the fuel delivery pipes,
or joint part “A” of the fuel delivery pipe get
damage.
3) Remove the primary fuel injectors (5) and secondary
fuel injectors (6) from the fuel delivery pipe.
4) Remove the fuel pipe (7) from the primary fuel
injector.
5) Remove the T-joint (8) from the fuel delivery pipes.
6) Remove the ISC valve hoses (9) and ISC valve (10).
1
2
3
I823H1140009-01
4
“A”
I823H1140010-02
5
6
I823H1140011-01
7
I823H1140012-01
8
I823H1140014-01
9
10
I823H1140013-02
