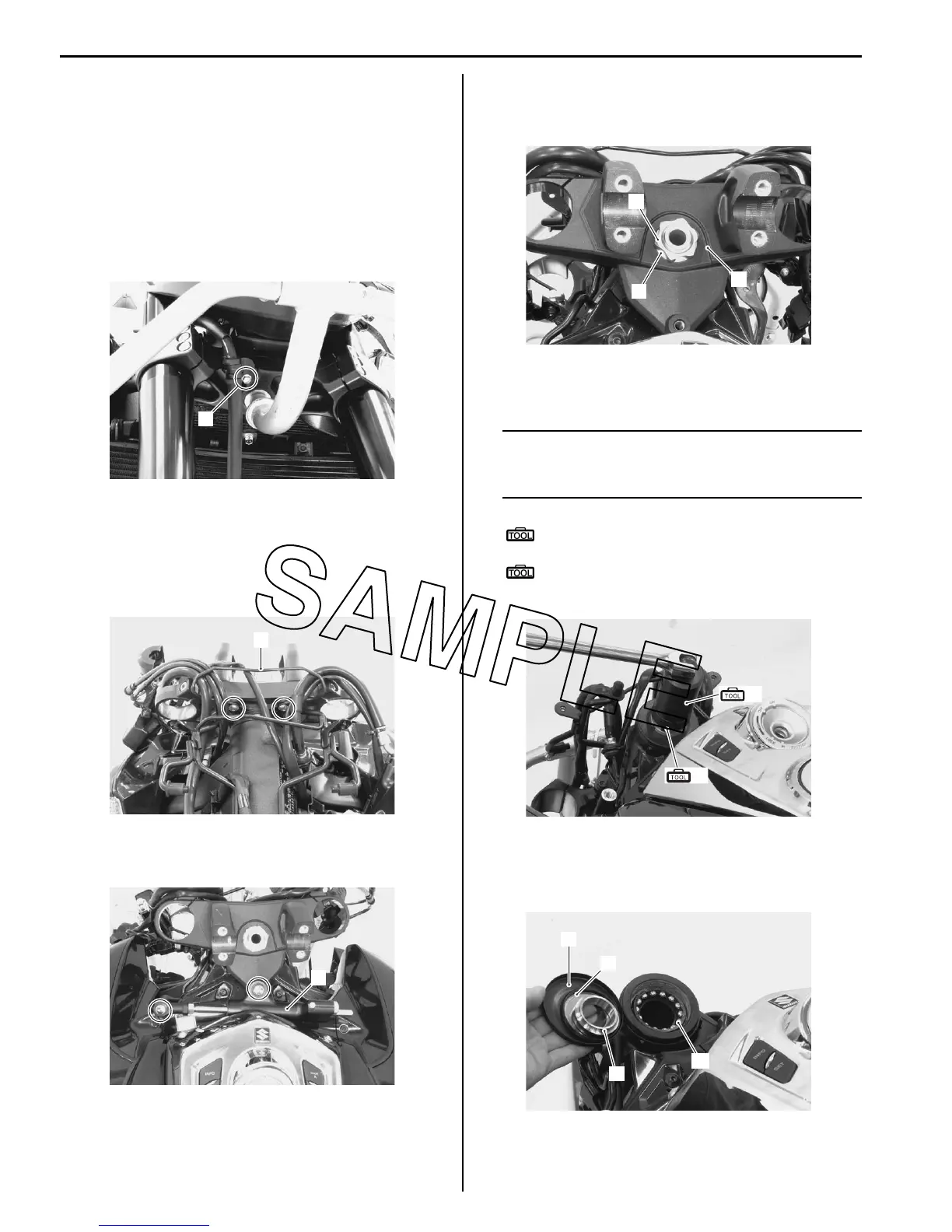

6B-7 Steering / Handlebar:
Steering Removal and Installation
B823H16206006
Removal
1) Support the motorcycle with a jack or a wooden
block.
2) Remove the front wheel assembly. Refer to “Front
Wheel Assembly Removal and Installation in Section
2D (Page 2D-4)”.
3) Remove the brake hose clamp bolt (1).
4) Remove the headlight. Refer to “Headlight Removal
and Installation in Section 9B (Page 9B-4)”.
5) Remove the front forks. Refer to “Front Fork
Removal and Installation in Section 2B (Page 2B-2)”.
6) Remove the cable guides (2).
7) After removing of the caps and bolts, remove the
steering damper (3).
8) Remove the steering stem upper bracket (4) by
removing the steering stem head nut (5) and washer
(6).
9) Remove the steering stem lock-nut, washer and
steering stem nut with the special tools.
NOTE
When loosening the stem nuts, hold the
steering stem lower bracket to prevent it from
falling.
Special tool
(A): 09940–14911 (Steering stem nut
wrench)
(B): 09940–14960 (Steering nut wrench
socket)
10) Remove the steering stem lower bracket.
11) Remove the dust seal cover (7), dust seal (8), upper
bearing inner race (9) and bearing (10).
1
I823H1620028-01
2
I823H1620008-01
3
I823H1620009-01
5
6
4
I823H1620010-01
(B)
(A)
I823H1620011-01
7
8
9
10
I823H1620012-01
