2C-14 Rear Suspension:
Special Tools and Equipment
Recommended Service Material
B823H12308001
NOTE
Required service material is also described in the following.
“Rear Suspension Components (Page 2C-1)”
“Rear Suspension Assembly Construction (Page 2C-2)”

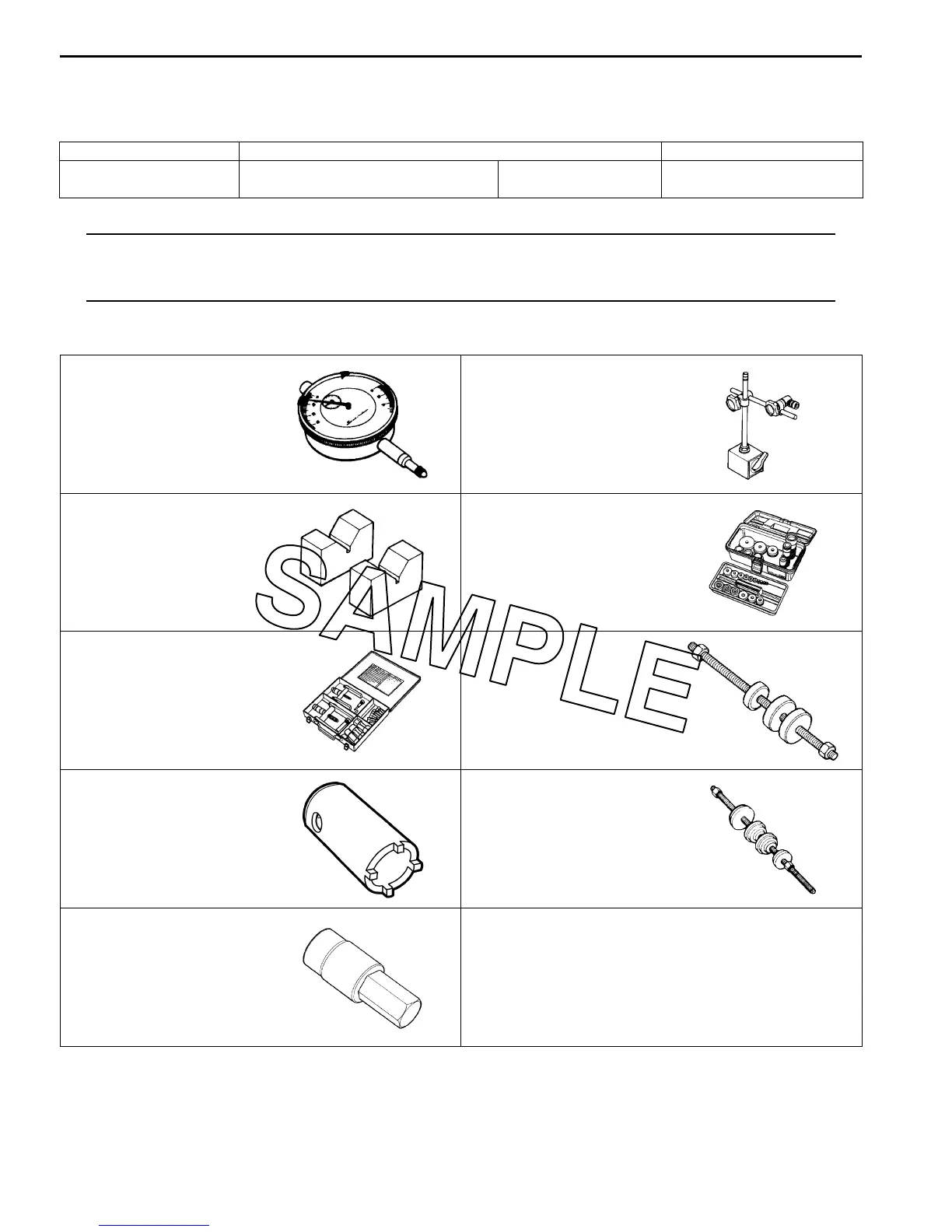

Special Tool
B823H12308002
Material SUZUKI recommended product or Specification Note
Grease SUZUKI SUPER GREASE A or
equivalent
P/No.: 99000–25010 )(Page 2C-7) / )(Page 2C-
13)
09900–20607 09900–20701
Dial gauge (1/100 mm, 10
mm)
Magnetic stand
)(Page 2C-11) )(Page 2C-11)
09900–21304 09913–70210
V-block (100 mm) Bearing installer set
)(Page 2C-11) )(Page 2C-7)
09921–20240 09924–84521
Bearing remover set Bearing installer set
)(Page 2C-7) / )(Page 2C-
12) / )(Page 2C-12)
)(Page 2C-7) / )(Page 2C-
12)
09940–14940 09941–34513
Swingarm pivot thrust
adjuster socket wrench
Steering race installer
)(Page 2C-8) / )(Page 2C-
10)
)(Page 2C-12)
09944–28320
Hexagon socket (19 mm)
)(Page 2C-8) / )(Page 2C-
9)
