1A-6 Engine General Information and Diagnosis:
Component Location
FI System Parts Location
B823H11103001
H
A
M
L
N
D
E
C
B
K
J I
G
F
I823H1110182-01

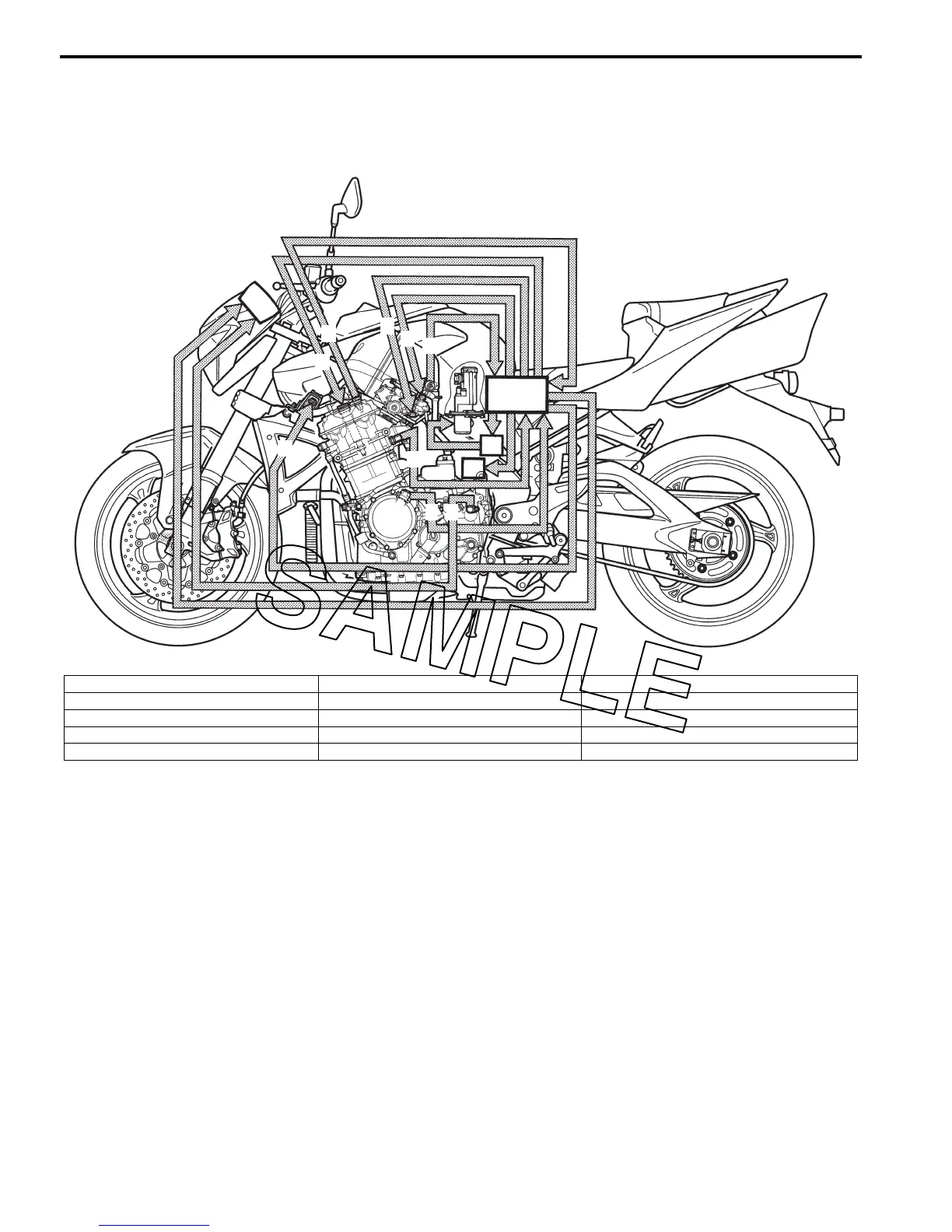

“A”: ECM “F”: PAIR control solenoid valve (PAIR valve) “K”: Engine coolant temperature sensor (ECTS)
“B”: Secondary fuel injector “G”: Ignition coil (IG coil) “L”: Fuel pump relay (FP relay)
“C”: Primary fuel injector “H”: Speedometer “M”: Fuel pump
“D”: Intake air temperature sensor (IATS) “I”: Speed sensor “N”: EVAP system purge control valve (For E-33)
“E”: Camshaft position sensor (CMPS) “J”: Crankshaft position sensor (CKPS)
