Suzuki GSX1300BK B-King User Manual

Emission Control Devices: 1B-7

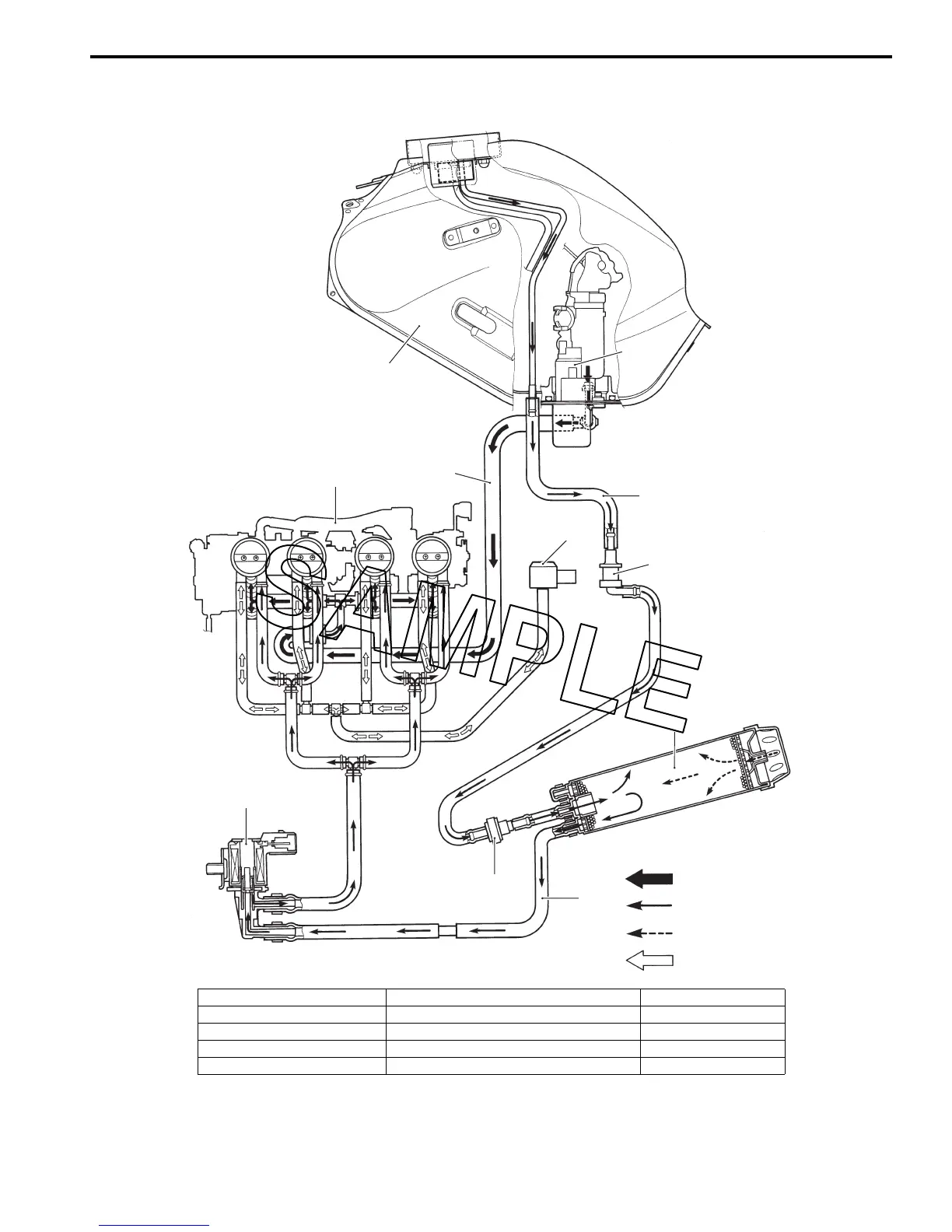

Evaporative Emission Control System Diagram (Only for E-33)
B823H11201005
1
2
3
4
5
11
7
“C”
“D”
“A”
“B”
8
6
9
10
I823H1120033-04
1. Fuel tank 6. Fuel tank pressure control valve 11. IAP sensor
2. Fuel pump 7. EVAP canister “A”: Fuel
3. Fuel feed hose 8. Purge hose “B”: HC vapor
4. Surge hose 9. EVAP purge control valve “C”: Fresh air
5. Fuel shut-off valve 10. Throttle body “D”: Vacuum
