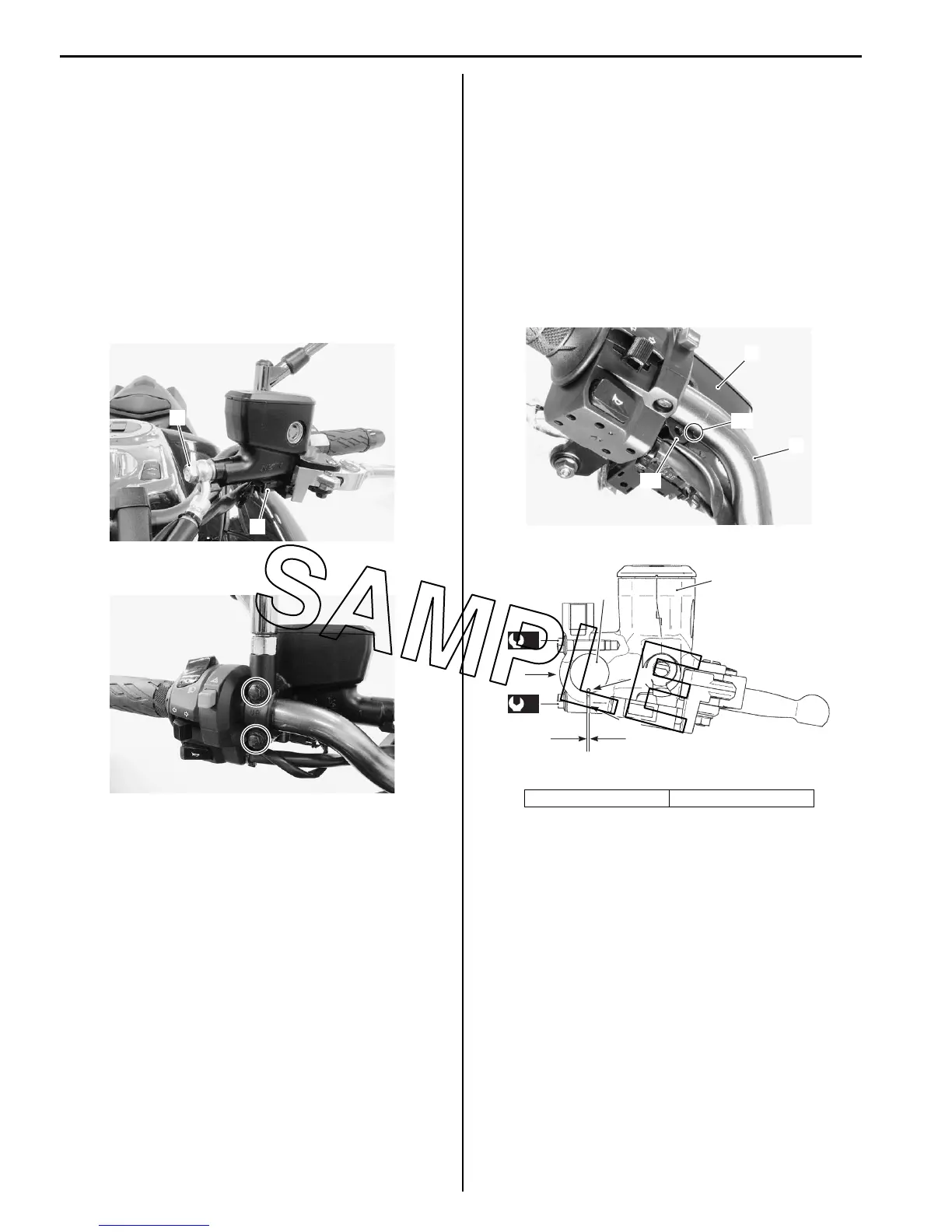

5C-8 Clutch:
Clutch Master Cylinder Assembly Removal and
Installation
B823H15306008
Removal
1) Drain clutch fluid. Refer to “Clutch Fluid
Replacement (Page 5C-5)”.
2) Disconnect the clutch lever position switch coupler
(1).
3) Place a rag under the clutch hose union bolt (2) to
catch any spilt brake fluid.
4) Disconnect the clutch hose by removing the clutch
hose union bolt (2).
5) Remove the clutch master cylinder assembly.
Installation
Install the clutch master cylinder in the reverse order of
removal. Pay attention to the following points:
• When installing the clutch master cylinder (1) onto the
handlebars (2), align the master cylinder holder’s
mating surface “A” with the punch mark “B” on the
handlebars (2) and tighten the upper holder bolt first.
Refer to “Handlebar Construction in Section 6B
(Page 6B-2)”.
Tightening torque
Clutch master cylinder holder bolt (a): 10 N·m (
1.0 kgf-m, 7.0 lb-ft)
1
2
I823H1530062-01
I823H1530063-01
“C”: “UP” mark “a”: Clearance
“A”
“B”
1
2
I823H1530007-02
“a”
(a)
(a)
“C”
“A”
“B”
1
2
I823H1530067-01
