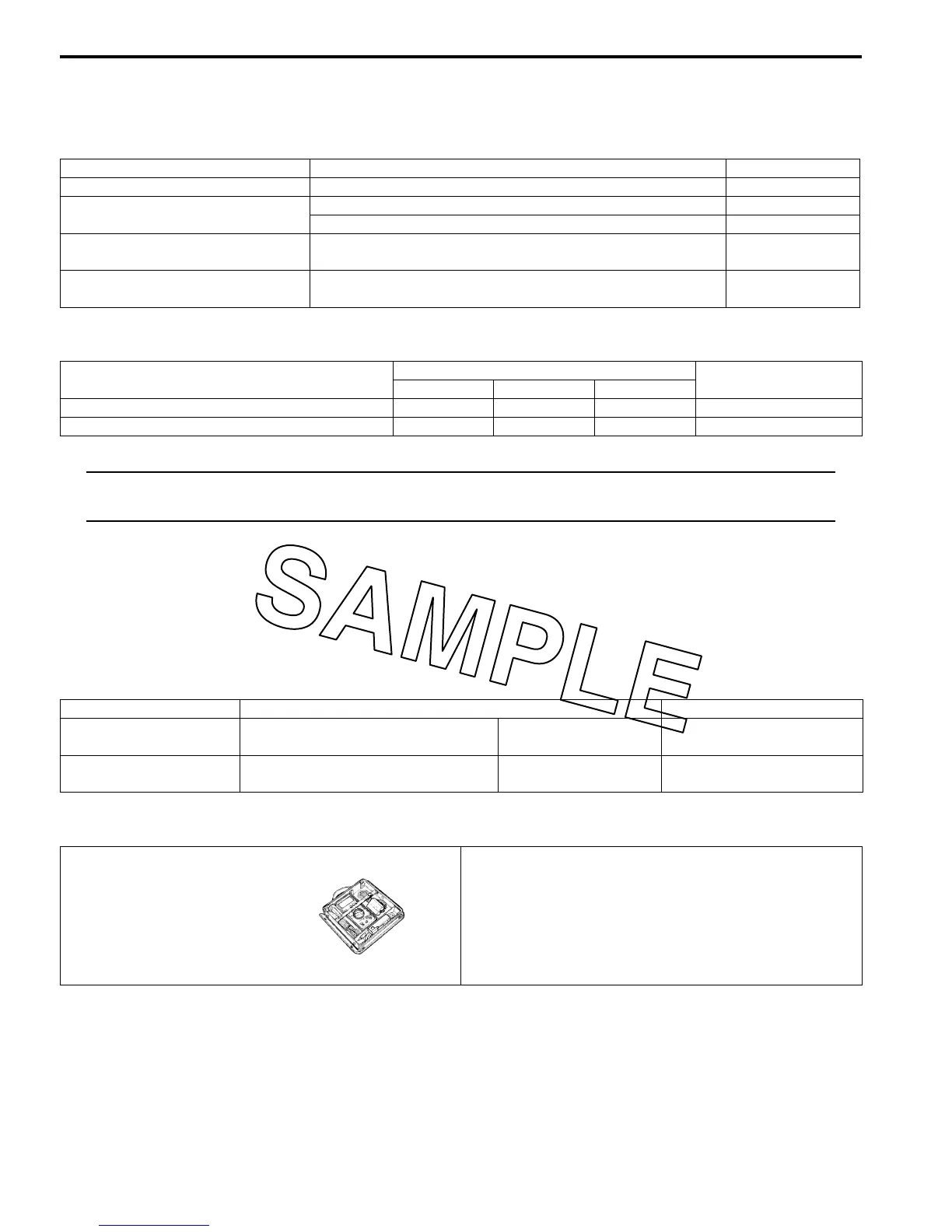

1B-18 Emission Control Devices:
Specifications
Service Data
B823H11207001
FI sensors
Tightening Torque Specifications
B823H11207002
NOTE
The specified tightening torque is also described in the following.
“Heated Oxygen Sensor (HO2S) Construction (Page 1B-9)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-9)”.
Special Tools and Equipment
Recommended Service Material
B823H11208001
Special Tool
B823H11208002
Item Specification Note
HO2 sensor heater resistance Approx. 8 : at 23 qC (73 Fq)
HO2 sensor output voltage
0.3 V and less at idle speed
0.6 V and more at 3 000 r/min
PAIR control solenoid valve
resistance
20 – 24 : at 20 – 30 qC (68 – 86 qF)
EVAP system purge control
solenoid valve resistance
Approx. 32 : at 20 qC (68 qF) E-33 only
Fastening part
Tightening torque
Note
Nmkgf-mlb-ft
HO2 sensor 25 2.5 18.0 )(Page 1B-10)
PAIR reed valve cover bolt 11 1.1 8.0 )(Page 1B-10)
Material SUZUKI recommended product or Specification Note
Sealant SUZUKI BOND No.1207B or
equivalent
P/No.: 99000–31140 )(Page 1B-13)
Thread lock cement THREAD LOCK CEMENT SUPER
1322 or equivalent
P/No.: 99000–32110 )(Page 1B-10)
09900–25008
Multi-circuit tester set
)(Page 1B-12) /
)(Page 1B-16)
