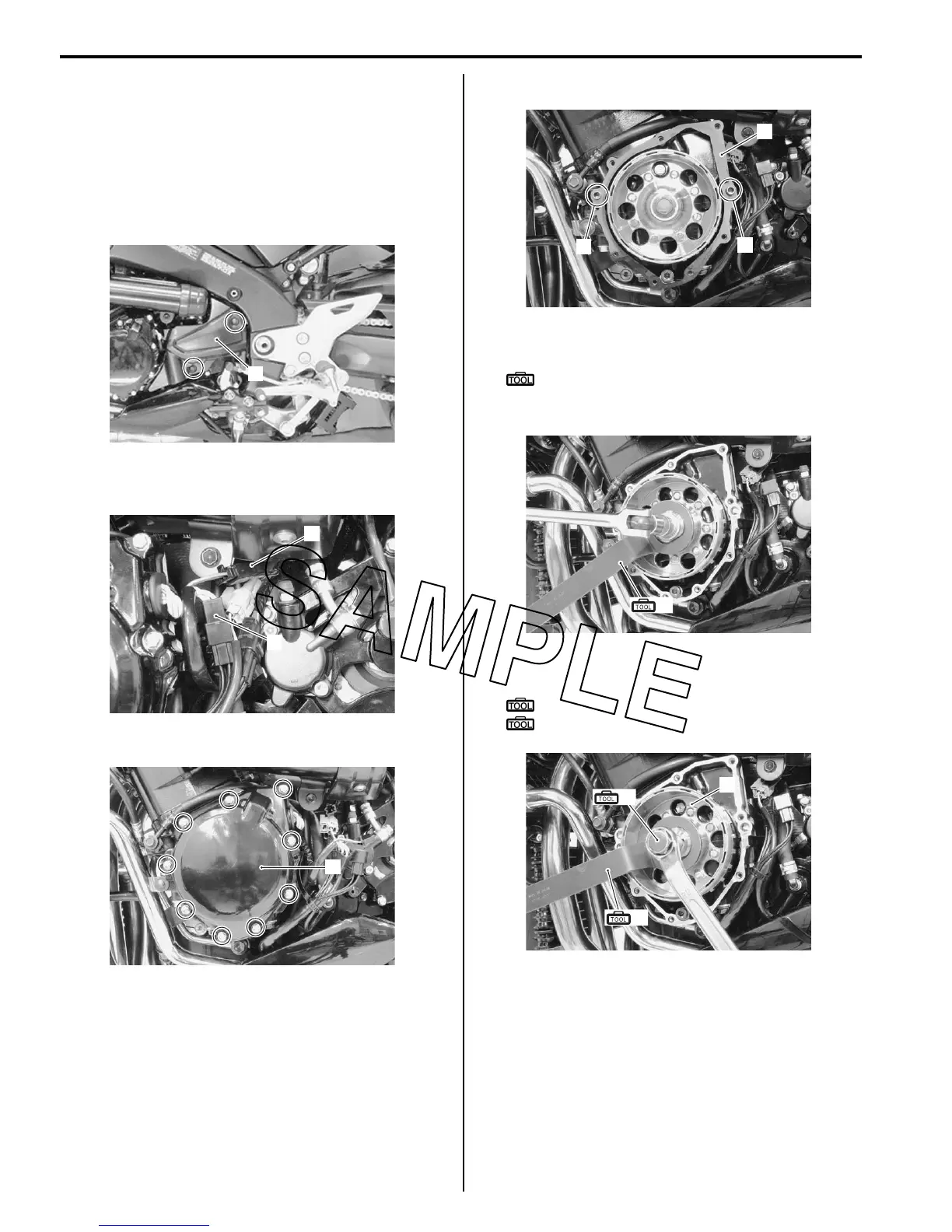

1J-6 Charging System:
Generator Removal and Installation
B823H11A06004
Removal
1) Disconnect the battery (–) lead wire. Refer to
“Battery Removal and Installation (Page 1J-14)”.
2) Drain engine oil. Refer to “Engine Oil and Filter
Replacement in Section 0B (Page 0B-10)”.
3) Remove the engine sprocket outer cover (1).
4) Disconnect the CKP sensor coupler (2) and
generator coupler (3).
5) Remove the generator cover (4).
6) Remove the gasket (5) and dowel pins (6).
7) Hold the generator rotor with the special tool.
Special tool
(A): 09930–44530 (Rotor holder)
8) Remove the generator rotor bolt and washer.
9) Remove the generator rotor (7) with the special tool.
Special tool
(A): 09930–44530 (Rotor holder)
(B): 09930–30450 (Rotor remover bolt)
1
I823H11A0003-03
2
3
I823H11A0005-01
4
I823H11A0006-01
6
6
5
I823H11A0007-01
(A)
I823H11A0008-01
7
(A)
(B)
I823H11A0009-01
