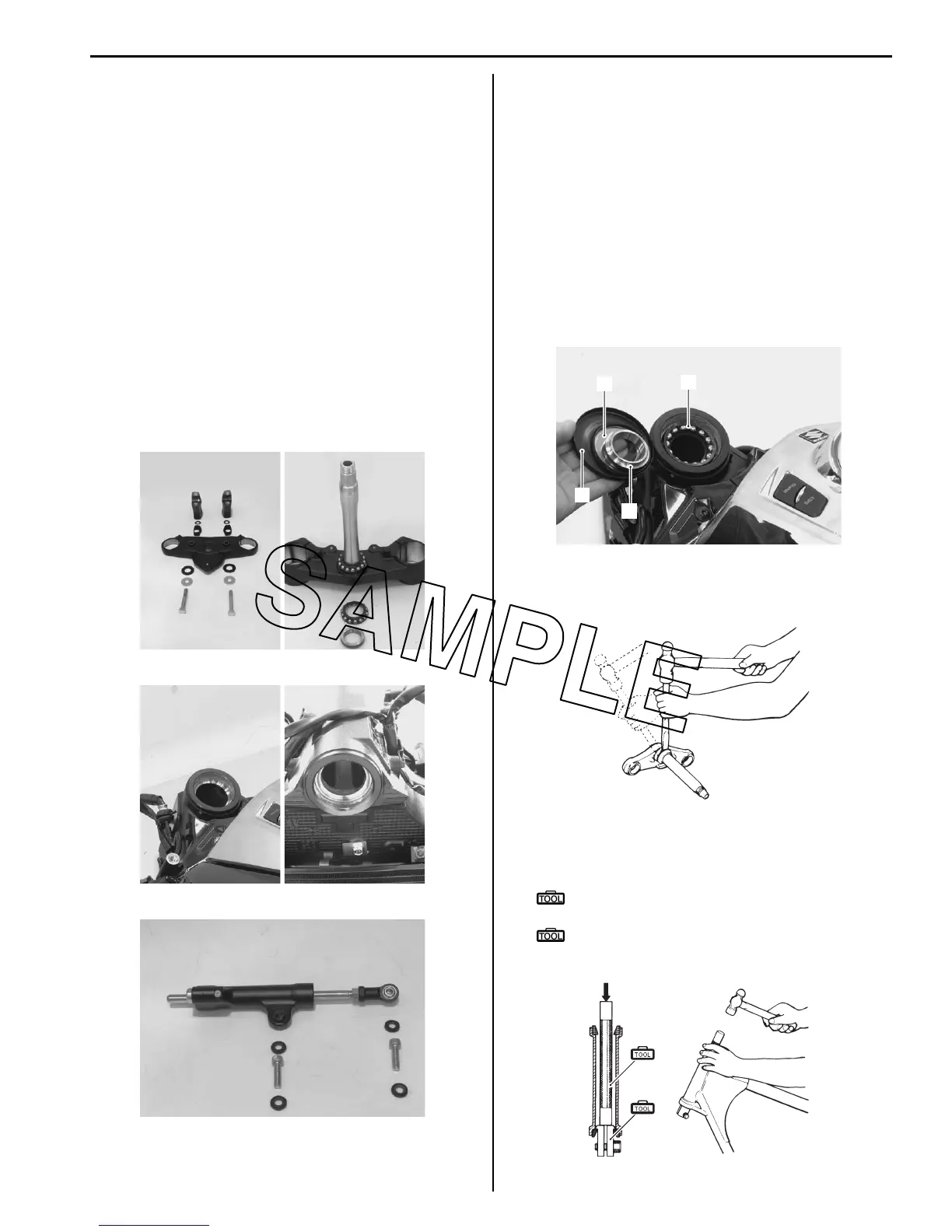

Steering / Handlebar: 6B-10
Steering Related Parts Inspection
B823H16206007
Refer to “Steering Removal and Installation (Page 6B-
7)”.
Inspect the removed parts for the following
abnormalities:
• Distortion of the steering stem
• Bearing wear or damage
• Abnormal bearing noise
• Race wear or damage
• Bearing lower seal damage
• Rubber seat and damper bushing wear or damage
• Inspect the steering damper body, bearing dust seal
and oil seal for damage and oil leaking.
• Move the steering damper rod by hand to inspect for a
smooth movement.
If any abnormal points are found, replace defective parts
with new ones.
Steering System Inspection
B823H16206008
Refer to “Steering System Inspection in Section 0B
(Page 0B-20)”.
Steering Stem Bearing Removal and Installation
B823H16206009
Removal
1) Remove the steering stem lower bracket. Refer to
“Steering Removal and Installation (Page 6B-7)”.
2) Remove the dust seal cover (1), dust seal (2),
steering stem upper bearing inner race (3) and
bearing (4).
3) Remove the steering stem lower bearing and inner
race using a chisel.
4) Remove the steering stem upper and lower bearing
races using the special tools.
Special tool
(A): 09941–54911 (Bearing outer race
remover)
(B): 09941–74911 (Steering bearing
installer)
I823H1620021-01
I823H1620022-01
I823H1620023-01
1
2
3
4
I823H1620024-02
I649G1620033-02
(B)
(A)
I649G1620034-03
