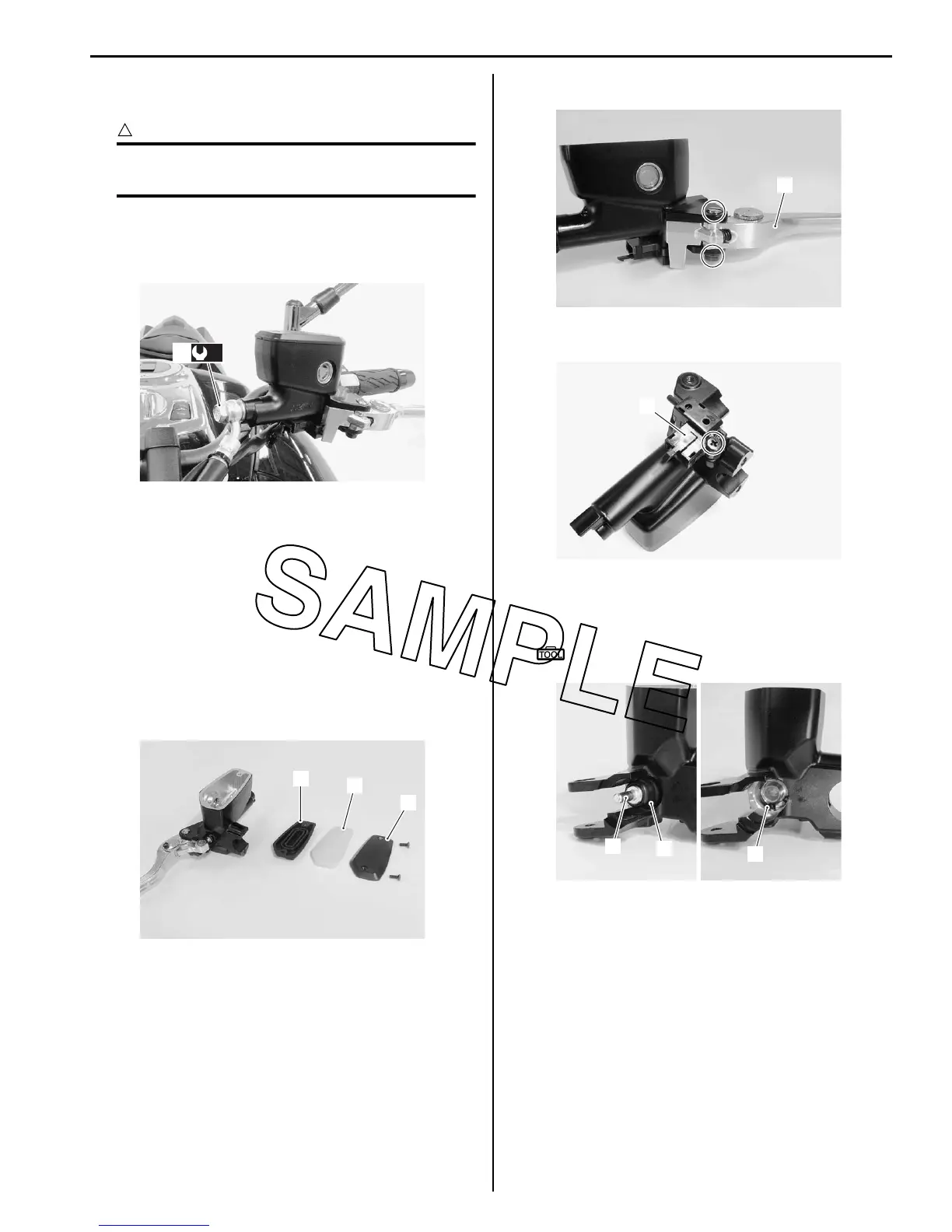

Clutch: 5C-9
• After setting the clutch hose union to the stopper,
tighten the union bolt (3) to the specified torque.
CAUTION
!
The seal washers should be replaced with
new ones to prevent fluid leakage.
Tightening torque
Clutch hose union bolt (b): 23 N·m (2.3 kgf-m,
16.5 lb-ft)
• Bleed air from the clutch system. Refer to “Air
Bleeding from Clutch Fluid Circuit (Page 5C-5)”.
Clutch Master Cylinder / Clutch Lever
Disassembly and Assembly
B823H15306009
Refer to “Clutch Master Cylinder Assembly Removal and
Installation (Page 5C-8)”.
Disassembly
1) Remove the reservoir cap (1), plate (2) and
diaphragm (3).
2) Remove the clutch lever (4).
3) Remove the clutch lever position switch (5).
4) Pull out the push rod (6) and dust boot (7).
5) Remove the snap ring (8).
Special tool
: 09900–06108 (Snap ring pliers)
(b)
3
I823H1530064-01
1
2
3
I823H1530008-01
4
I823H1530009-01
5
I823H1530010-01
6
7
8
I823H1530011-01
