Front Suspension: 2B-2
Front Fork Removal and Installation
B823H12206002
NOTE
The right and left front forks are installed
symmetrically and therefore the removal
procedure for one side is the same as that for
the other side.
Removal
1) Remove the front wheel assembly. Refer to “Front
Wheel Assembly Removal and Installation in Section
2D (Page 2D-4)”.
CAUTION
!
• Make sure that the motorcycle is
supported securely.
• Do not operate the front brake lever with
the front wheel removed.

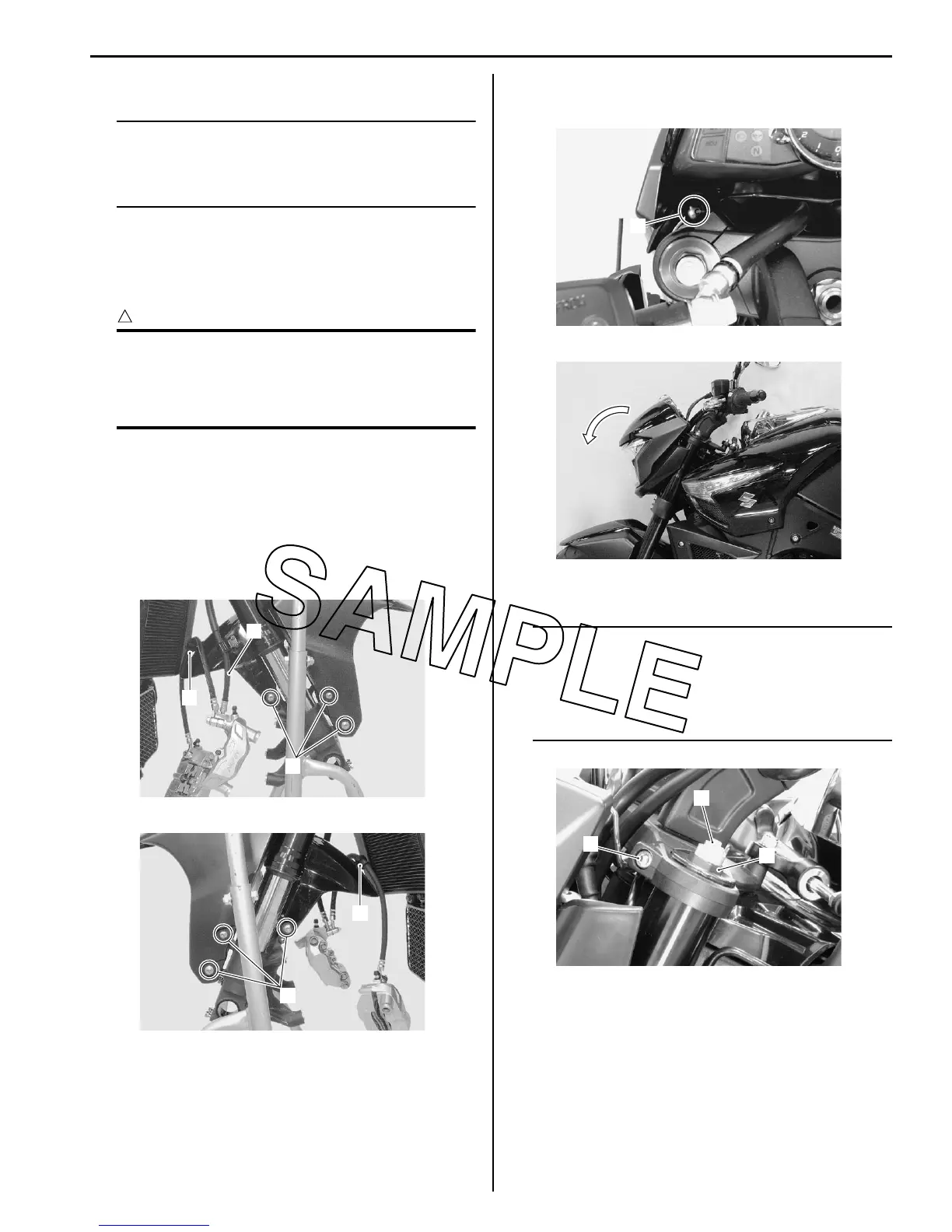

2) Disconnect the brake hose clamp (1) from the front
fender.
3) Disconnect the brake hose (2) from the brake hose
clamp.
4) Remove the front fender by removing the bolts (3),
left and right.
5) Remove the reflex reflector for E-03, 24, 28, 33.
6) After removing of the headlight cover upper screws
(4), move the headlight assembly forward.
7) Loose the front fork upper clamp bolt (5).
NOTE
• Slightly loosen the front fork cap bolt (6) to
facilitate later disassembly.
• Be sure to adjust the rebound damping
force adjuster (7) to the softest position
before removing the front fork.
1
2
3
I823H1220082-01
3
1
I823H1220083-01
4
I823H1220039-01
I823H1220040-01
5
7
6
I823H1220041-01
