1G-3 Fuel System:
Schematic and Routing Diagram

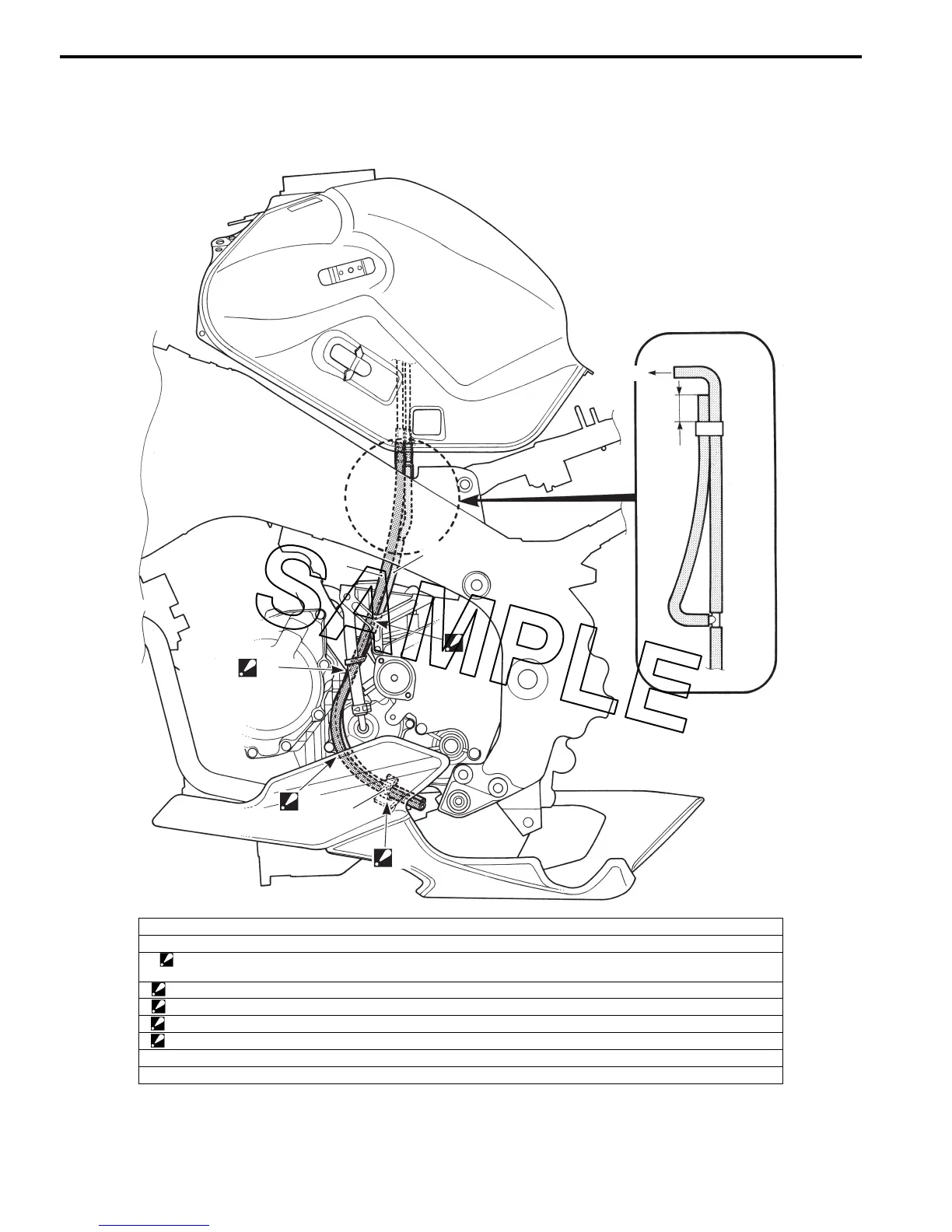

Fuel Tank Drain Hose and Breather Hose Routing Diagram
B823H11702001
1
2
“A”
“B”
“D”
3
“C”
“a”
“E”
I823H1170038-02
1. Fuel tank drain hose
2. Fuel tank breather hose
3. Hose clamp
: Clamp the hoses at white marking point.
“A”: Pass the fuel tank drain hose and fuel tank breather hose behind of the engine sprocket cover bracket.
“B”: Pass the fuel tank drain hose and fuel tank breather hose behind of the water hose.
“C”: Pass the fuel tank drain hose and fuel tank breather hose ahead of the water hose.
“D”: Align the white paint mark on the hoses with the hose clamp.
“E”: To the fuel tank
“a”: 20 mm (0.18 in)
