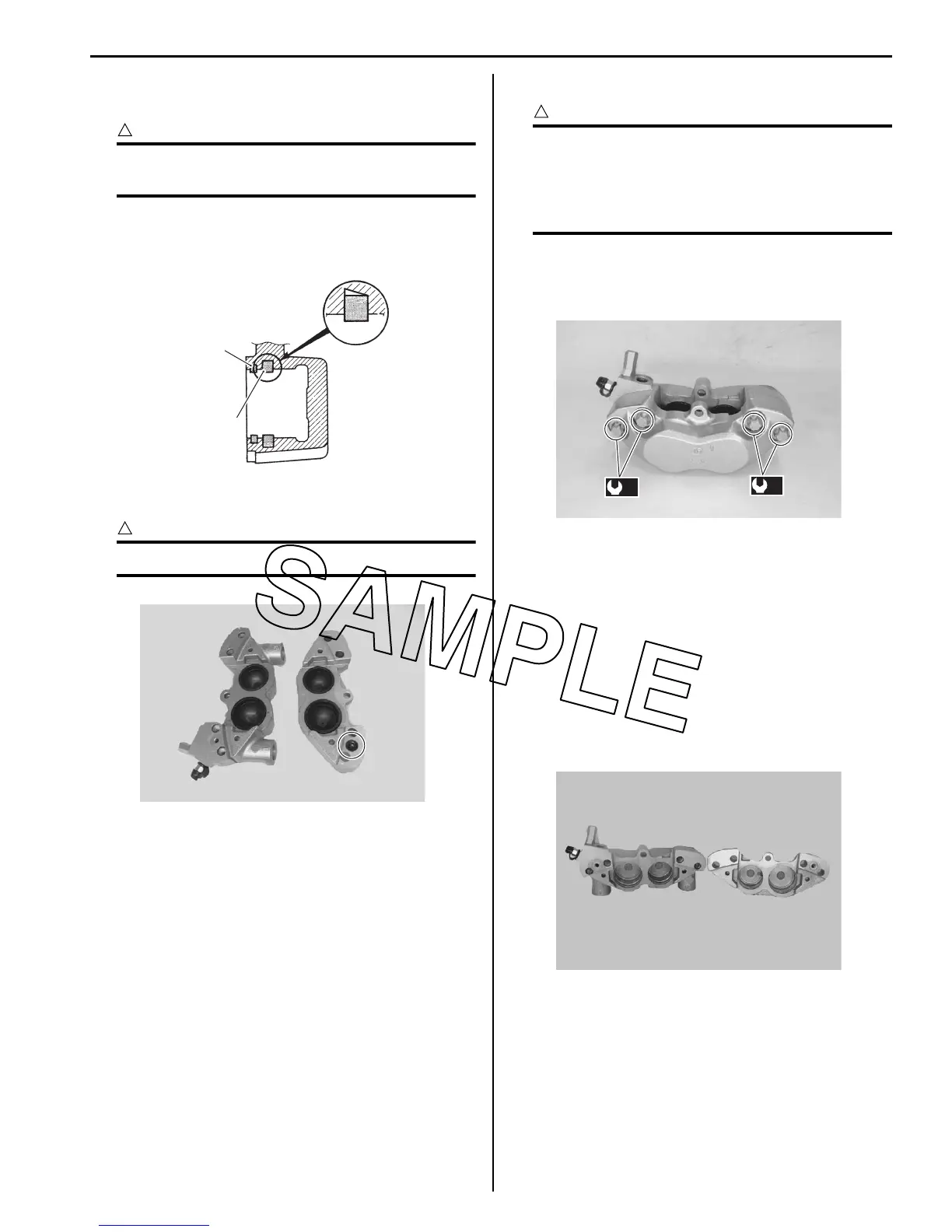

Front Brakes: 4B-6
• Apply the brake fluid to piston seals (1) and dust seals
(2).
CAUTION
!
Replace the piston seals (1) and dust seals
(2) with new ones.
BF: Brake fluid (DOT 4)
• Install the piston seals as shown in the figure.
• Install a new O-ring and reassemble caliper halves.
CAUTION
!
Replace the O-ring with a new one.
• Temporarily tighten the brake caliper housing bolts.
CAUTION
!
After installing the brake caliper to the front
fork, tighten the brake caliper housing bolts
to the specified torque. Refer to “Front Brake
Caliper Removal and Installation (Page 4B-
3)”.
Tightening torque
Front brake caliper housing bolt (a): 27 N·m (2.7
kgf-m, 19.5 lb-ft)
• Install the brake pads. Refer to “Front Brake Pad
Replacement (Page 4B-2)”.
Front Brake Caliper Parts Inspection
B823H14206006
Refer to “Front Brake Caliper Disassembly and
Assembly (Page 4B-4)”.
Brake Caliper Cylinder
Inspect the brake caliper cylinder wall for nicks,
scratches or other damage. If any damage is found,
replace the caliper with a new one.
1
2
I649G1420013-02
I823H1420015-01
(a)
(a)
I823H1420016-02
I823H1420017-01
To Next Page
