Suzuki GSX1300BK B-King User Manual

5C-14 Clutch:

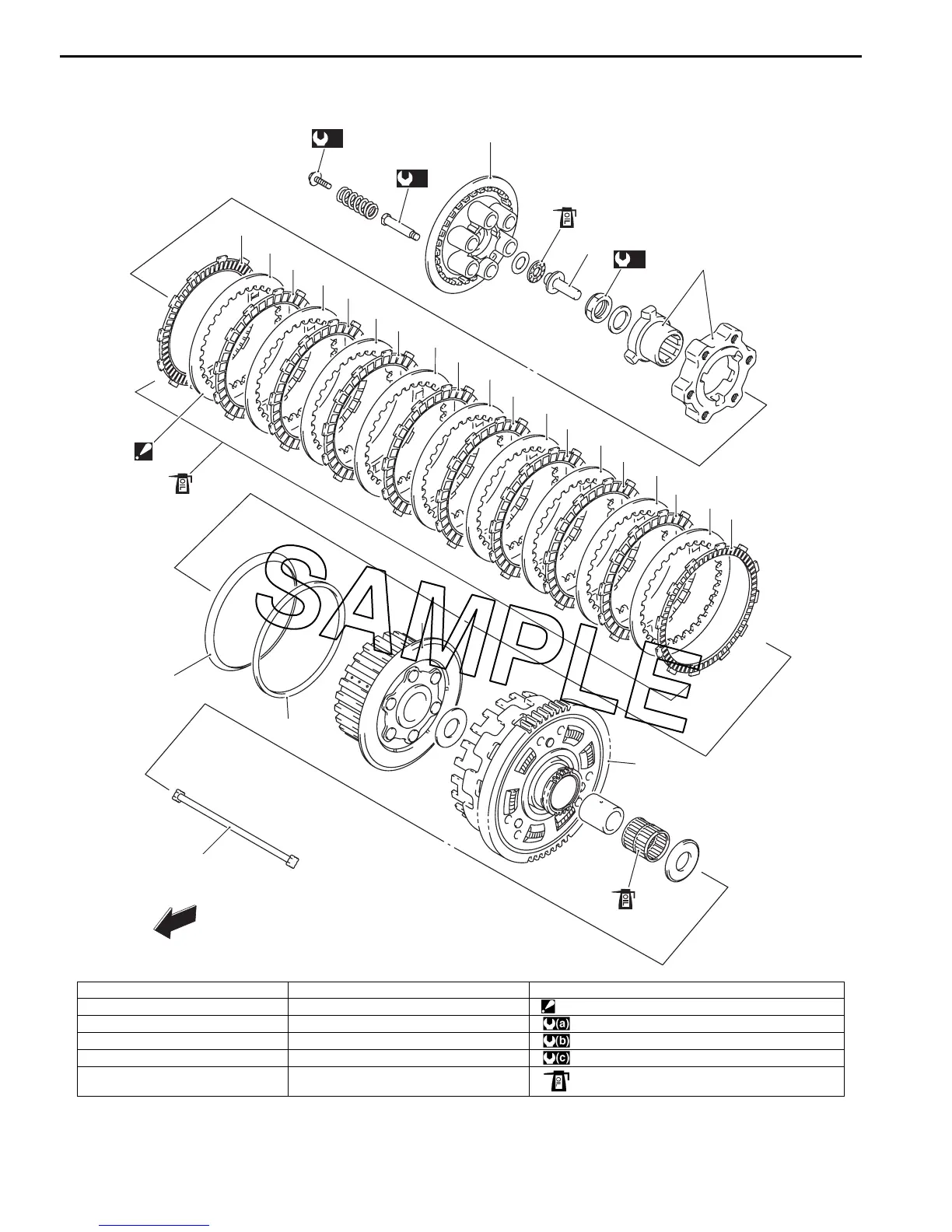

Clutch Components
B823H15306015
(c)
(b)
1
2
3
(a)
13
12
11
10
9
5
7
6
7
6
7
8
6
6
7/8
6
6
7/8
7/8
7
7
6
6
4
FWD
FW
D
“A”
I823H1530059-06
1. Clutch pressure plate 7. No. 1 driven plate (8 – 5 pcs.) 13. Push rod
2. Clutch push piece 8. No. 2 driven plate (1 – 4 pcs.) “A”: The No. 1 and No. 2 driven plates are 9 in total.
3. Clutch lifter drive/driven cam set 9. Spring washer : 150 Nm (15.0 kgf-m, 108.5 lb-ft)
4. No. 2 drive plate 10. Spring washer seat : 23 Nm (2.3 kgf-m, 16.5 lb-ft)
5. No. 3 drive plate 11. Clutch sleeve hub : 10 Nm (1.0 kgf-m, 7.0 lb-ft)
6. No. 1 drive plate 12. Primary driven gear assembly : Apply engine oil.
