Manual Transmission: 5B-17
Gearshift Linkage Inspection
B823H15206015
Refer to “Gearshift Shaft / Gearshift Cam Plate Removal
and Installation (Page 5B-16)”.

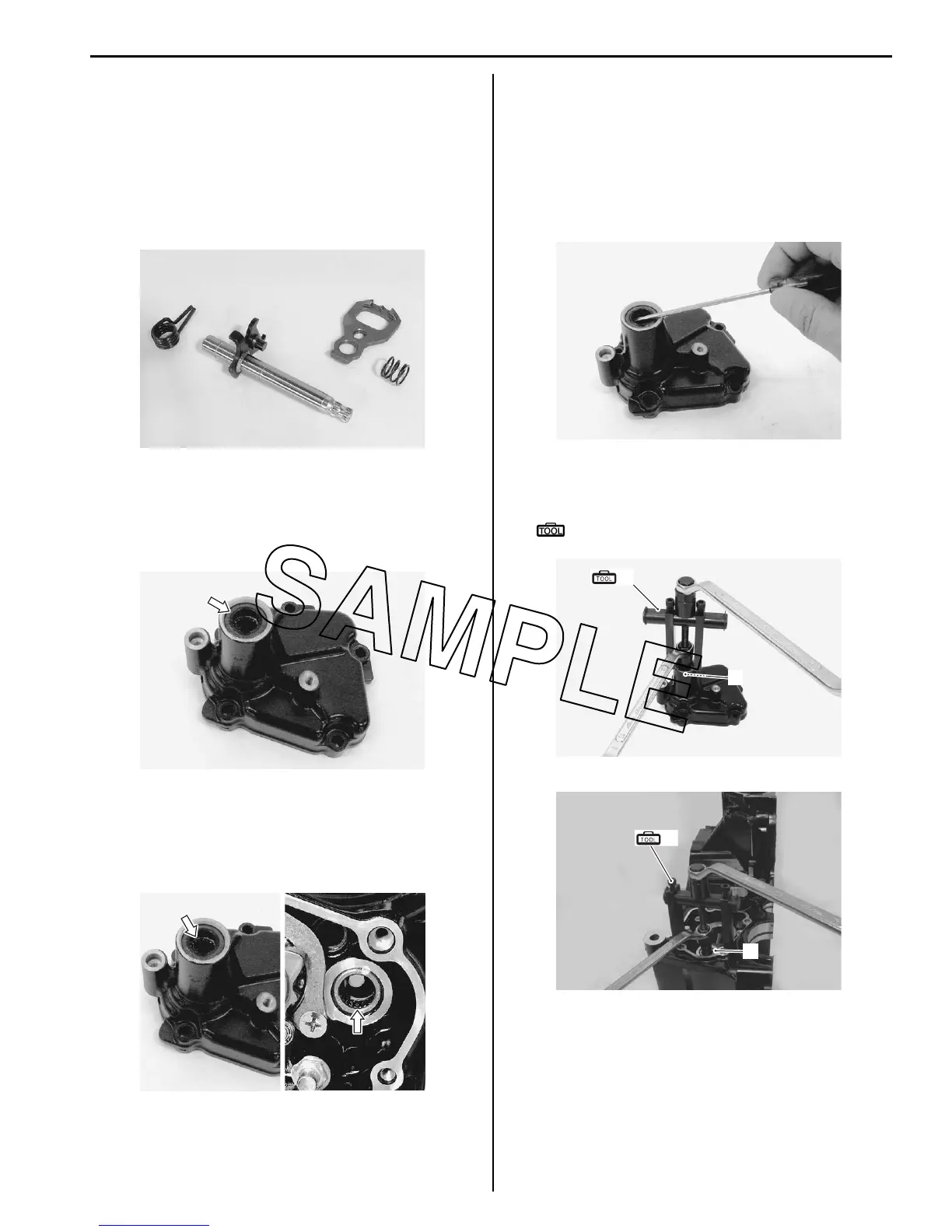

Gearshift Shaft
Check the gearshift shaft for bend or wear.
Check the return spring for damage or fatigue.
If any defects are found, replace the defective part(-s).
Gearshift Shaft Oil Seal
Inspect the gearshift shaft oil seal lip for damage or
wear. If any defect is found, replace the oil seal with a
new one.
Gearshift Shaft Bearing
Inspect the gearshift shaft bearings for abnormal noise
and smooth rotation. Replace the bearing if there is
anything unusual.
Gearshift Shaft Oil Seal / Bearing Removal and
Installation
B823H15206016
Removal
1) Remove the gearshift shaft. Refer to “Gearshift Shaft
/ Gearshift Cam Plate Removal and Installation
(Page 5B-16)”.
2) Remove the gearshift shaft oil seal.
3) Remove the bearings (1) and (2) with the special
tools.
Special tool
(A): 09921–20240 (Bearing remover set)
I823H1520041-01
I823H1520080-01
I823H1520081-01
I823H1520082-01
(A)
1
I823H1520083-04
(A)
2
I823H1520056-01
