Ignition System: 1H-1
Engine
Ignition System
General Description
Immobilizer Description (For E-02, 19, 24)
B823H11801001
The immobilizer, an anti-theft system, is installed as a
standard equipment.
The immobilizer verifies that the key ID agrees with ECM
ID by means of radio communication through the
immobilizer antenna. When the ID agreement is verified,
the system makes the engine ready to start.
Operation
When the ignition switch is turned ON with the engine
stop switch in ON, the immobi-antenna and ECM are
powered ON.
The ECM transmits a signal to the transponder through
the immobi-antenna in order to make comparison
between the key ID and ECM ID.
With the signal received, the transponder transmits the
key ID signal to ECM so that ECM can make comparison
with its own ID, and if it matches, the engine is made
ready to start.

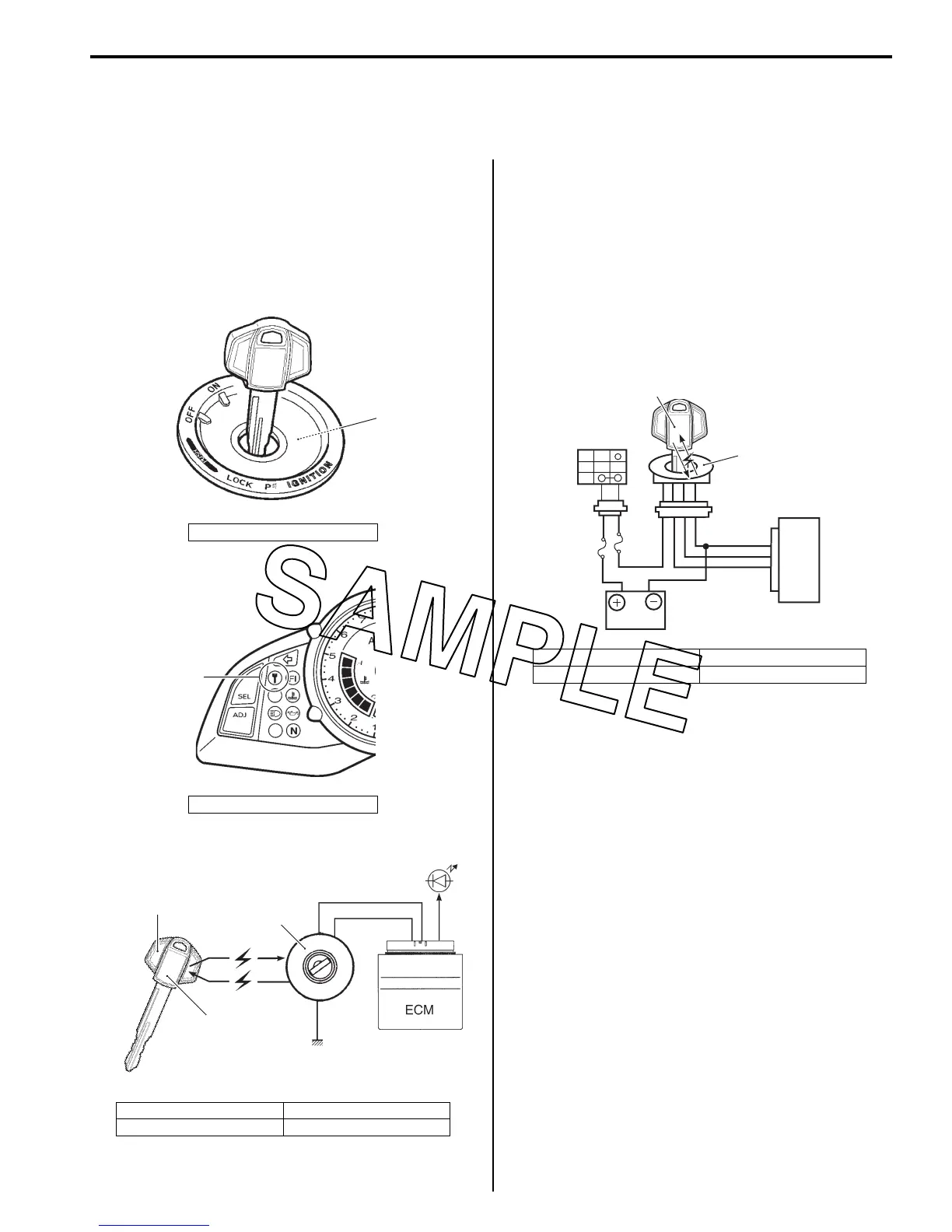

1. Immobilizer antenna
2. Indicator light
1. Immobilizer antenna 3. Transponder
2. Indicator light 4. ID
1
I823H1180001-01
2
I823H1180002-01
3
4
1
2
I823H1180003-01
1. Immobilizer antenna 3. Ignition switch
2. Transponder 4. ECM
R
OFF
ON
3
2
1
4
I823H1180004-01
