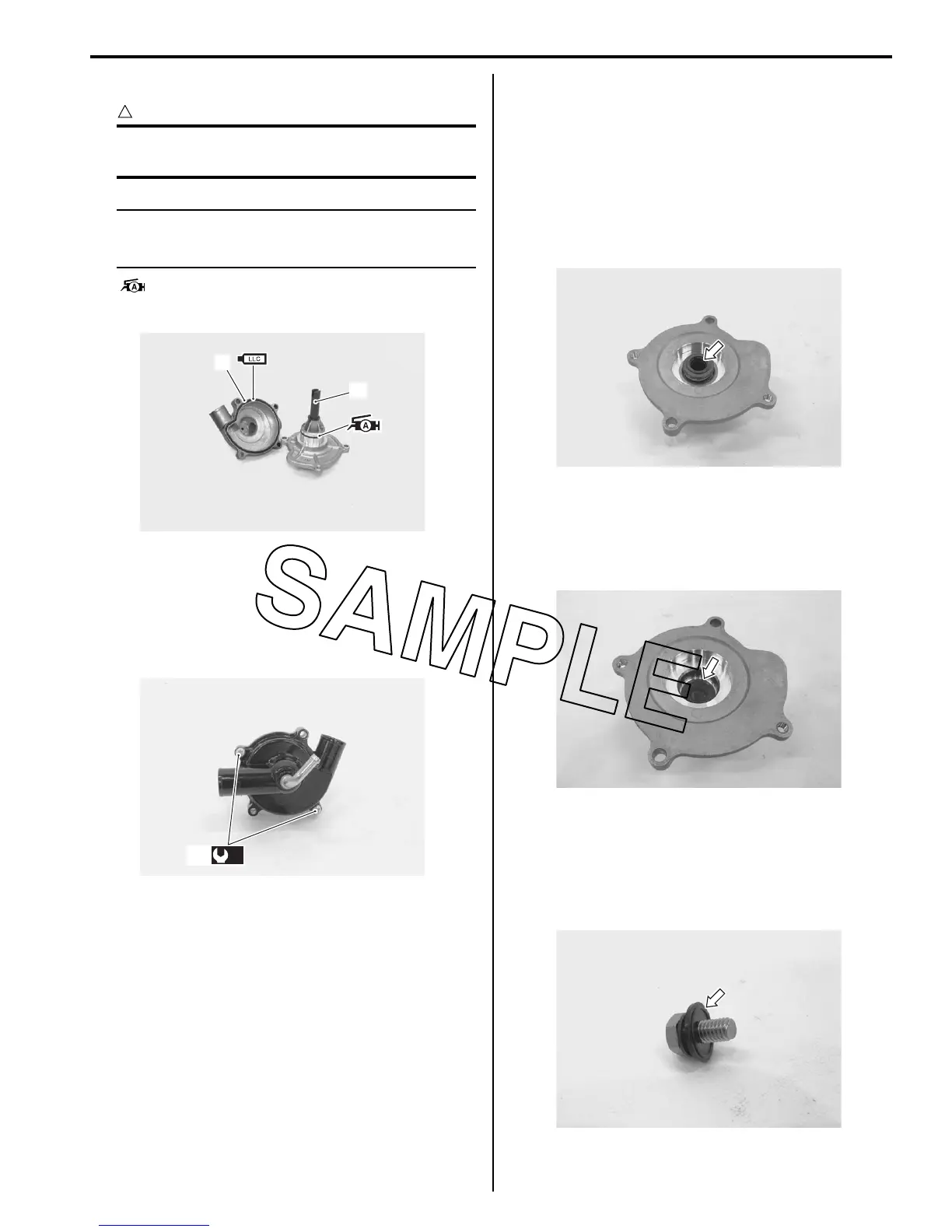

Engine Cooling System: 1F-17
10) Install new O-ring (9) and (10).
CAUTION
!
Use new O-ring to prevent engine coolant or
oil leakage.
NOTE
• Apply engine coolant to the O-ring (9).
• Apply grease to the O-ring (10).
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
11) Fit the water pump case and tighten the water pump
case screws (11) to the specified torque.
Tightening torque
Water pump case screw (b): 6 N·m (0.6 kgf-m,
4.5 lb-ft)
Water Pump Related Parts Inspection
B823H11606019
Refer to “Water Pump Disassembly and Assembly
(Page 1F-14)”.
Mechanical Seal
Visually inspect the mechanical seal for damage, with
particular attention given to the sealing face.
Replace the mechanical seal that shows indications of
leakage.
Oil Seal
Visually inspect the oil seal for damage, with particular
attention given to the lip.
Replace the oil seal that shows indications of leakage.
Seal Washer
Visually inspect the seal washer for damage, with
particular attention given to the sealing face.
Replace the seal washer that shows indications of
leakage.
9
10
I823H1160047-03
(b)
11
I823H1160048-01
I823H1160049-01
I823H1160050-01
I823H1160051-01
