Maintenance and Lubrication: 0B-22
Compression Pressure Check
B823H10206025
Refer to “Compression Pressure Check in Section 1D
(Page 1D-3)”.
Oil Pressure Check
B823H10206026
Refer to “Oil Pressure Check in Section 1E (Page 1E-
5)”.
SDS check
B823H10206027
Refer to “SDS Check in Section 1A (Page 1A-17)”.

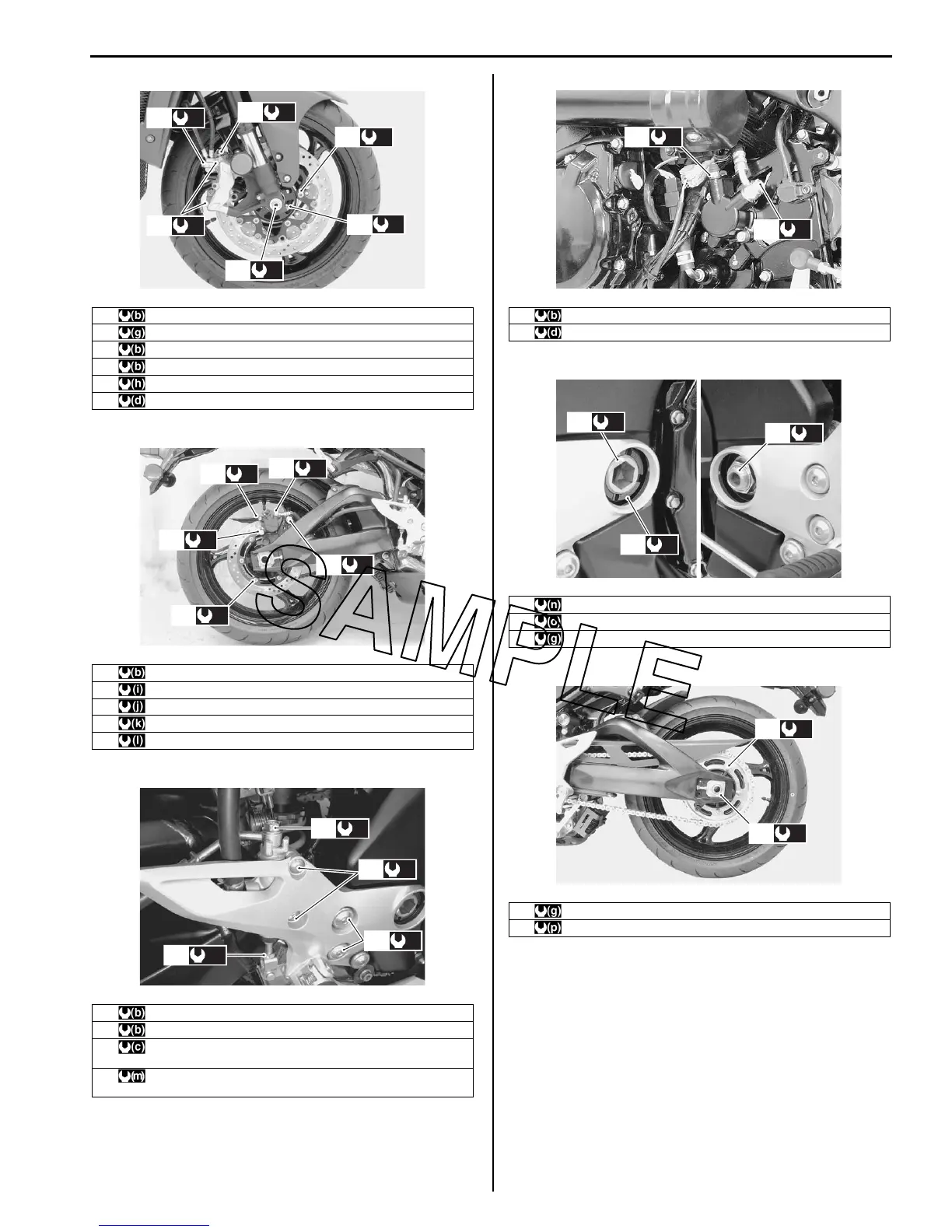

15 Union bolt (Front brake) 23 Nm (2.3 kgf-m, 16.5 lb-ft)
16 Front axle bolt 100 Nm (10.0 kgf-m, 72.5 lb-ft)
17 Brake disc bolt (Front) 23 Nm (2.3 kgf-m, 16.5 lb-ft)
18 Front axle pinch bolt 23 Nm (2.3 kgf-m, 16.5 lb-ft)
19 Front brake caliper mounting bolt 39 Nm (3.9 kgf-m, 28.0 lb-ft)
20 Air bleeder valve (Front brake) 6.0 Nm (0.6 kgf-m, 4.5 lb-ft)
21 Union bolt (Rear brake) 23 Nm (2.3 kgf-m, 16.5 lb-ft)
22 Air bleeder valve (Rear brake) 7.5 Nm (0.75 kgf-m, 5.5 lb-ft)
23 Brake disc bolt (Rear) 35 Nm (3.5 kgf-m, 25.5 lb-ft)
24 Front brake caliper mounting bolt 17 Nm (1.7 kgf-m, 12.5 lb-ft)
25 Front brake caliper sliding pin 33 Nm (3.3 kgf-m, 24.0 lb-ft)
26 Union bolt 23 Nm (2.3 kgf-m, 16.5 lb-ft)
27 Front footrest bolt 23 Nm (2.3 kgf-m, 16.5 lb-ft)
28 Rear brake master cylinder mounting bolt 10 Nm (1.0 kgf-m, 7.0
lb-ft)
29 Rear brake master cylinder rod lock-nut 18 Nm (1.8 kgf-m, 13.0
lb-ft)
(h)
19
(b)
15
(g)
16
(b)
17
(b)
18
(d)
20
I823H1020056-01
(b)
21
(i)
22
(j)
23
(k)
24
(l)
25
I823H1020057-01
(b)
26
(b)
27
(c)
28
(m)
29
I823H1020058-01
30 Union bolt (clutch) 23 Nm (2.3 kgf-m, 16.5 lb-ft)
31 Air bleeder valve (clutch) 6 Nm (0.6 kgf-m, 4.5 lb-ft)
32 Swingarm pivot shaft 15 Nm (1.5 kgf-m, 11.0 lb-ft)
33 Swingarm pivot lock-nut 90 Nm (9.0 kgf-m, 65.0 lb-ft)
34 Swingarm pivot nut 100 Nm (10.0 kgf-m, 72.5 lb-ft)
35 Rear axle nut 100 Nm (10.0 kgf-m, 72.5 lb-ft)
36 Rear sprocket nut 60 Nm (6.0 kgf-m, 43.5 lb-ft)
(b)
30
(d)
31
I823H1020059-01
(g)
34
(n)
32
(o)
33
I823H1020060-02
(g)
35
(p)
36
I823H1020061-01
