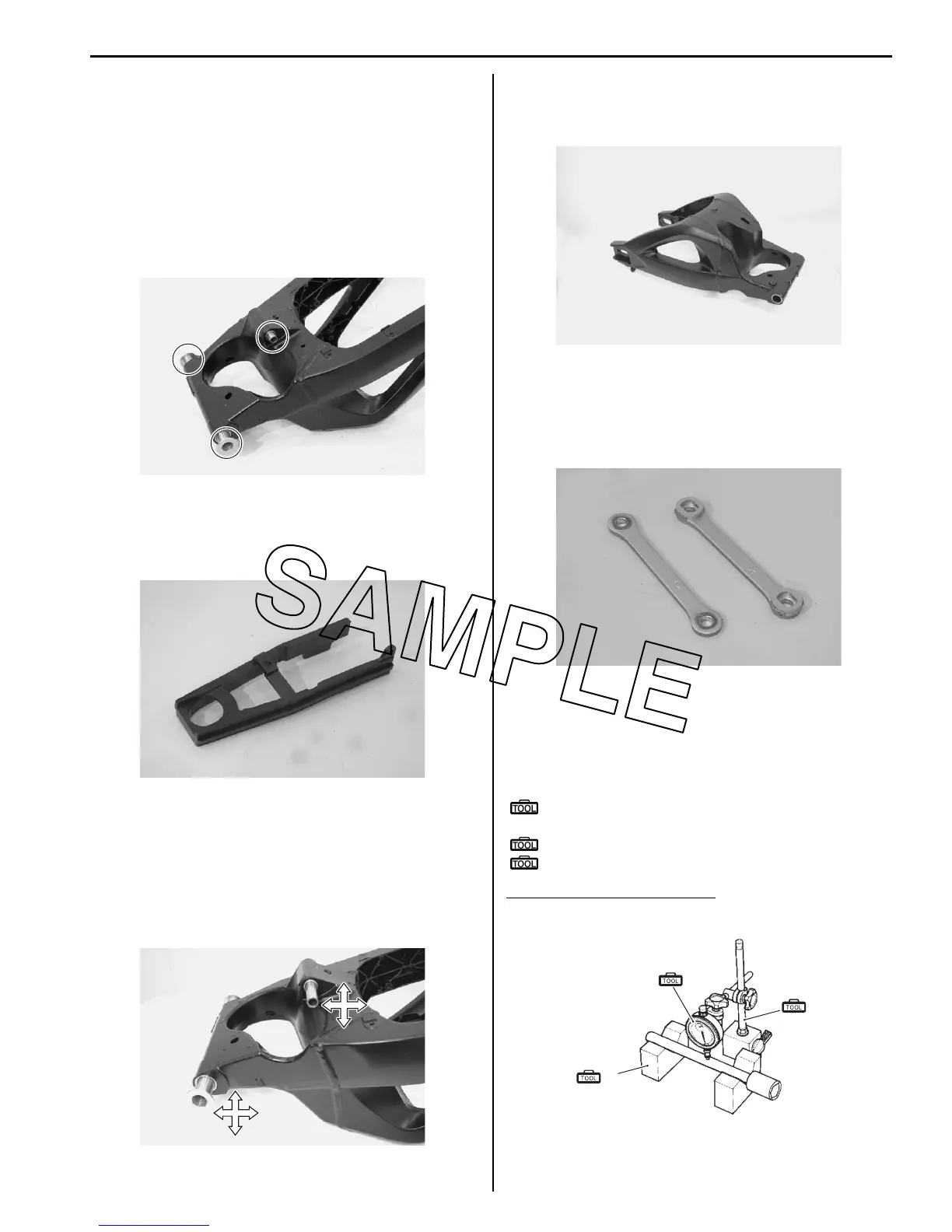

Rear Suspension: 2C-11
Swingarm Related Parts Inspection
B823H12306012
Refer to “Swingarm / Cushion Rod Removal and
Installation (Page 2C-8)”.
Spacers
1) Remove the spacers from the swingarm.
2) Inspect the spacers for wear and damage. If any
defects are found, replace the spacers with new
ones.
Chain Buffer
Inspect the chain buffer for wear and damage. If any
defect is found, replace the chain buffer with a new one.
Swingarm Bearing and Cushion Rod Bearing
1) Insert the spacers into bearings.
2) Check the play by moving the spacers up and down.
If excessive play is noted, replace the bearing with a
new one. Refer to “Swingarm Bearing Removal and
Installation (Page 2C-12)”.
Swingarm
Inspect the swingarm for damage. If any defect is found,
replace the swingarm with a new one.
Cushion Rod
Inspect the cushion rods for damage and bend. If any
defects are found, replace the cushion rods with new
ones.
Swingarm Pivot Shaft
Measure the swingarm pivot shaft runout using the dial
gauge. If the runout exceeds the service limit, replace
the pivot shaft.
Special tool
(A): 09900–20607 (Dial gauge (1/100 mm, 10
mm))
(B): 09900–20701 (Magnetic stand)
(C): 09900–21304 (V-block (100 mm))
Swingarm pivot shaft runout
Service limit: 0.3 mm (0.01 in)
I823H1230033-02
I823H1230034-01
I823H1230035-01
I823H1230036-01
I823H1230037-01
(A)
(B)
(C)
I823H1230048-01
