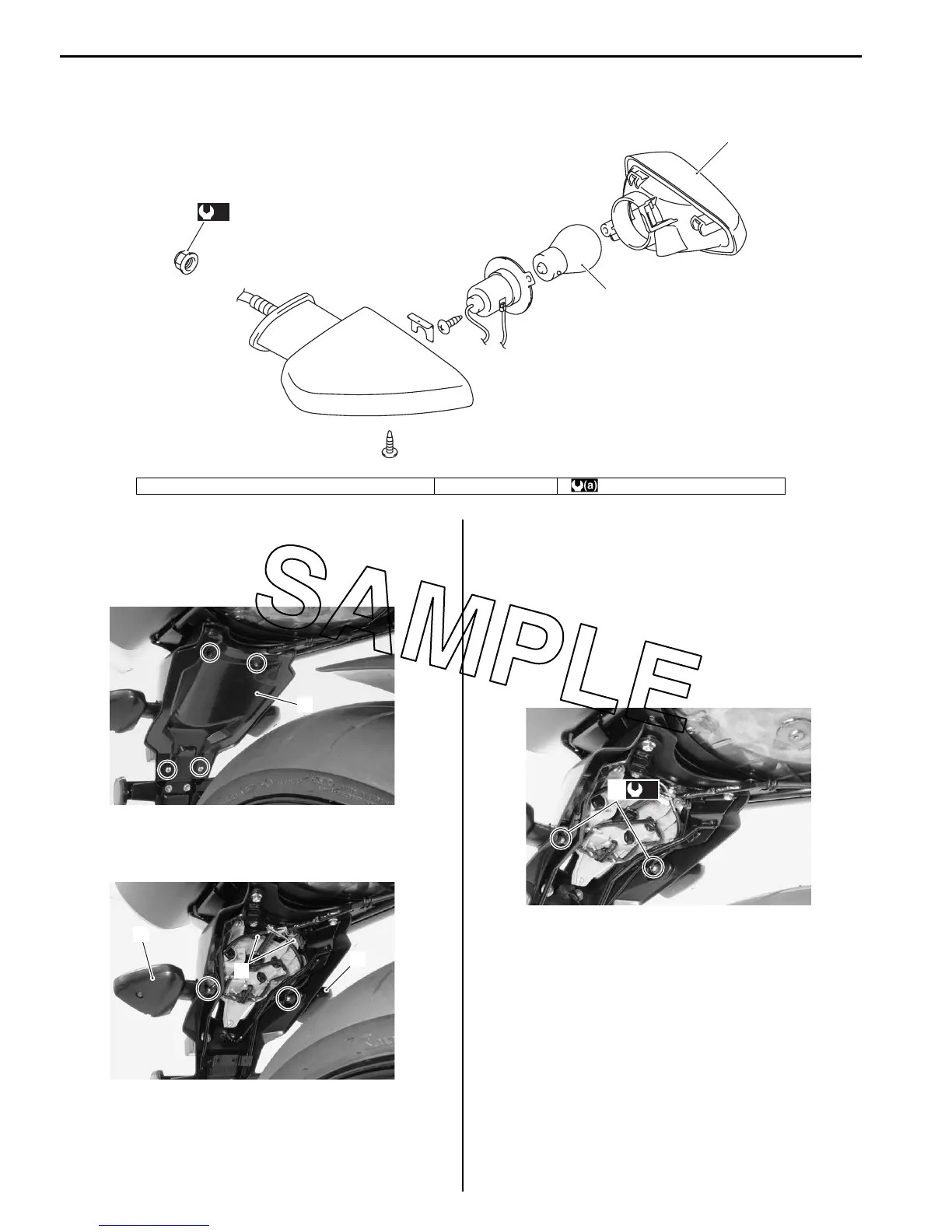

9B-13 Lighting Systems:
Rear Turn Signal Light Components
B823H19206025
Rear Turn Signal Light Removal and Installation
B823H19206014
Removal
1) Remove the rear fender cover (1).
2) Disconnect the rear turn signal light couplers (2).
3) Remove the rear turn signal lights (3).
Installation
Install the rear turn signal light in the reverse order of
removal. Pay attention to the following point:
• Tighten the rear turn signal light mounting nut (1) to
the specified torque.
Tightening torque
Rear turn signal light mounting nut (a): 7 N·m (0.7
kgf-m, 5.0 lb-ft)
(a)
1
2
I823H1920033-01
1. Rear turn signal light bulb (12 V 21 W x 2) 2. Lens : 7.0 Nm (0.7 kgf-m, 5.0 lb-ft)
1
I823H1920034-01
3
3
2
I823H1920035-01
(a)
1
I823H1920036-02
