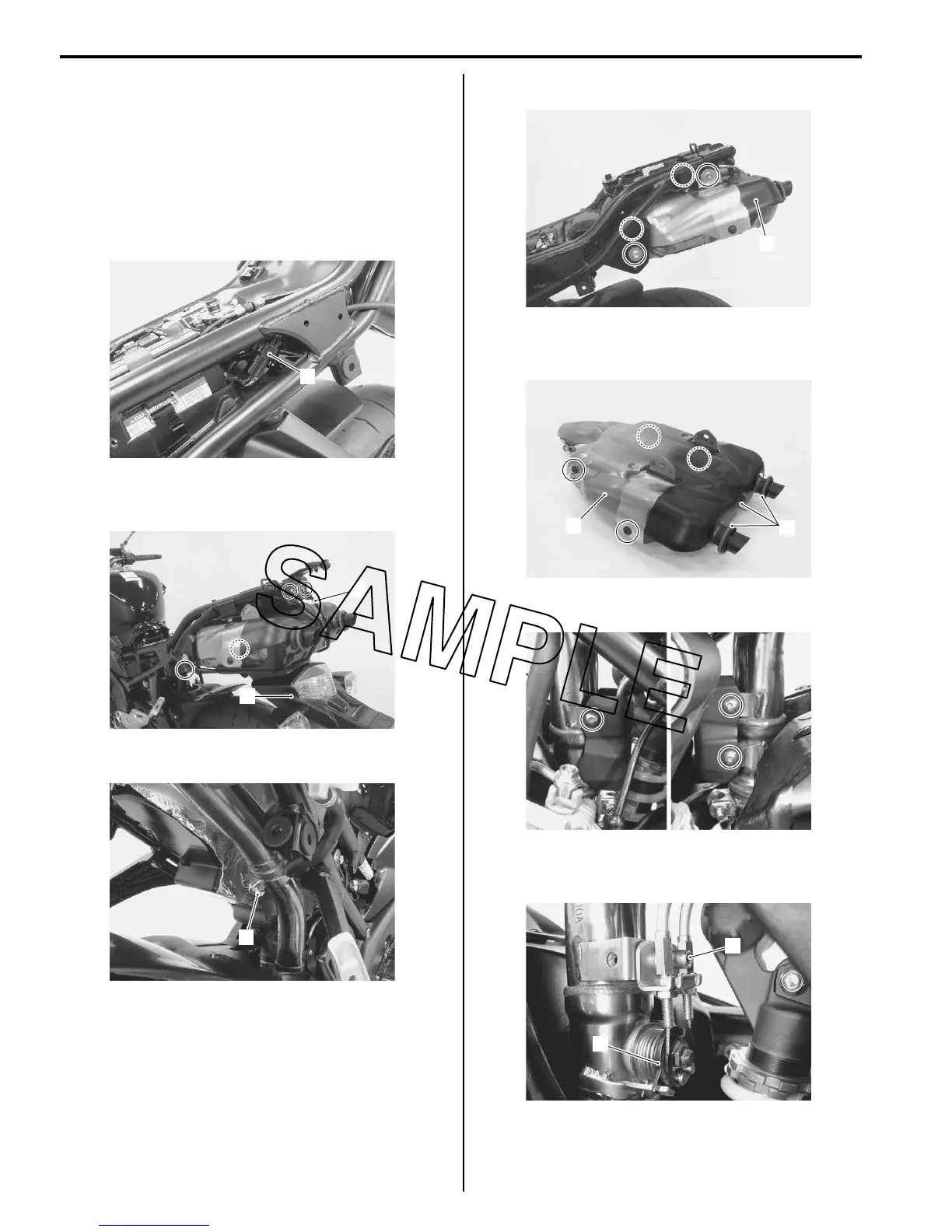

1K-12 Exhaust System:
Muffler / Muffler Joint / Exhaust Pipe Removal
and Installation
B823H11B06002
Removal
1) Remove the frame cover and muffler covers. Refer
to “Exterior Parts Removal and Installation in Section
9D (Page 9D-14)”.
2) Disconnect the taillight/rear turn signal light lead wire
coupler (1).
3) Remove the rear fender (2) along with the bracket
(3).
4) Loosen the muffler connecting bolt (4).
5) Remove the muffler assembly (5).
6) Remove the heat shield plate (6) and O-rings (7)
from the muffler.
7) Remove the EXCV cover.
8) Remove the EXCV cable bracket nut (8) and
disconnect the cables from the EXCV pulley (9).
1
I823H11B0025-01
2
3
I823H11B0026-02
4
I823H11B0027-01
5
I823H11B0028-02
6
7
I823H11B0029-02
I823H11B0030-01
8
9
I823H11B0031-02
To Next Page
