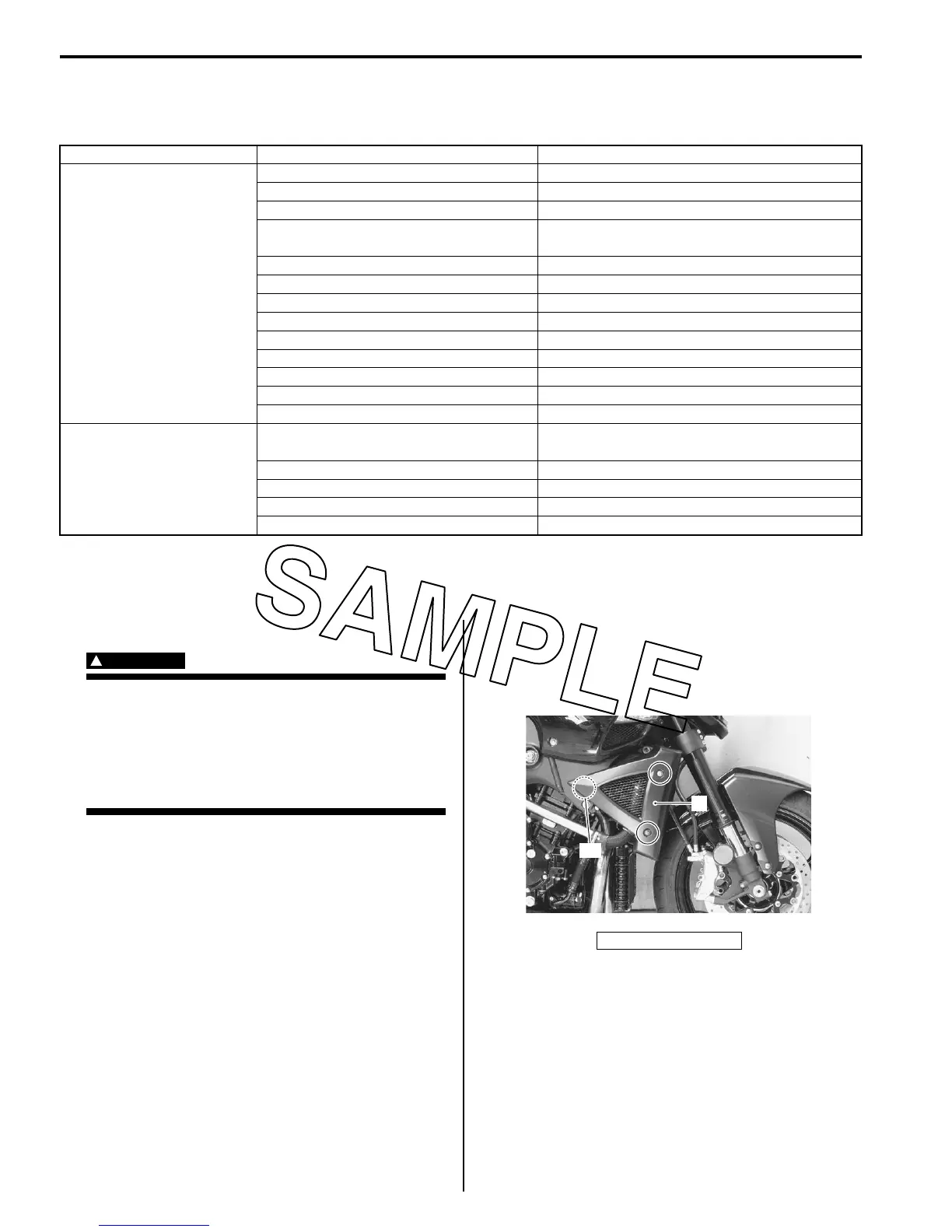

1F-4 Engine Cooling System:
Diagnostic Information and Procedures
Engine Cooling Symptom Diagnosis
B823H11604001
Repair Instructions
Cooling Circuit Inspection
B823H11606001
WARNING
!
• Do not open the radiator cap when the
engine is hot, as you may be injured by
escaping hot liquid or vapor.
• When removing the radiator cap tester, put
a rag on the filler to prevent the engine
coolant from spraying out.
Inspect the cooling circuit in the following procedures:
1) Remove the right frame body cover (1). Refer to
“Exterior Parts Removal and Installation in Section
9D (Page 9D-14)”.
2) Remove the radiator cap (2) and connect the
radiator tester (3) to the filler.
Condition Possible cause Correction / Reference Item
Engine overheats Not enough engine coolant. Add engine coolant.
Radiator core clogged with dirt or scale. Clean.
Faulty cooling fan. Repair or replace.
Defective cooling fan relay, or open-or-
short circuited.
Repair or replace.
Clogged water passage. Clean.
Air trapped in the cooling circuit. Bleed air.
Defective water pump. Replace.
Use of incorrect engine coolant. Replace.
Defective thermostat. Replace.
Defective ECT sensor. Replace.
Defective ECM. Replace.
Damaged ISC valve. Replace.
ISC bad learning. Reset learned value.
Engine over cools Defective cooling fan relay, or open-or-
short circuited.
Repair or replace.
Extremely cold weather. Put on radiator cover.
Defective thermostat. Replace.
Defective ECT sensor. Replace.
Defective ECM. Replace.
“A”: Hooking point
1
“A”
I823H1160003-01
